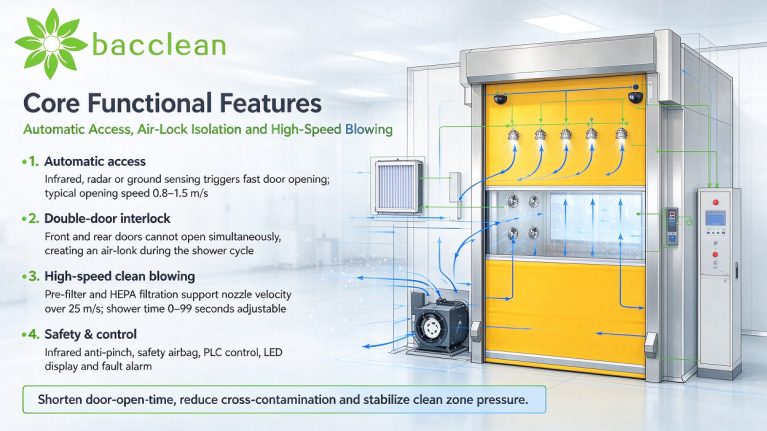

Core Functional Features
Efficient Automatic Access

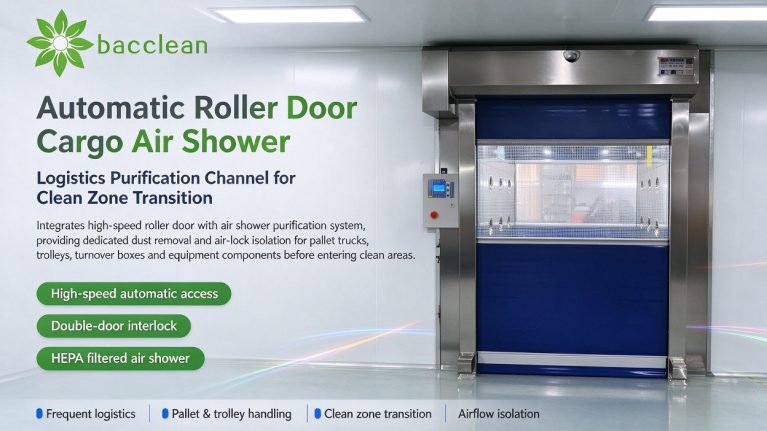

Automatic roller door cargo air showers are usually equipped with infrared sensors, radar sensors, ground induction coils or remote control for door activation. The door automatically rises when goods arrive at the entrance; it closes automatically after goods enter and then the air shower starts. Once the air shower cycle completes, the exit door unlocks and opens automatically. The high-speed roller door opens at 0.8～1.5 m/s and closes at 0.5～1.0 m/s. This greatly cuts waiting time for door operation and reduces air exchange between clean and non-clean areas.
Double-door Interlock & Air-lock Isolation
The front and rear doors of the equipment adopt electronic interlock control. Under normal operating conditions, both doors cannot open simultaneously. During the air shower cycle, both doors remain locked. The exit door can only be unlocked after the air shower finishes and the internal airflow stabilizes. It acts as an air lock to prevent unpurified air from flowing directly into the clean area.
High-speed Clean Air Blowing
The fan draws in ambient air. Large particles such as hair and fibers are intercepted by the pre-filter first, then the air passes through the HEPA filter for fine purification to achieve high cleanliness of the blowing airflow. The nozzles are mostly adjustable stainless steel types. The air velocity at the nozzle outlet can reach over 25 m/s. The air shower duration is adjustable within the range of 0～99 seconds, commonly set between 20～60 seconds for routine operation.
Dust Sealing & Safety Protection
The PVC high-speed roller door delivers good sealing performance when fully closed. Brush sealing strips and bottom door sealing strips can be matched to reduce air leakage. The door body is generally fitted with infrared anti-pinch sensors, bottom safety airbags or pressure wave sensors. It will automatically rebound or stop closing upon collision with goods to minimize impact damage.
Flexible Structural Adaptability
The channel dimension of the cargo air shower can be customized according to the passing requirements of trolleys, pallets, turnover boxes or forklifts. Some models adopt floorless or low-threshold design to facilitate passage of large and heavy goods. The cabinet material options include cold-rolled steel with powder coating, 201 stainless steel and 304 stainless steel. 304 stainless steel is the preferred option for pharmaceutical, food, humid environments and scenarios with high corrosion resistance requirements.
Intelligent Control & Optional Expansion Modules
The control system is mostly PLC-based, equipped with LED display, voice prompt, door magnetic feedback and other functions. It realizes automatic door opening, automatic air shower, automatic unlocking and fault alarm. Optional modules such as UV disinfection, pressure difference monitoring, variable frequency fans and data recording can be added according to site requirements.
Main Application Scenarios
Electronics & Semiconductor Industry
Suitable for dedusting electronic components, PCB boards, optical parts, precision fixtures and turnover boxes before they enter the clean area. Electronic workshops feature high logistics frequency. Automatic roller doors reduce door opening waiting time and lower the risk of dust entering clean areas with air turbulence.
Pharmaceutical & Medical Device Industry
Suitable for transfer of raw and auxiliary material packaging, tools, equipment accessories and semi-finished products. Material and personnel flow separation is strictly required in pharmaceutical clean workshops. The cargo air shower serves as a purification buffer facility before materials enter the clean zone for GMP site management. Note that it is only used for particle and dust control and cannot replace biosafety cabinets or negative pressure weighing booths for high-risk biological protection.
Food & Beverage Processing Industry
Suitable for purification of packaging materials, turnover baskets, tools and de-packaged materials before entering the clean packaging zone. Food workshops usually operate under relatively high humidity. Corrosion-resistant and easy-to-clean stainless steel structures are preferred for equipment material selection.
Logistics Warehousing & Cold Chain Environments
Suitable for high-volume material transfer channels and continuous pallet passing scenarios. Some high-speed roller door cargo air showers can adapt to low-temperature or large temperature difference environments, reducing condensation risk, energy consumption and pollution caused by air convection.
Precision Machinery, Cosmetics, Printing and Other Industries
Suitable for dedusting parts, packaging materials, molds and turnover tools with high surface cleanliness requirements before entering clean assembly or packaging zones.
Selection & Operation Recommendations
Determine the logistics mode first during equipment selection. If trolleys and turnover boxes are the main transport carriers, the cargo air shower can be designed with standard dimensions. If forklifts need to drive inside, sufficient width, height and ground load capacity must be reserved, and floorless design or reinforced ground structure should be considered. Higher cleanroom classes usually require higher air shower velocity and full nozzle coverage. Class 100 and Class 1000 scenarios are recommended to adopt multi-sided blowing on both sides and top. Class 100,000 scenarios can select two-sided or three-sided blowing based on material cleanliness requirements.
In daily operation, obvious surface dust and loose debris on outer packaging should be removed before materials enter. Avoid stacking goods too high inside the cargo air shower, which may block nozzles and return air vents. Pre-filters need regular cleaning, while HEPA filters should be replaced according to air velocity, pressure differential and leak test results.
A cargo air shower functions as a logistics purification barrier. It cannot replace pass boxes, sterilizers, biosafety cabinets or negative pressure weighing booths. The specific configuration shall be determined by combining the cleanroom class, material characteristics and on-site management requirements.
