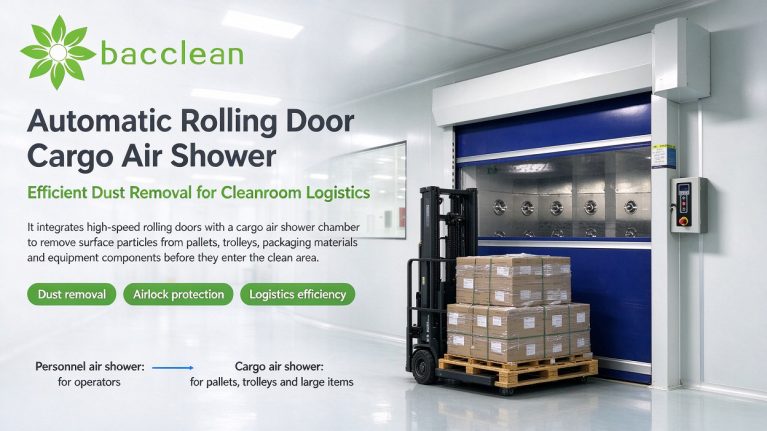

Compared with conventional cargo air showers with manual doors, automatic rolling door cargo air showers are more suitable for scenarios with frequent logistics, high forklift or trolley traffic, reduced manual operation and shorter door opening duration, such as electronic manufacturing, pharmaceutical packaging, food processing, precision instrument and cosmetic production clean workshops.

Why it is called cargo air shower instead of personnel air shower

Personnel air showers and cargo air showers share similar working principles, which use high-speed clean airflow to blow off surface dust, but they serve different objects. Personnel air showers are designed for operators before entering clean areas; cargo air showers are for large items like raw material packages, containers and trolleys.

Cargo air showers normally have wider channels and larger inner space. Some models adopt floorless or low-threshold design to facilitate trolleys, pallet trucks and even forklifts to pass through. On this basis, automatic rolling door cargo air showers further improve logistics efficiency. The door automatically rises when goods arrive; after entering, the door closes and blowing starts; once blowing completes, the exit door unlocks.

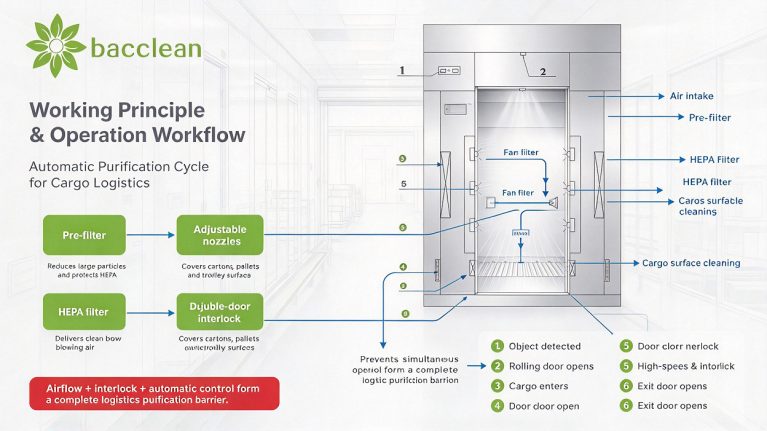

Working Principle of Automatic Rolling Door Cargo Air Shower

When the equipment operates, the fan draws in air. Large dust, fibers and hair are intercepted by pre-filter firstly. Then air passes through HEPA filter to obtain high cleanliness. Clean air is ejected at high speed through multi-angle adjustable nozzles mounted on side panels and top frame to strip dust particles attached to cargo surfaces.

During blowing, the front and rear doors are interlocked and cannot open at the same time, acting as an airlock to prevent direct air convection between clean and non-clean zones. When blowing finishes, the exit rolling door opens automatically for goods to move into clean area, and one full purification cycle completes.

Typical workflow:

1. Goods or trolley arrive at inlet; infrared, radar or geomagnetic sensor detects the object.

2. Automatic rolling door opens quickly, goods drive into the cargo shower chamber.

3. Inlet door closes, double-door interlock activates.

4. Fan starts, high-speed clean air blows over cargo surfaces.

5. After preset blowing duration, exit rolling door opens for goods entering clean area.

6. Exit door closes, equipment returns to standby state.

For goods leaving clean area, some units can be set to pass directly without blowing, subject to on-site process and management requirements.

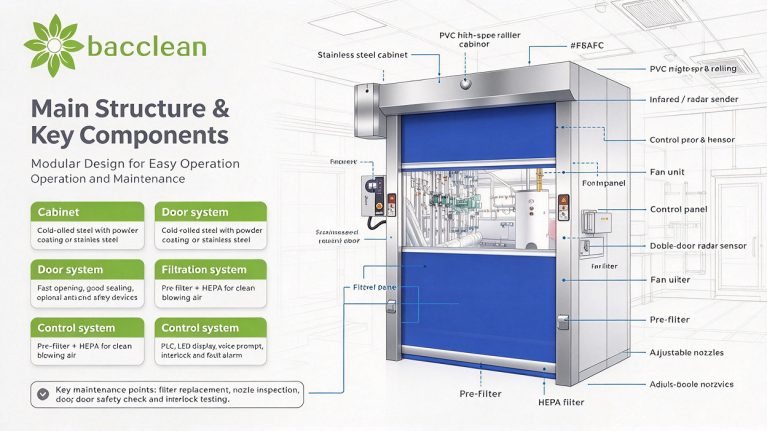

Main Structural Components

The automatic rolling door cargo air shower generally consists of cabinet body, high-speed rolling doors, fan system, filtration system, nozzle system, control system and interlock device.

The cabinet is usually made of cold-rolled steel with powder coating or stainless steel, featuring smooth surface, corrosion resistance and easy cleaning. PVC soft curtain is commonly used for rapid rolling doors, with fast opening/closing speed and good sealing performance. Optional safety accessories include infrared anti-pinch sensor, anti-collision airbag and warning light.

Filtration system adopts pre-filter + HEPA combination. HEPA filter achieves high removal efficiency for 0.3μm particles to guarantee clean blowing airflow. Nozzles are adjustable in angle to cover hard-to-clean areas including side faces of turnover boxes, trolley bottoms and gaps of packaging materials.

PLC control system is widely equipped, together with LED display, voice prompt, infrared induction and door magnetic feedback. It realizes automatic door operation, auto blowing, auto unlocking and fault alarm.

Functions in Clean Workshop

1. Remove surface dust of goods. Outer packages, turnover boxes and trolleys carry dust during transportation and storage. Direct entry will increase the particle load of cleanrooms.

2. Block backflow of contaminated air. Double-door interlock prevents simultaneous opening of two doors and reduces inflow of non-clean air into clean zones.

3. Improve logistics efficiency. Compared with manual doors, rapid rolling doors shorten operation cycle for frequent material handling and reduce secondary contamination caused by manual door contact.

Relevance with GMP & Cleanroom Management

For pharmaceutical, food and medical device industries, pollution control before materials entering clean areas is critical. GMP requires preventing contamination introduced by materials, and logistics passages shall be equipped with necessary buffer and purification measures. Cargo air shower serves as physical purification and airlock buffer before materials entering clean zones. However, configuration and grade shall be determined according to cleanroom classification, material characteristics, process risk and validation requirements.

For high-grade clean areas, wind speed, blowing duration, filter grade, cleanliness, interlock reliability, differential pressure control and operation record of cargo air showers need validation and periodic inspection. For some pharmaceutical projects, UV disinfection, data logging and environmental monitoring interfaces can be added based on material risks.

Key Points for Selection

1. Logistics type: Reserve enough channel width and internal height for trolleys and pallet trucks. For forklift access, prioritize floorless design or reinforced ground structure.

2. Door type: Rapid rolling door fits high-frequency logistics with good sealing and fast pass. Automatic sliding door has better appearance and sealing but demands larger installation space and higher cost. Manual door is low-cost with lower throughput.

3. Other factors: Filtration configuration, nozzle layout, interlock stability, sensor type, adjustable blowing time, material corrosion resistance and convenience for maintenance. For pharmaceutical and food workshops, select models with smooth dead-corner-free surface, operation data recording and easy validation.

The automatic rolling door cargo air shower is more than just a combination of automatic door and air blowing cabinet. It acts as a vital purification barrier at cleanroom logistics entrance. With high-speed clean airflow, double-door interlock and automatic control, it reduces dust brought in by cargo, stabilizes cleanroom differential pressure and improves material turnover efficiency. It is a practical and efficient supporting equipment for production environments with frequent logistics, strict cleanliness requirements and minimized manual intervention.
