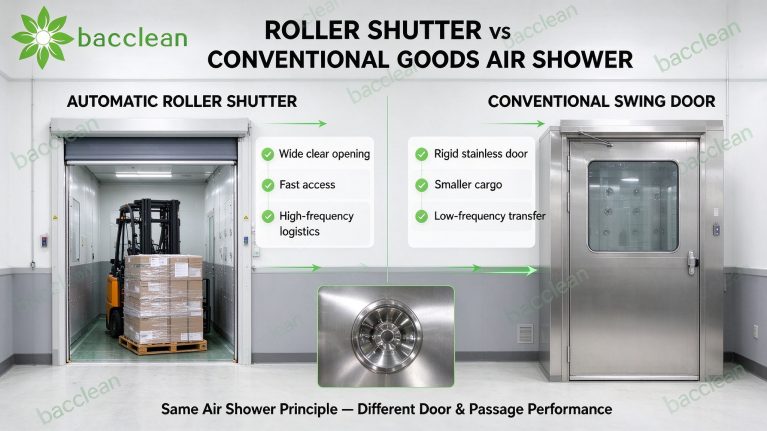

1. Door Structure & Passing Space
Ordinary Air Shower Room It adopts stainless steel swing doors that open inward or outward. Swing space must be reserved for door movement, which limits the maximum width and height of door openings, making ultra-wide and ultra-high passages hard to achieve. The rigid stainless steel door panel features good impact resistance and sealing performance. It is suitable for small pallets, turnover boxes and small/medium-sized materials, and generally does not allow forklifts to drive directly inside.

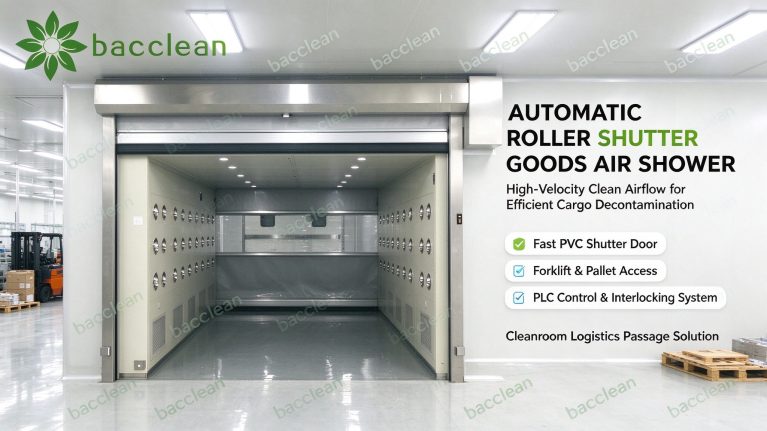

Automatic Rolling Door Air Shower Room It adopts fast PVC rolling door. The door rolls upward and requires no swing space. Door width and height can be customized to build large-size passages. Forklifts and pallet jacks can drive straight into the chamber with full pallets of goods. The rolling door is made of flexible material with fast lifting speed and anti-pinch safety bottom edge. However, the curtain and sealing strips are prone to wear under long-term frequent impact.
2. Operation Mode & Passing Efficiency
Ordinary Air Shower Room Most are manual swing doors; electric swing doors are optional for a small number of units. Manual operation is required to open and close doors. The control system has simple functions including basic double-door interlock and air shower timing. Material turnover cycle is slow, suitable for low-frequency transfer of small and medium batches of materials.
Automatic Rolling Door Air Shower Room Equipped with geomagnetic coils or infrared radar sensors. When a forklift drives in, the inlet door automatically closes. After air showering, the outlet rolling door rises automatically for release. No manual door operation is needed. The PLC control system integrates sound & light prompts and fault alarms. High-end models support operating data storage. It has high automation and fast turnover speed, suitable for high-frequency continuous logistics passages for large goods.
3. Cost & Maintenance Characteristics
Ordinary Air Shower Room Simple structure with few accessories and lower procurement cost. The sturdy stainless steel door panel requires little daily maintenance and is easy to inspect.
Automatic Rolling Door Air Shower Room Higher overall procurement cost. Rolling door motors, PVC curtains and seals are wearing parts. Regular inspection and replacement are required under high-frequency operation, leading to more maintenance items.
4. Differentiated Application Scenarios
Ordinary Air Shower Room Application Secondary material passages of clean workshops; cross-zone dust removal for small and medium goods such as turnover boxes and small pallets; pharmaceutical, food and electronic clean workshops with low material access frequency.
Automatic Rolling Door Air Shower Room Application Main logistics passages of clean workshops; forklift transportation of full-pallet raw materials and semi-finished products; scenarios in lithium battery and photovoltaic industries where large materials enter and exit clean areas frequently; sites with limited space where swing space for hinged doors cannot be reserved.

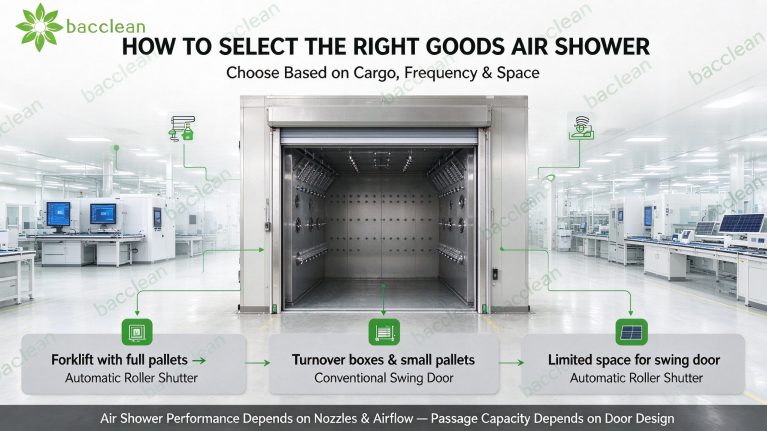

5. Quick Selection Judgment
✅ Forklift access for full pallets & frequent logistics movement → Automatic Rolling Door Air Shower Room
✅ Only turnover boxes / small pallets & low transfer frequency → Ordinary Swing-door Air Shower Room
✅ Narrow on-site passage with no reserved swing space for hinged doors → Automatic Rolling Door Air Shower Room
Summary
Both have identical purification principles. The core difference is not the air shower system, but the passage capacity and automation level brought by different door types. Do not blindly select the high-end rolling door air shower room. Evaluate comprehensively based on material size, transport tools and passing frequency to avoid over-specification or insufficient passage dimension.
