First, the definition and core positioning are different

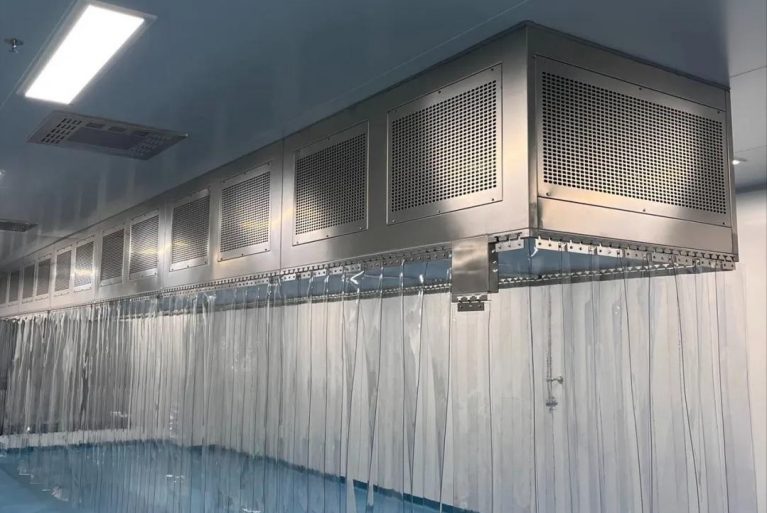

Laminar flow device
In a broad sense, it is purification equipment that generates uniform, directional “laminar airflow” to prevent pollutant diffusion, using various forms based on the technical principle of “laminar purification.”
In a narrow sense, it can refer to the components of laminar flow purification systems that are fixedly installed on the top, side walls and other positions of clean rooms and have a high degree of integration with the building (such as ceiling-mounted laminar flow hoods, vertical laminar flow supply air systems, etc.).

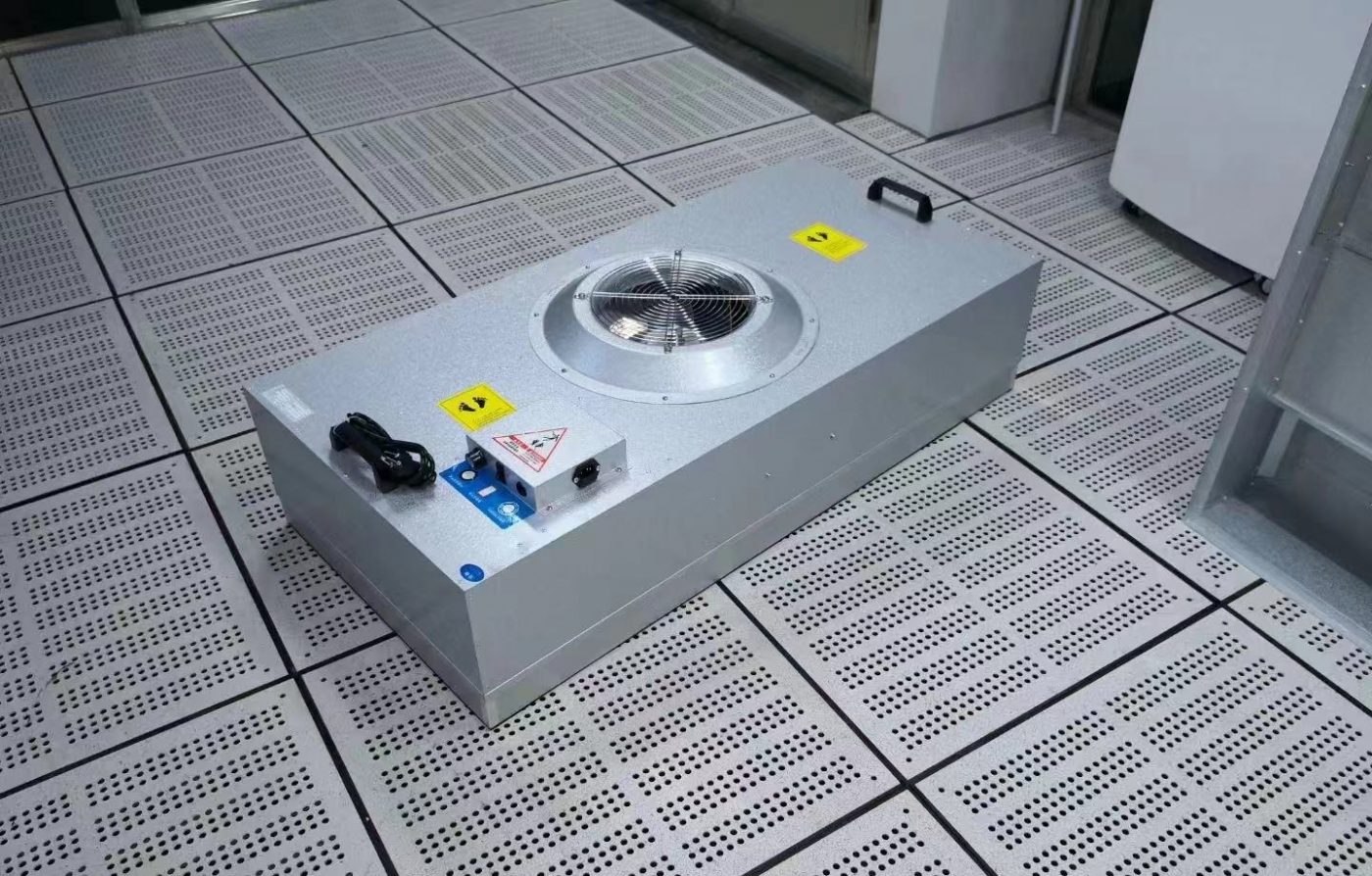

FFU laminar flow unit
FFU is the abbreviation of “Fan Filter Unit”, which is a specific type of laminar flow device. It specifically refers to a modular and independently operable laminar flow purification unit with its own fan and filter (usually a high-efficiency filter HEPA or an ultra-high-efficiency filter ULPA).
The core positioning is a “modular purification terminal”, which does not rely on a centralized air supply system and can complete the entire process of air flow intake, pressurization, filtration and exhaust by itself.

Second, moving from core positioning to design, the structural and system dependencies are different.
It is usually of non-modular structure and relies on the centralized air conditioning supply system of the clean room (such as central air conditioning + air ducts) to provide the air flow source. Generally, it does not have an independent fan by itself.
Structurally, it has a high degree of integration with the building’s ceiling, walls, etc., and needs to be designed in coordination with the overall purification system’s air pressure and air volume, and cannot operate independently.
Filters are usually used as end components of the system in conjunction with air ducts, static pressure boxes, etc.
FFU laminar flow unit
It features a highly modular structure. The core components include: built-in centrifugal fan, high-efficiency/ultra-high-efficiency filter, box body, and air outlet diffuser plate. Some models also come with wind speed adjustment function and condition monitoring module.
It does not rely on a centralized air supply system. After being connected to the power supply, it can operate independently. It sucks in air from the surrounding environment through its own fan, filters it and then sends out clean laminar flow.
It can be flexibly combined and spliced according to requirements to form purification areas of different sizes, and the installation and disassembly are relatively convenient.
Third, transitioning from structure to context, the application scenarios and flexibility are different.
It is suitable for large and fixed cleanroom scenarios, such as semiconductor factories, pharmaceutical workshops, hospital operating rooms and other places with high cleanliness requirements and fixed areas.
Due to its high integration with buildings and centralized systems, it is difficult to renovate and expand, making it suitable for long-term stable production or operation environments.
It can achieve large-area uniform air supply and meet the strict requirements of high cleanliness grades (such as ISO 1-5 grades).
FFU laminar flow unit
It has greater flexibility and is suitable for small and medium-sized clean areas, temporary purification Spaces or scenarios that require flexible adjustments, such as electronic component assembly stations, local purification areas in laboratories, and the construction of clean booths/clean hoods, etc.
The number of units can be increased or decreased as needed, and the purification area can be quickly built or renovated without large-scale changes to the building structure and centralized system.
It can be used alone (such as in local high-cleanliness workstations), combined into large purification areas, or used in conjunction with the centralized system of a clean room to supplement local air flow.
Iv. Differences in Operating Costs and Maintenance
Laminar flow device (narrow sense
The initial construction cost is relatively high (requiring a centralized air supply system, air ducts, static pressure boxes, etc.), but the energy consumption during later operation is relatively stable, making it suitable for large-scale continuous operation scenarios.
Maintenance relies on the overall system inspection and repair. Filter replacement needs to be coordinated with system shutdown. The maintenance process is rather complex and requires a high level of professionalism.
FFU laminar flow unit
The initial investment is relatively flexible (can be purchased and installed in batches), but the energy consumption of a single unit may be higher than that of a centralized system (if used on a large scale, the total energy consumption may be higher).
It is convenient to maintain. The faulty unit can be shut down for inspection or the filter can be replaced independently without affecting the operation of other units. The maintenance cost is relatively controllable and the dependence on the overall system is low.
V. Differences in Air Volume and Airflow Control
Laminar flow device (narrow sense
The air volume is uniformly regulated by the centralized air supply system, ensuring excellent overall air flow uniformity. It is suitable for scenarios with extremely high requirements for air flow stability, such as high-precision semiconductor manufacturing.
Air volume adjustment needs to be carried out through components such as system dampers, and the adjustment range is limited by the overall system design, with relatively poor flexibility.
FFU laminar flow unit
Some models support single-unit air velocity adjustment, which can adjust the air volume according to the cleanliness requirements of the local area to meet the needs of different scenarios (such as differentiated adjustment between ordinary clean workstations and high-precision operation workstations).
When multiple units are used in combination, attention should be paid to the airflow coordination among the units to avoid local airflow disorder. Usually, an airflow diffusion device is needed to optimize uniformity.
Summary
Hierarchical relationship: The FFU laminar flow unit is a specific form of laminar flow device. The scope of laminar flow devices is broader, including FFUs and other non-modular laminar flow purification components.
Core differences: Laminar flow devices (in a narrow sense) tend to be “integrated, large-scale, and for fixed scenarios”, while FFUs tend to be “modular, flexible, and for local/temporary scenarios”.
Selection logic: For scenarios requiring large areas, long-term stable operation, and high cleanliness uniformity, integrated laminar flow devices should be given priority. FFU laminar flow units are more suitable for scenarios such as local purification, flexible expansion, and temporary setup.
