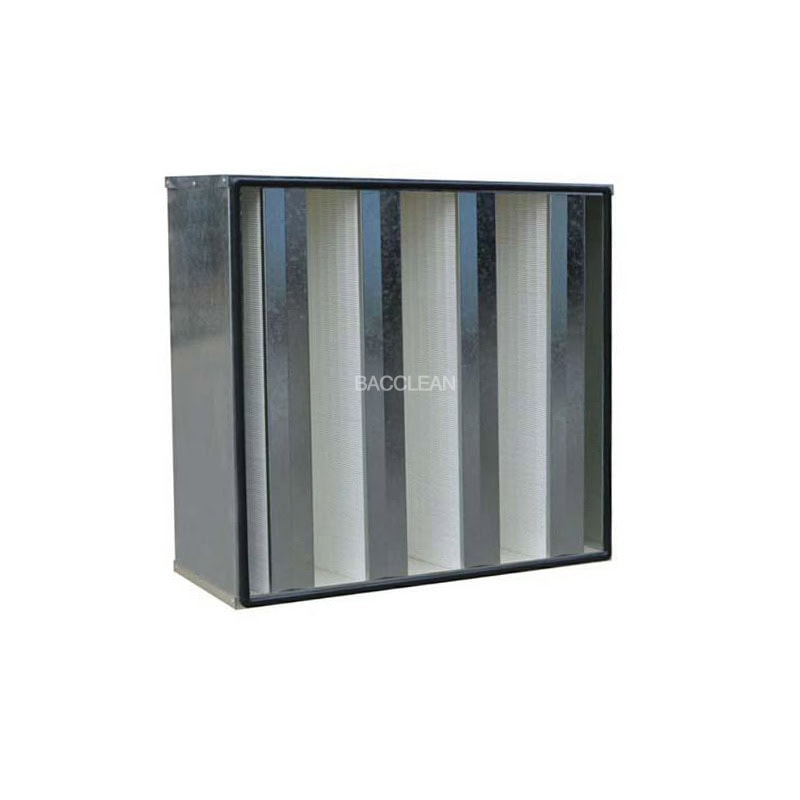

V Bank Filter With Galvanized Frame

1. The efficiency of capturing dust particles of 0.3μm is up to 99.99%.

2. It can withstand large air volume, with the unique frame V-shaped structure which can minimize structural resistance.

3. Compact structure, also it can be equipped with flange. Easy to install and maintain.

4. With the unique sealing technology that has good elasticity, no deformation, no falling off, and won’t air leak when installed and used.

5. 100% of the whole product inspection factory.

6. Big filter area, low resistance, long service life, large dust capacity,light weight.

Struction：

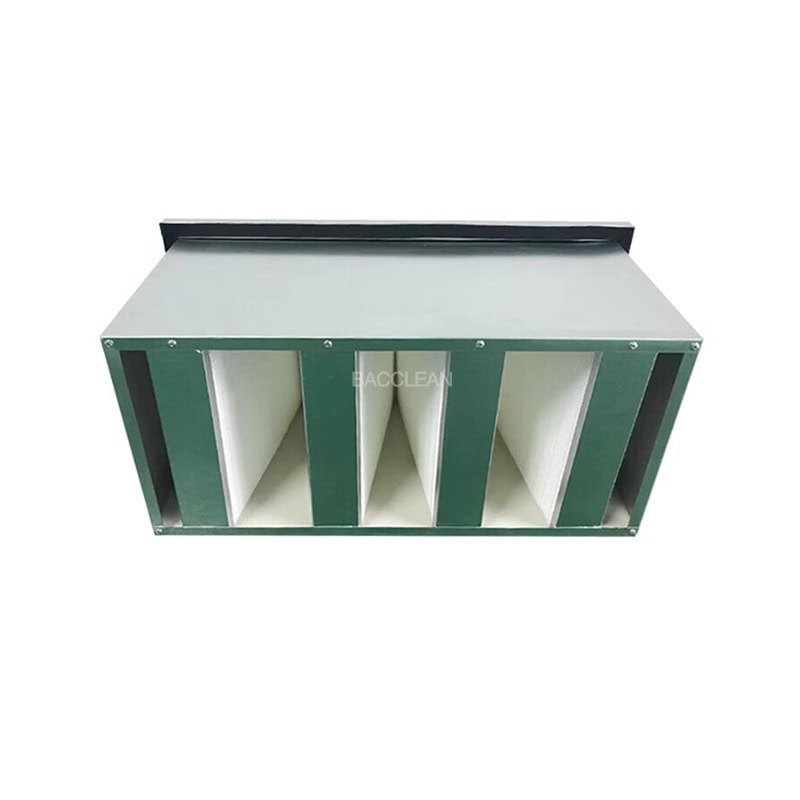

The V bank filter is composed of multiple pieces of non-partition filter elements in a V-shaped structure, which is installed in a plastic-sprayed galvanized steel plate or ABS filter material box. Compared with ordinary filters, this structure greatly increases the amount of filter material. In the existing system installation, the larger filter material area ensures lower pressure loss, thereby reducing energy consumption and saving operating costs.

Advantage：

1. Large dust capacity, no partition design Combined high-efficiency filter is made of ultra-fine, moisture-proof and flame-resistant glass fiber. Specially designed hot melt adhesive can ensure the same pleat spacing, ensuring that the airflow passes with small resistance. The same pleat spacing makes full use of the entire depth of the filter material to ensure a larger dust holding capacity. Sturdy construction to ensure good performance under turbulent conditions

2. The metal flange frame and filter box are made of sprayed galvanized steel plate. This treatment ensures that the filter is not corroded in high temperature environments. The sturdy construction makes Hv an ideal choice for particularly harsh environments and conditions where the fan is often shut down. Customers can choose filters with protective nets at both ends to ensure that they are not damaged during transportation.

3. High air volume combined high-efficiency filter: This filter is designed to have an air volume of up to 4000m3/h. This high air volume design combined high-efficiency filter has more advantages than other ordinary high-efficiency filters of the same size: fewer filters can be used at the same air volume, thereby reducing costs and reducing installation space and time.

Product parameters：

Beside the above standard sizes, it can be customized any size and efficiency (F5, F6, F7,F8, F9, H10, H11, H12, H13, H14) if you need.

Application：

It is generally used in electronics, pharmaceutical industry, hospital operating rooms, semiconductor factories, pharmaceutical factories, air-conditioning units and other purification equipment terminal filtration and other occasions that require high cleanliness but have limited installation space.
