It is easy to install and replace efficiently. It is strong ventilation, beautiful appearance, simple maintenance, low investment, light weight and thin thickness.
| Efficiency: |
H13 / H14 |
|
Media material : |
Glass fiber |
|
Frame material : |
Aluminum |
|
Gasket material : |
EVA |
|
Aluminum optionalthickness(mm) : |
120/150/220 |
|
Sealant : |
Put two-component polyurethane glue |
|
Max operating temperature : |
70°C |
|
Max operating humidity : |
100% |
|
Separator : |
EVA hot melt adhesive |
It has good sealing performance, is connected to the air duct, has good filtering performance, and is suitable for laminar or non-laminar clean rooms from Class 10000 to Class 100. It is widely used in operating rooms, laboratories, pharmaceutical rooms, microelectronics, film and optical fiber equipment, food processing plants and other working environments with high cleanliness requirements.
1.Strong ventilation, beautiful appearance, simple maintenance, low investment, light weight, thin thickness, and suitable for installation in the clean room of aluminum alloy keel form.
2.Quick installation and easy replacement.
3. Anti-aging technology,not changeful form,a low resistance and long life-span.
4. The outer cabinet is covered with PEF insulation cotton, with good insulation performance.
5. High efficiency
6.100% factory inspection

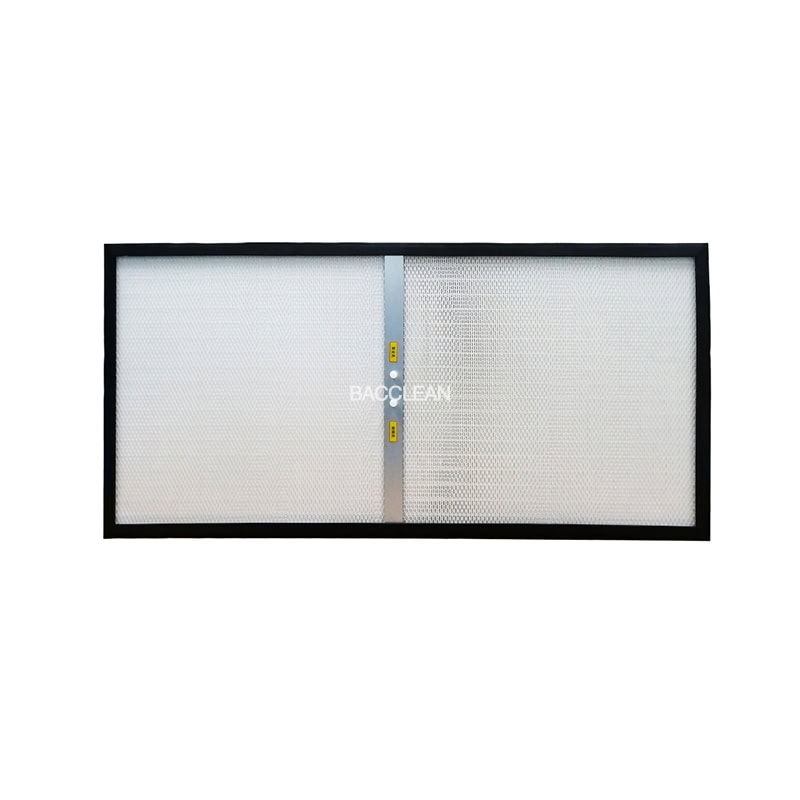

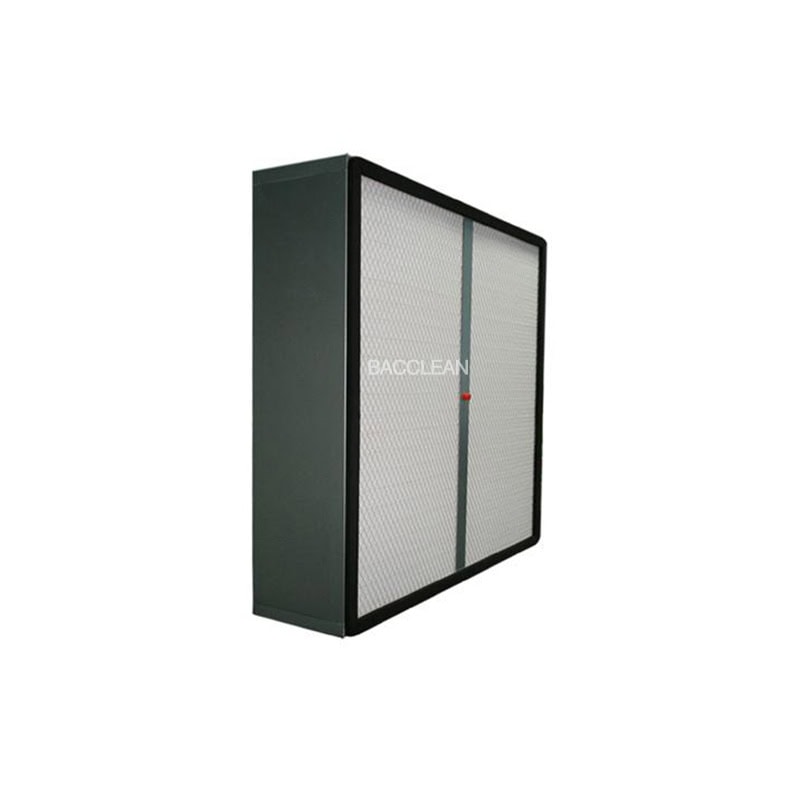

1. Replaceable structure. The box can be fixed on the ceiling, with a special tool-free filter fixing plate. The filter can be replaced directly from the room. The high-efficiency filter can be replaced without removing the wall and connecting pipe. It is simple, time-saving and labor-saving.
2. Small size and light weight. The box is made of anodized aluminum alloy, with a standard height of only 180mm, which is convenient for transportation and installation.
3. Good general performance. Suitable for various types of ceilings, three air inlet sizes are available, suitable for international general high-efficiency filter sizes
Meet fire protection requirements. The box is covered with 12.5mm thick PE insulation cotton, and the fire protection level is B1/B2
| Filter box | Filter | ||
| Box | Anodized aluminum extrusion | Frame | Anodized aluminum extrusion |
| Air inlet and upper plate | Galvanized iron plate | Filter material | Ultrafine glass fiber paper |
| Air flow diffusion net | Punching galvanized iron plate | Protective net | Anodized aluminum net |
| Insulation material | Black insulation board (PE t=12.5mm) | Adhesive | Synthetic resin |
| Airtight gasket | Synthetic rubber | Airtight gasket | Synthetic rubber (EPDM t=5mm） |
| Model | Overall dimensions (mm)(W*H*D) | Rated air flow initial resistance (m³/h)(pa) | Wind speed (m/s) | Filter area (㎡) |
Different air volume/resistance (m³/h)(pa) |
Recommended final resistance(pa) | Filtration efficiency EN1822 | |
| B58-001 | 339*339*150 | 250/175 | 0.75 | 2.5 | 150/95 | 300/210 | 400 | H13 |
| B58-002 | 518*518*150 | 630/175 | 0.73 | 6.3 | 380/95 | 760/210 | 400 | H13 |
| B58-003 | 644*644*150 | 1000/175 | 0.72 | 10 | 600/95 | 1200/210 | 400 | H13 |
| B58-004 | 1002*518*150 | 1200/175 | 0.71 | 12.4 | 750/95 | 1500/210 | 400 | H13 |
| B58-005 | 949*644*150 | 1500/175 | 0.72 | 14.8 | 900/95 | 1800/210 | 400 | H13 |
| B58-006 | 1234*634*150 | 1900/175 | 0.71 | 19 | 1160/95 | 2300/210 | 400 | H13 |
| B58-007 | 1254*644*150 | 2000/175 | 0.71 | 19.7 | 1200/95 | 2400/210 | 400 | H13 |
| B58-008 | 1294*644*150 | 2150/175 | 0.71 | 21 | 1280/95 | 2600/210 | 400 | H13 |
Beside the below standard sizes, it can be customized any size and efficiency (H13, H14) if you need.
1. It can be installed on the ceiling keel or the color steel plate ceiling.
2. After the air duct is installed, the high-efficiency filter needs to be tested indoors and installed after the air volume and cleanliness meet certain requirements to extend the service life of the high-efficiency filter.
3. To ensure the service life of the high-efficiency filter, it is recommended that the air should be subjected to a temperature of no less than F8 (colorimetric method 90%-95%) before entering.
1 Mainly used to filter air suspended particles above 0.3um, as the end filter of various filtration systems.
2 The box is made of anodized aluminum profile, which is light in weight, easy to carry and install, and suitable for installation in clean rooms with aluminum alloy keels.
3 Including air inlet pipe, the diameter of the air inlet pipe can be selected as φ250, φ300, φ350.
4 The high-efficiency filter and the static pressure box are split, and a regulating valve can be configured at the air inlet of the static pressure box to adjust the uniformity of air supply and static pressure effect.
5 The filter adopts a replaceable design, which does not need to be replaced together with the box, reducing costs and saving resources.
6 Special tool-free filter fixing plate, directly replace the filter from the room, fast installation and convenient replacement.
7 With the indoor replacement special partition-free high-efficiency filter (thickness 69mm), it has high filtration efficiency and low resistance.
8 The four aluminum profile hanging blocks on the cover are used for integrated ceiling installation.
9 The outside of the box is fully covered with PEF insulation cotton, which has good thermal insulation performance.
10 It is especially suitable for clean rooms that are restricted by civil engineering height or must adopt compact design, which greatly saves space. 11 Each filter is strictly tested.
12 Filtration efficiency level: H13-H14 (EN1822)
star_border
Widely used in terminal filtration of civil or industrial clean places with high cleanliness requirements, such as: electronics, semiconductors, precision machinery, pharmaceuticals, hospitals, food and other industries.
