High strength, large air volume, small resistance, high capacity of dust.
|
Media material : |
Non-woven filter cotton |
|
Frame material : |
Aluminum /Galvanized steel |
|
Efficiency: |
40%~90%@2.0μm |
|
Aluminum optionalthickness(mm) : |
10/17/21/25 |
|
Sealant : |
White latex / Universal glue |
|
Max operating temperature : |
80 degree centigrade |
|
Max operating humidity : |
100% |

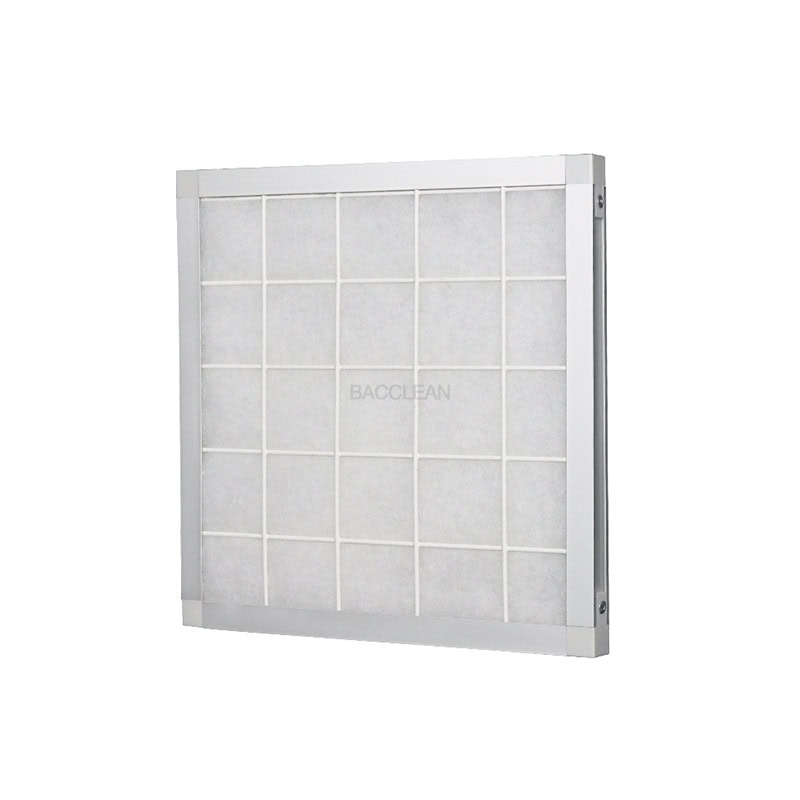

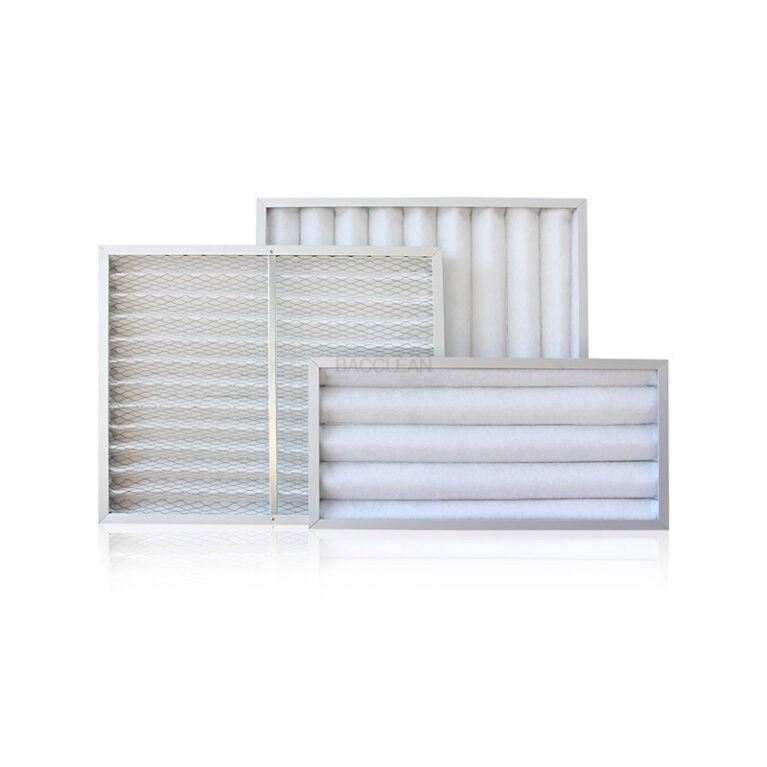

The outer frame of the flat-lay primary filter adopts a solid plate aluminum alloy frame with aluminum alloy corners or plastic corners. The structure is solid and stable, and a diamond-shaped protective net is added on the air outlet surface to ensure that the filter will not be deformed or damaged even in a poor working environment. The outer frame adopts a detachable design to facilitate the replacement of filter materials to achieve the purpose of frame reuse.
1. The filter is low initial pressure drop and high dust holding capacity.
2. The filter media inside the frame can be unfolded or pleated.
3. To supply in paper or metal frames as aluminum or galvanized.
4. Easy to be changed and the metal frame panel filters can be washed reused.
5. Easy clean,convenient replacement,strong structure,big air volume,low resistance,high dust holding capacity etc.
Excellent filter performance
The primary plate type disposable filter is made of polyester fiber with superior performance, which can be used in places with high humidity.
Good tensile strength of filter material
The filter material has good tensile strength, which greatly reduces the chance of damage during installation.
Sturdy paper frame structure
The pleated metal surface mesh structure design provides a solid foundation for the solid structure of the filter; at the same time, the equidistant pleated metal mesh also ensures that the dust can fully adhere to the surface of the filter material, thereby giving full play to the filtering performance of the filter.
| Model | Overall dimensions (mm)(W*H*D) | Rated air flow initial resistance (m³/h)(pa) | Wind speed (m/s) | Filter area (㎡) | Different air volume/resistance (m³/h)(pa) | Recommended final resistance(pa) | Filtration efficiency EN779 | |
| B61-001 | 490*490*10 | 1700/30 | 1.97 | 0.26 | 1360/25 | 2040/35 | 100 | G2 |
| B61-002 | 592*287*10 | 1200/30 | 1.97 | 0.19 | 960/25 | 1440/35 | 100 | G2 |
| B61-003 | 592*592*10 | 2500/30 | 1.97 | 0.37 | 2000/25 | 3000/35 | 100 | G2 |
| B61-004 | 592*287*15 | 1200/30 | 1.97 | 0.19 | 960/25 | 1440/35 | 100 | G2 |
| B61-005 | 592*592*15 | 2500/30 | 1.97 | 0.37 | 2000/25 | 3000/35 | 100 | G2 |
| B61-006 | 490*490*21 | 1700/30 | 1.97 | 0.26 | 1360/25 | 2040/35 | 100 | G2 |
| B61-007 | 592*287*21 | 1200/30 | 1.97 | 0.19 | 960/25 | 1440/35 | 100 | G2 |
| B61-008 | 592*592*21 | 2500/30 | 1.97 | 0.37 | 2000/25 | 3000/35 | 150 | G5 |
Beside the below standard sizes, it can be customized any size and efficiency (G1, G2, G3, G4) if you need
1. Pre-filtration of local high-efficiency filtration devices; pre-filtration of large air compressors.
2. Ventilation and air-conditioning systems of large civil buildings such as office buildings, conference rooms, hospitals, shopping malls, airports, and pre-filtration of central air-conditioning and centralized ventilation systems of ordinary industrial plants or clean rooms.
3. Clean return air system.
4. Electronic technology, medicine and health, biological products, food and beverage, electromechanical engineering equipment, precision instruments, metallurgy and chemical industry, coating, air conditioning, printing, environmental protection industry, etc.
