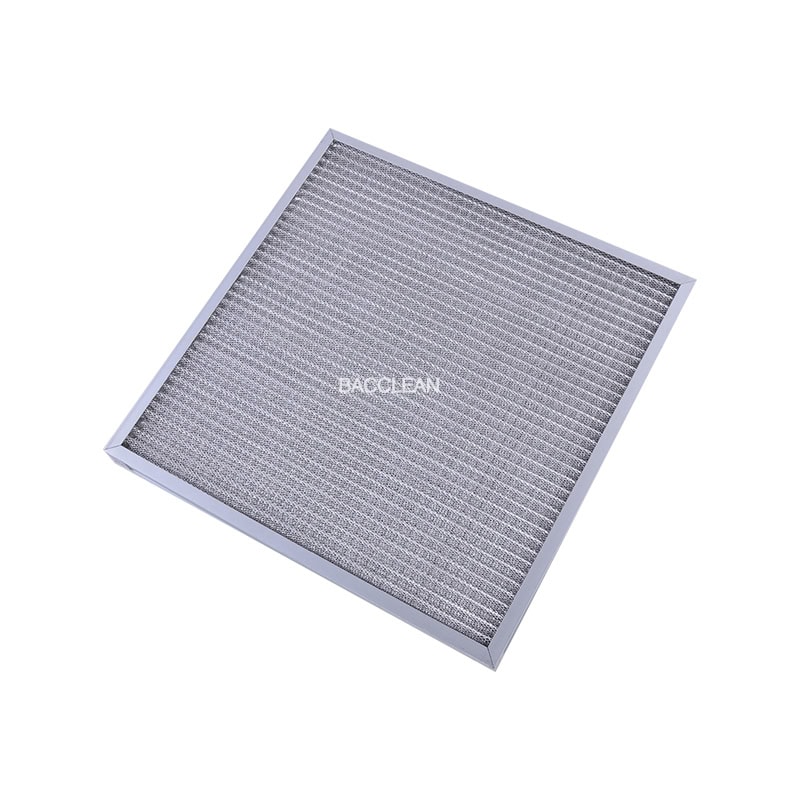

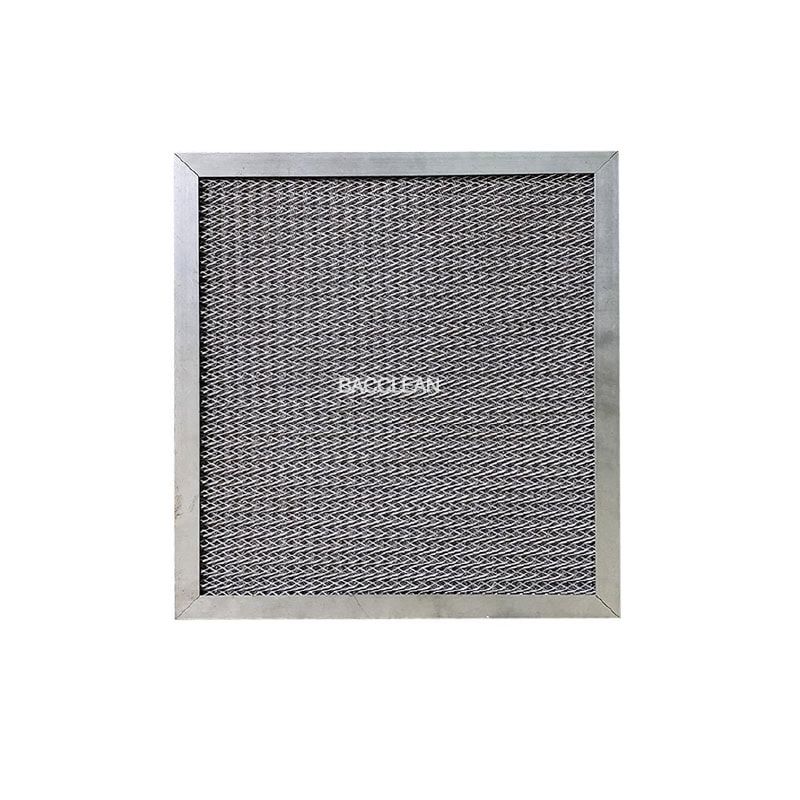

A structure of multi-layer cross-corrugated aluminum mesh or stainless steel mesh with llow resistance, can be cleaned repeatedly.
|
Media material : |
Aluminum pressure wave net/ Stainless steel pressure wave net |
|
Frame material : |
Aluminum / Stainless steel /Galvanized steel |
|
Aluminum optionalthickness(mm) : |
17,21,25,46,50,69 |
|
Max operating temperature : |
300℃ |
|
Max operating humidity : |
100% |
|

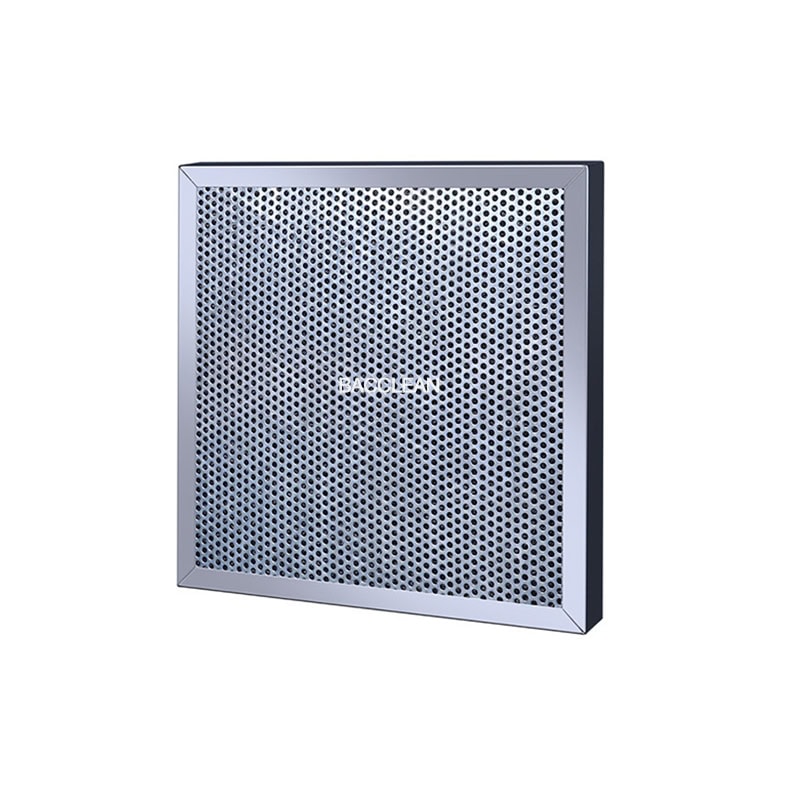

Protecting wire net: |
Galvanized square grid / Stainless steel square grid |
It is also called Metal mesh primary filter which is a special filter material that uses multiple layers of aluminum mesh or stainless steel mesh as filter mesh. Each layer has two types: wavy and flat. They are arranged crosswise and overlapped at the right angles, so that the air changes direction many times when passing through the mesh, and arranged with different densities and apertures from coarse to fine, to achieve low resistance to airflow, which can increase its dust collection capacity and efficiency.
The metal mesh filter is made of layered sheets to form a very strong filter material. It will not be compressed, deformed or collapsed under airflow and dust weight, and still maintain its high efficiency. And it does not mix resin adhesives, is not easy to burn and is resistant to high temperatures. Whether it is an aluminum filter or a stainless steel filter, it can be easily cleaned and maintained to save costs, and provide a durable and long-life filter for your air-conditioning place.
1.Aluminum frame will reduce the frequency of cleaning and maintenance.
2. Multi-layer corrugated aluminum mesh, low initial pressure drop, high dust-holding capacity and long service life.
3. Light in weight, compact in structure, easy to install.
4. Can be washed repeatedly with compressed air or cleaning fluid.
5. Good fireproof property, greatly reduce the risk of fire.
6. Good heat dissipation property, extend the life of the fan motor.
Multi-layer cross-shaped wavy aluminum mesh or stainless steel mesh to improve filtering performance Multi-layer filtering structure to increase filtering area Low resistance, can be cleaned repeatedly, high economy Outer frame is generally designed as aluminum frame or other metal frame, with special acid, alkali or high temperature resistance
| Model | Overall dimensions (mm)(W*H*D) | Rated air flow initial resistance (m³/h)(pa) | Wind speed (m/s) | Filter area (㎡) | Different air volume/resistance (m³/h)(pa) | Recommended final resistance(pa) | Filtration efficiency En779 | |
| B51-001 | 287*592*10 | 1560/20 | 2.55 | 0.34 | 1250/15 | 1870/25 | 70 | G1 |
| B51-002 | 592*592*10 | 3200/20 | 2.55 | 0.7 | 2560/15 | 3840/25 | 70 | G1 |
| B51-003 | 287*592*15 | 1560/20 | 2.55 | 0.51 | 1240/15 | 1870/25 | 70 | G1 |
| B51-004 | 592*592*15 | 3200/20 | 2.55 | 1.05 | 2560/15 | 3840/25 | 70 | G1 |
| B51-005 | 287*592*21 | 1560/20 | 2.55 | 0.51 | 1240/15 | 1870/25 | 70 | G1 |
| B51-006 | 592*592*21 | 3200/20 | 2.55 | 1.05 | 2560/15 | 3840/25 | 70 | G1 |
| B51-007 | 287*592*46 | 1560/20 | 2.55 | 1.53 | 1240/15 | 1870/25 | 70 | G1 |
| B51-008 | 592*592*46 | 3200/20 | 2.55 | 3.15 | 2560/15 | 3840/25 | 70 | G1 |
1. Ventilation systems that require acid and alkali resistance, high strength, and high temperature resistance.
2. Oil mist filtration in paint spray rooms, wax spray room filtration in automobile assembly workshops, etc.
3. Primary filtration of industrial-grade air ventilation equipment, and also used in primary filtration of building air conditioning systems.
4. Metal mesh filters are used in central air conditioning range hoods and primary filtration, special acid, alkali or high temperature resistant ventilation filtration.
