The aluminum profile frame is directly equipped with a 40mm deep side curtain knife-type structure, which can be directly inserted into the liquid tank sealing device to ensure a high degree of sealing.
|
Media |
Ultrafine glass fiber/ HV galss fiber |
|
Frame |
Extruded aluminum/Folding aluminum/ Galvanized steel/ Stainless steel |
|
Sealant |
Two-component polyurethane glue |
|
Gasket |
EVA//Neoprene |
|
Separator |
EVA hot melt adhesive |
|
Face guard |
Plastic spray diamond mesh |

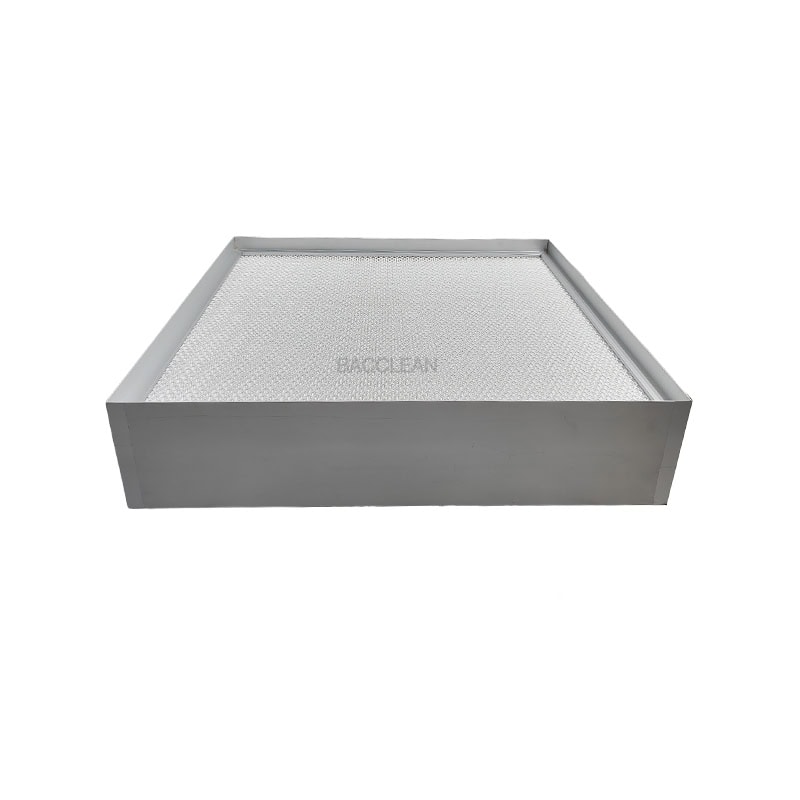

Knife-frame type high efficiency filter without partition – knife-edge type high efficiency/super high efficiency filter without partition adopts unique knife-edge structure design, which has better sealing performance than traditional sealing structure. They have passed effective leak detection and scanning tests before leaving the factory. While effectively reducing the operating cost of the clean room, it can meet the occasions with higher requirements for sealing.
Easy installation, good sealing performance, high efficiency, low resistance, large dust holding capacity, and good wind speed uniformity.
1. The air outlet has a certain length of blade
2. Made of glass fiber filter paper, separated by hot melt adhesive.
3. The pleats are spaced equally to ensure optimal airflow and high dust holding capacity.
4. Special sealant is used to ensure tightness
5. Plastic spray guardrails are installed at the inlet and outlet of the filter to reduce damage to the filter paper.
Performance characteristics of knife-type non-partition high-efficiency filter: 1 High efficiency, low resistance, large dust holding capacity; 2 Easy installation and good sealing performance.
| Model NO |
Overall dimensions(mm) (WxHxD) |
Rated airflow/ initial resistance (m³/h)/(pa) |
Wind speed (m/s) | Filter area (m²) | Filtration efficiency |
| B57-C01 | 484*484*69 | 610/165 | 0.72 | 6.3 | H13 |
| B57-C02 | 610×610*69 | 1000/175 | 0.72 | 10 | H13 |
| B57-C03 | 570*1170*69 | 1700/170 | 0.72 | 17.6 | H13 |
| B57-C04 | 1170*1170*69 | 3500/165 | 0.72 | 36.6 | H13 |
| B57-C05 | 320*320*96 | 500/230 | 1.36 | 4.4 | H13 |
| B57-C06 | 484*484*96 | 1000/225 | 1.19 | 9.9 | H13 |
1 Mainly used to filter airborne particles above 0.3um, as the end filter of various filtration systems.
2 The filter material is made of ultra-fine glass fiber filter paper and separated by hot melt adhesive.
3 This design reduces operating costs. The thermoplastic adhesive without partitions can ensure the same pleat spacing, ensure airflow, achieve high dust holding capacity, and make full use of the filter material of the entire depth of the filter.
4 The filter is sealed with a special sealant on all sides to ensure the sealing of the entire filter.
5 A spray-coated protective net is installed on the inlet and outlet of the filter to protect the filter paper from damage.
6 The outlet surface of this filter has a knife edge of a certain length.
7 Each filter is strictly tested.
8 Filtration efficiency level: H13, H14 (EN1822).
It is widely used in pharmaceutical factories, biological factories, food processing and other places where air pollution sources need to be strictly controlled, and terminal filtration of various clean workshops with vertical air supply.
