high filtration efficiency, low resistance and good high temperature resistance.
|
Product material |
Performance and graph |
|
Media material : |
Glass fiber |
|
Frame material : |
Aluminum/Galvanized steel/Stainless steel |
|
Gasket material : |
Silicone strip(260 ℃)/PTFE strip(350 degree ℃) |
|
Aluminum optionalthickness(mm) : |
120/150/220/292 |
|
Sealant : |
Red silicone(260 ℃) / Ceramic glue(350 ℃) |
|
Max operating temperature : |
260 ℃,350 ℃ |
|
Max operating humidity : |
100% |
|
Separator: |
0.035mm aluminum foil |
It can remove away 0.3 micron dust particles away under rated air volume. These filters are made of special components which can ensure the filters to retain their form and function well for a long time at extreme high temperatures. What is more, the filter media has two indentations when bent, so it can be folded into a wedge-shaped pleat at the end of the partition to prevent damage to the filter material. They are widely used in high fire requirements and high temperature environment ventilation system end filter.

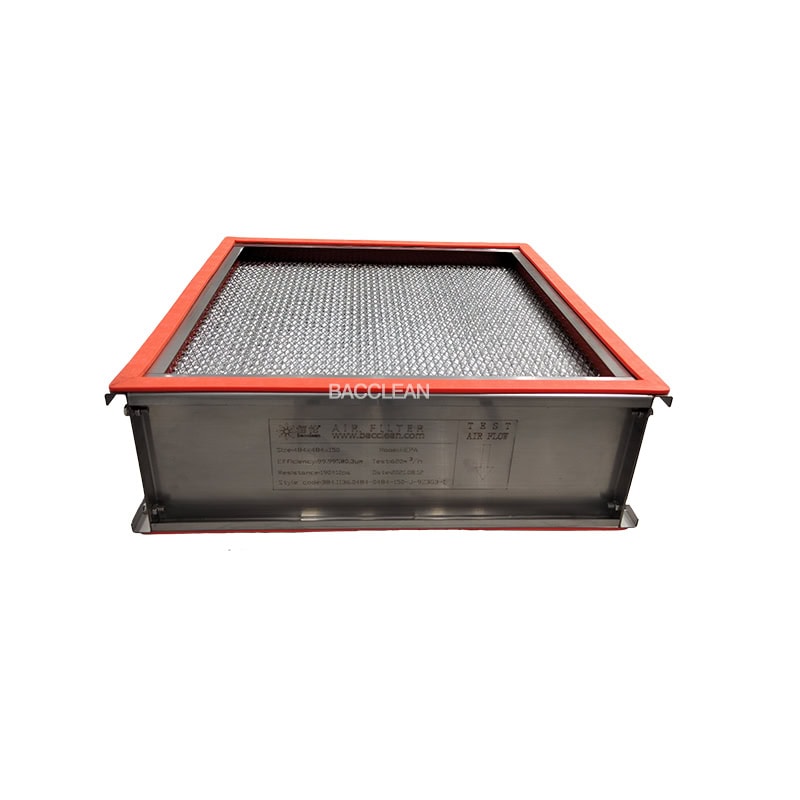

1. The 400C high-temperature high-efficiency filter uses a partition design. The corrugated partition can accurately maintain the pleat spacing and maximize the use of filter material under minimum resistance.
2. The filter material is folded 180° on both sides to form a wedge-shaped pleat. There are two indentations when the filter material is bent, so that it opens into a wedge-shaped box pleat at the end of the partition. The wedge-shaped box pleat can prevent the filter paper from being damaged.
3. It is usually used in high-temperature clean ovens, high-temperature sterilization equipment and high-grade purification equipment.

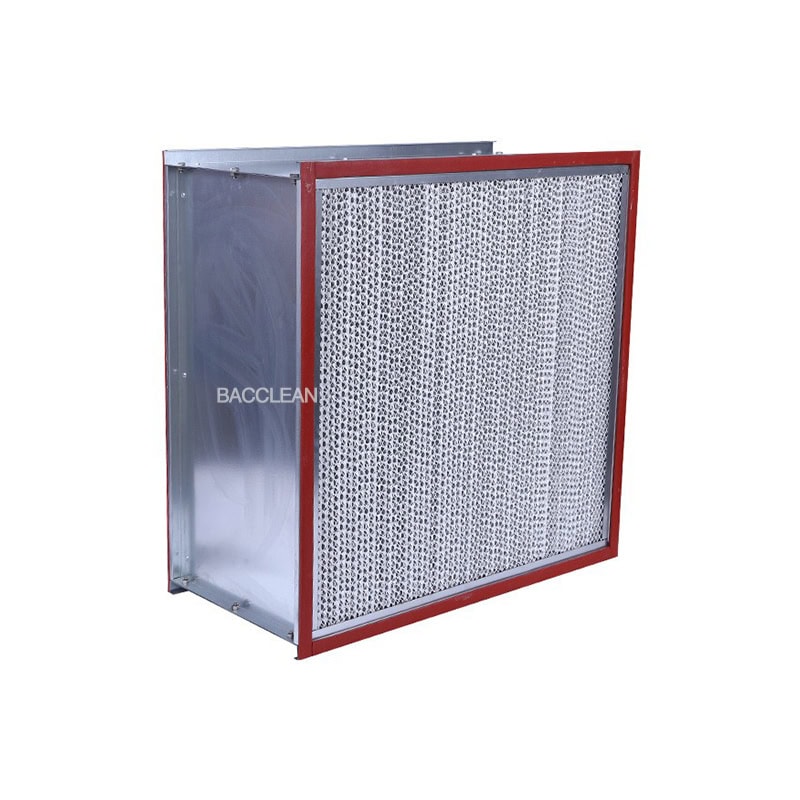

It is mainly made of high-performance high-temperature resistant ultra-fine glass fiber filter paper as the filter medium, aluminum foil corrugated sheet as the spacer, SUS304 stainless steel plate as the frame, and sealed and assembled with high-temperature resistant sealant. It is characterized by high filtration efficiency, low resistance, and good high-temperature resistance. Limit size: width ≤1220mm, length ≥1220mm, thickness 50~300mm.

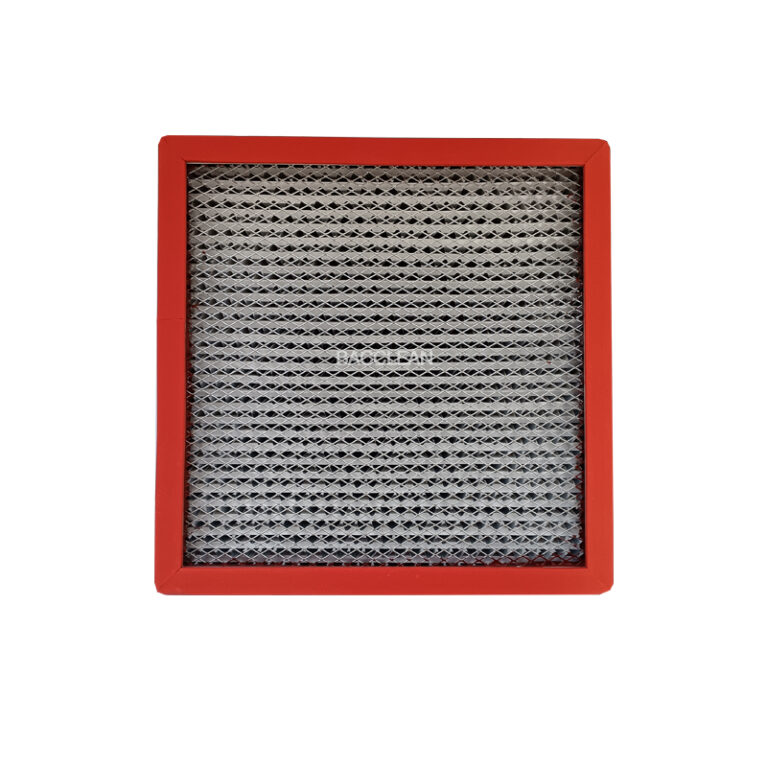

1. High quality glass fiber paper is folded as filtration material. Metal external frame (galvanized plate or aluminum alloy) is adopted and special high temperature resistance sealant is used to seal all round.

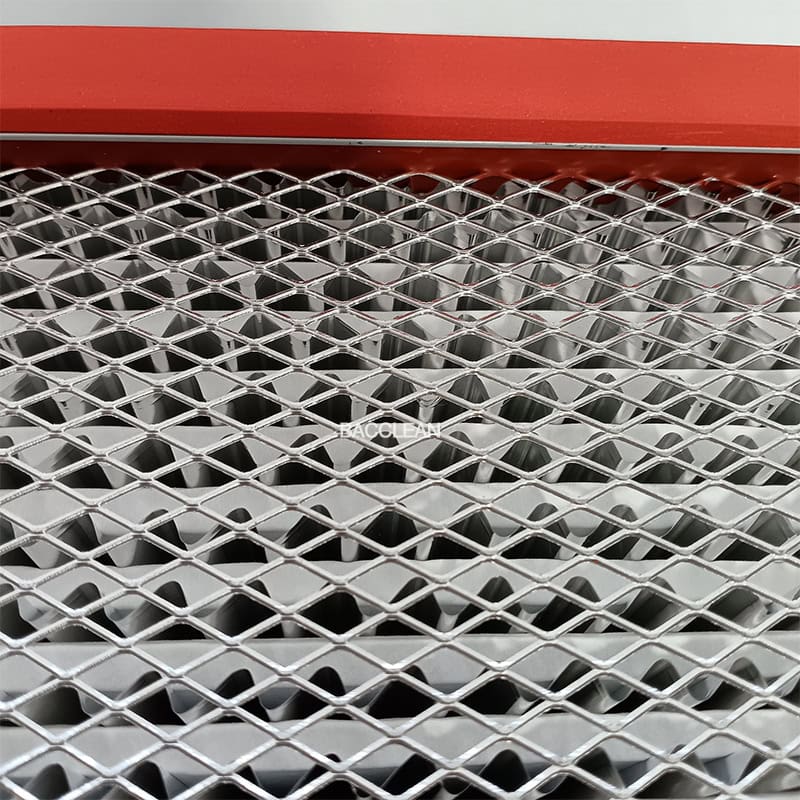

2. Metal screens are added at both sides ensuring the filtration element from deformation or damage.
3. Internal of high quality glass fiber paper: 4mm, increased filtration area, large dust holding capacity, low resistance and high filtration efficiency.
4. The whole is beautiful and the structure is solid. Flange edge can be customized according to customer requirements.
| Model NO | Overall dimensions(mm) (WxHxD) |
Rated airflow/ initial resistance (m³/h)/(pa) |
Wind speed (m/s) | Filter area (m²) | Filtration efficiency |
| B84-001 | 484*484*120 | 500/230 | 0.55 | 4.4 | H13 |
| B84-002 | 915*610*120 | 1100/230 | 0.55 | 10.6 | H13 |
| B84-003 | 610*610*120 | 1000/230 | 0.75 | 9.6 | H13 |
| B84-004 | 1220*610*150 | 2000/230 | 0.75 | 19.2 | H13 |
| B84-005 | 610*610*220 | 1600/230 | 1.18 | 15.1 | H13 |
| B84-006 | 1220*610*220 | 3200/230 | 1.18 | 30.2 | H13 |
Beside the below standard sizes, it can be customized any size and efficiency (F5, F6, F7,F8, F9, H10, H11, H12, H13, H14) if you need.

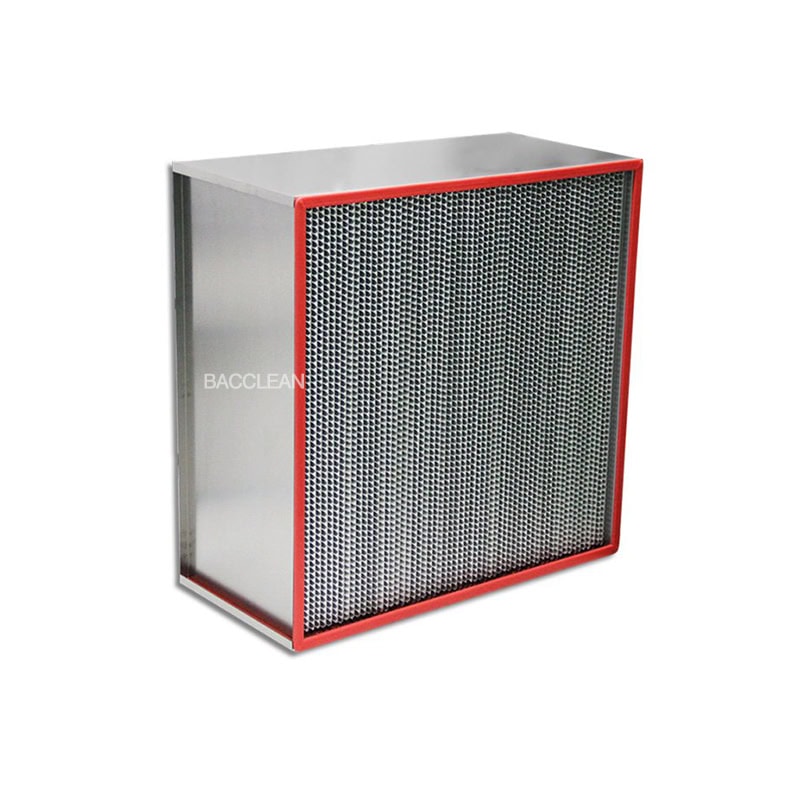

1. 1.5-2.00mm stainless steel outer frame unique frame design increases the overall strength.
2. 0.03mm aluminum foil partition arc corrugated groove peak can not only protect the filter paper from damage, but also reduce resistance and wind speed to pass evenly.
3. High-quality glass fiber filter paper spacing 4mm increases the filtration area, large dust holding capacity, small resistance and high filtration efficiency.
4. Glass fiber filter material, high temperature resistant special rubber sealing pad.
high temp filters are specially designed to protect processes at high temperatures. They meet the strictest requirements and maintain their integrity and rated performance values under extreme temperatures.These filters are typically used in automotive, food and beverage.
