Large air volume, low resistance, low moisture absorbing and the operating temperature is up to 300 degree centigrade.
|
Media material : |
Glass fiber |
|
Frame material : |
Aluminum /Stainless steel |
|
Efficiency: |
85%@2.0μm |
|
Aluminum optionalthickness(mm) : |
17/21/25/46/50/69/90/96 |
|
Max operating temperature : |
300 degree centigrade |
|
Max operating humidity : |
100% |

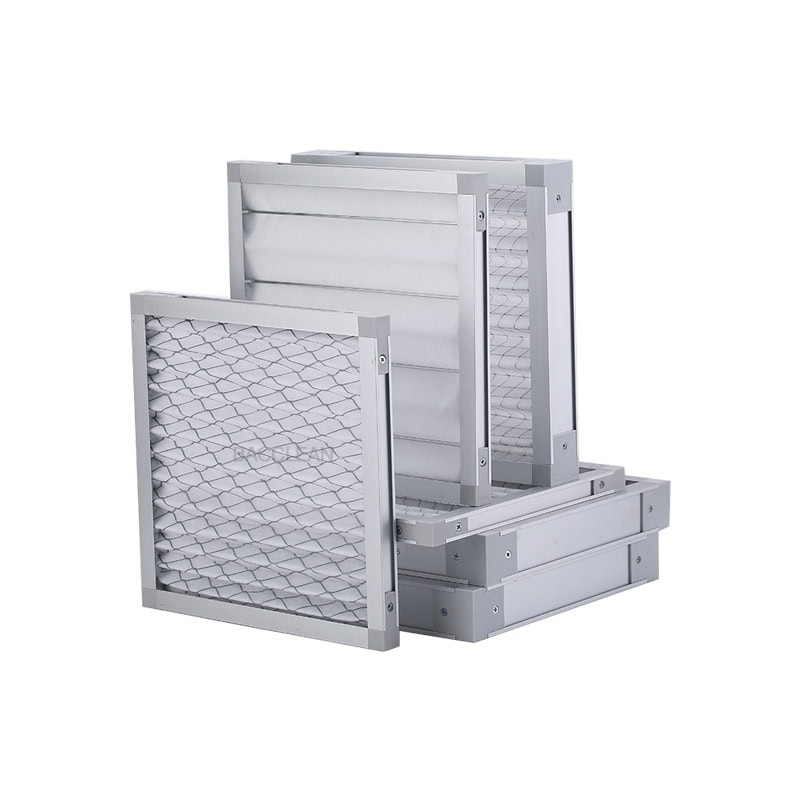

The High Heat-Resistance Pleated Filter is designed to withstand high temperatures while effectively filtering air. Its unique pleated design provides a larger surface area for efficient filtration and extended filter life. This filter is commonly used in industrial settings, such as manufacturing plants and processing facilities, where high temperatures are present. It effectively captures and removes airborne particles, including dust, pollen, and contaminants, ensuring cleaner air and a healthier environment.
High temperature filters use the double-sided filter media which is folded by galvanize wire mesh or stainless steel mesh, and has good strength., as a result of this, the media material is not easily to be blown broken.These filters are made of special components which can ensure the filters to retain their form and function well at extreme high temperatures.They are widely used in high fire requirements and high temperature environment ventilation system end filter.

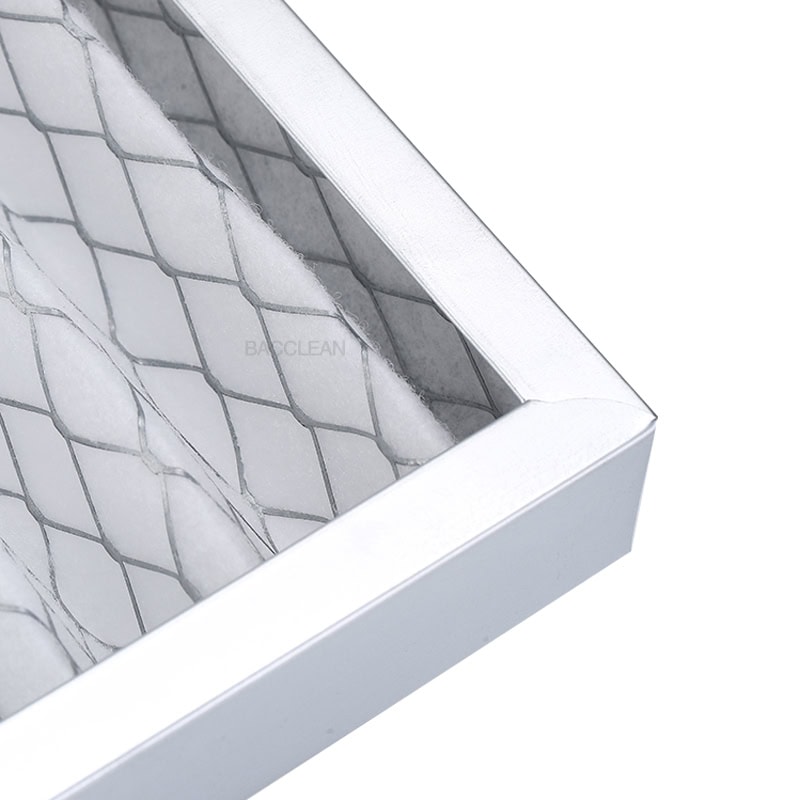

1. The filter material is folded on both sides with galvanized wire mesh or stainless steel mesh. It has good strength and the filter material is not easily blown apart.
2. The filter material is reinforced with galvanized square mesh, galvanized scallop mesh, galvanized iron wire and stainless steel wire on both sides, and can be used normally in a large air volume environment.
3. The filter material has a large filter area, long service life, large air volume, low initial resistance, and is non-flammable. Applicable places: used for general primary filter, hot air high-temperature oven air filtration and high-temperature oven air filtration in coating plants.

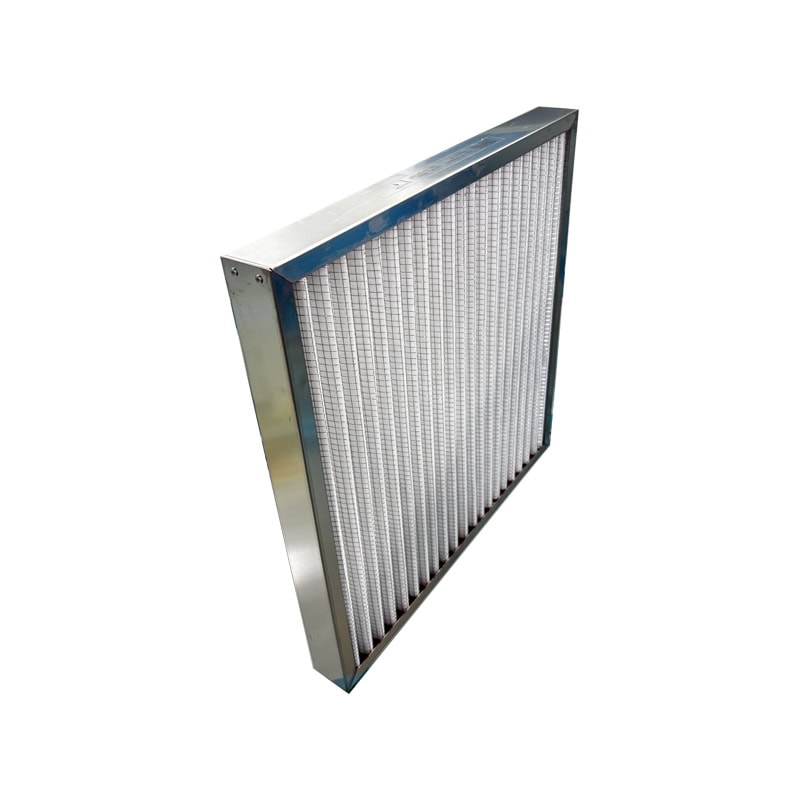

It is mainly made of high-performance high-temperature resistant ultra-fine glass fiber filter paper as the filter medium, aluminum foil corrugated sheet as the spacer, SUS304 stainless steel plate as the frame, and sealed and assembled with high-temperature resistant sealan.
| Model NO | Overall dimensions(mm) (WxHxD) |
Rated airflow/ initial resistance (m³/h)/(pa) |
Wind speed (m/s) | Filter area (m²) | Filtration efficiency |
| B51-001 | 287*592*10 | 1560/20 | 2.55 | 0.34 | G1 |
| B51-002 | 592*592*10 | 3200/20 | 2.55 | 0.7 | G1 |
| B51-003 | 287*592*15 | 1560/20 | 2.55 | 0.51 | G1 |
| B51-004 | 592*592*15 | 3200/20 | 2.55 | 1.05 | G1 |
| B51-005 | 287*592*21 | 1560/20 | 2.55 | 0.51 | G1 |
| B51-006 | 592*592*21 | 3200/20 | 2.55 | 1.05 | G1 |
Beside the below standard sizes, it can be customized any size

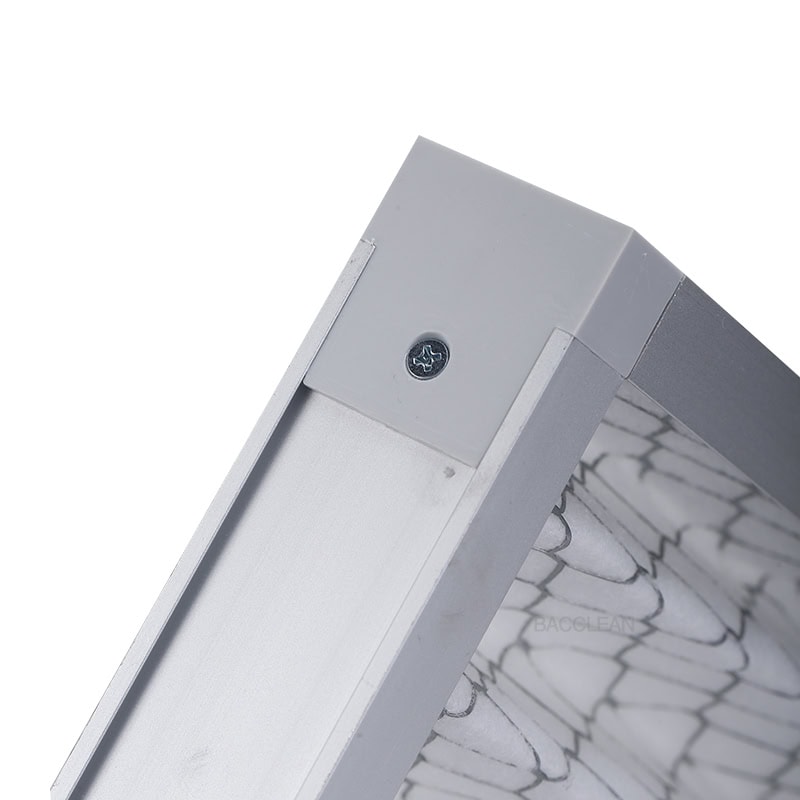

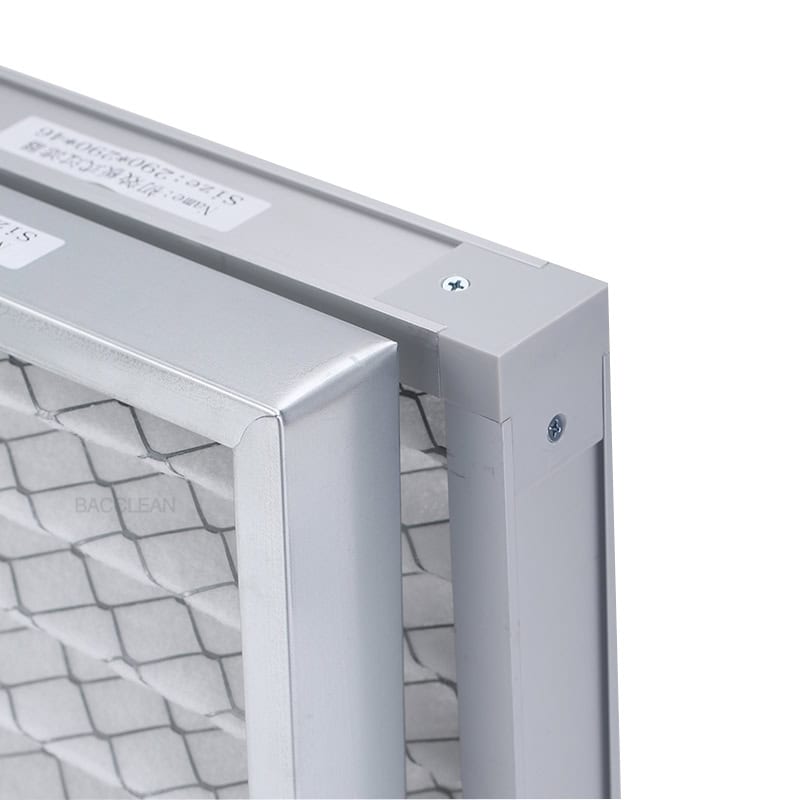

1. 1.5-2.00mm stainless steel outer frame unique frame design increases the overall strength.
2. 0.03mm aluminum foil partition arc corrugated groove peak can not only protect the filter paper from damage, but also reduce resistance and wind speed to pass evenly.
3. Glass fiber filter material, high temperature resistant special rubber sealing pad.
It can be used in general primary filtration, hot air type high temperature oven air filtration and coating factory high temperature oven air filter.
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as wecan.
