High efficiency, low resistance, large dust holding capacity, High humidity resistance,and it can be used for a long time in 99%RH environment.
| Media | Glass fiber |
| Frame | Extruded aluminum/Folding aluminum/ Galvanized steel/ Stainless steel |
| Sealant | Two-component polyurethane glue |
| Gasket | EVA//Neoprene |
| Separator | EVA hot melt adhesive |
| Optional aluminum | 38 46 50 69 75 78 80 90 96 100 110 120 |
| frame thickness (mm) | Hot melt bead |
| Max. Temperature | 70ﾟC |
| Max operating humidity | 100% |

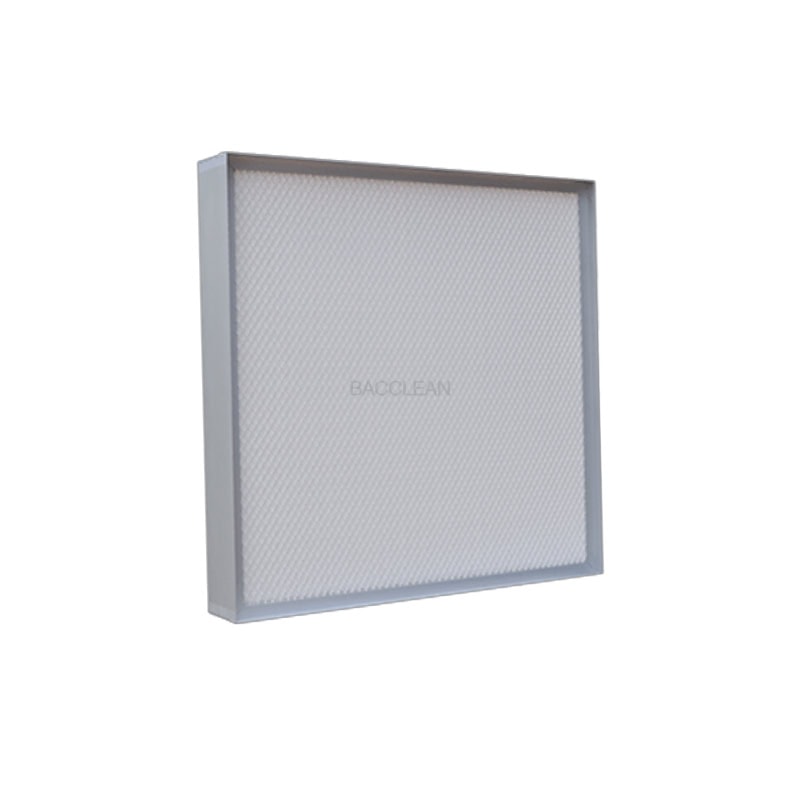

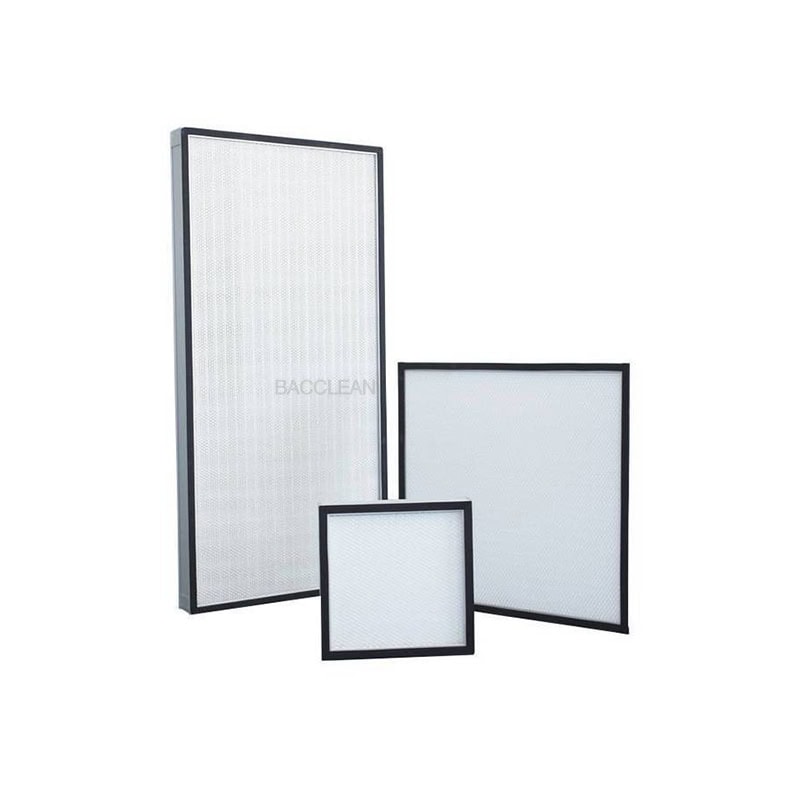

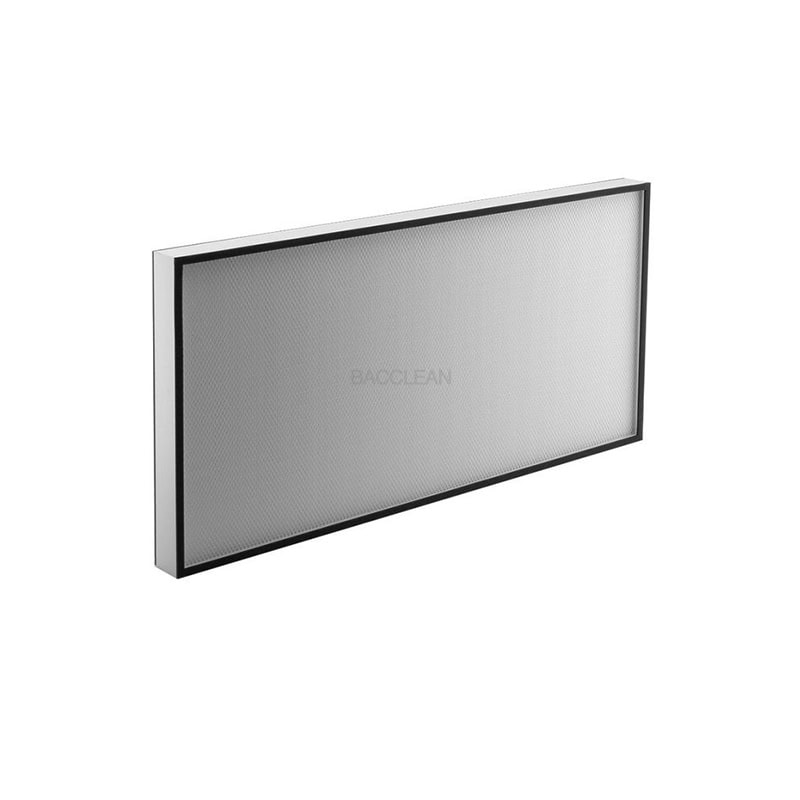

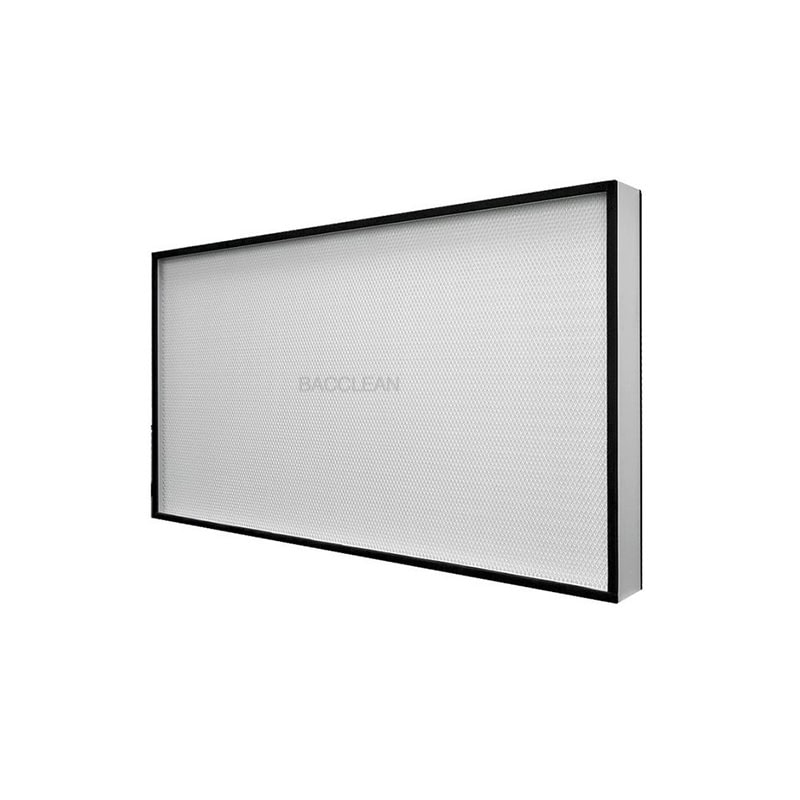

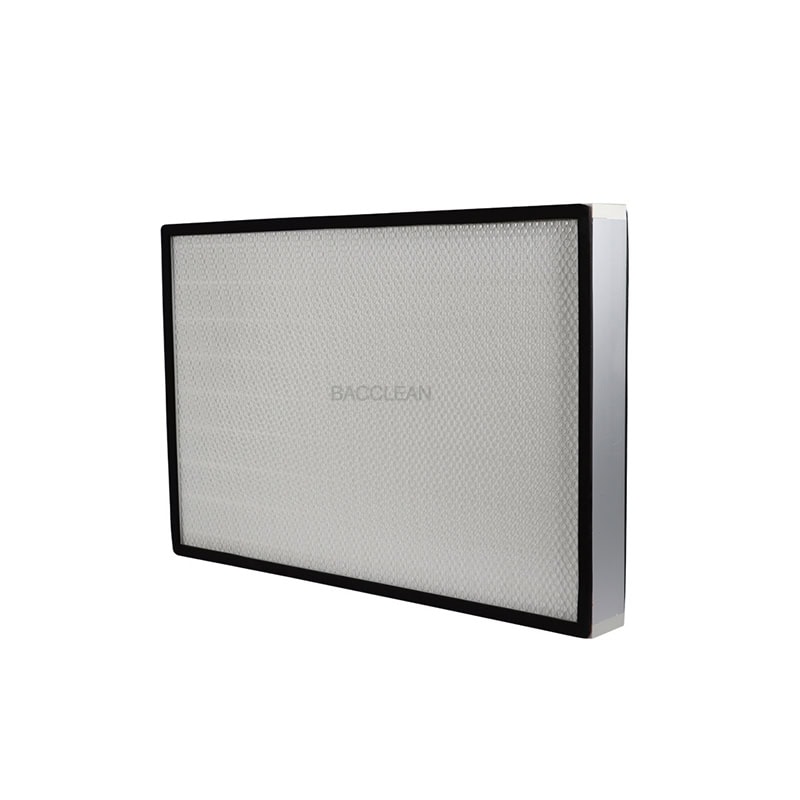

Usually, the media material of the mini-pleat Filter is fiber glass. And the fame material can be chose from aluminum, galvanized steel and stainless steel. It has good elasticity, no deformation, no falling off, and won’t air leak when it is installed and used. The max operating temperature is up to 70℃, and if you choose the aluminum frame , then it’s in lighter weight but weak heat resistance. Mini pleat HEPA filter is a kind of HEPA filter, which can remove the finest of particles away. It adopts a special media which plays an important role in capturing both small and large particles with minimum airflow restriction. It also has some advantages such as lighter weight, more compact structure and easier carrying and so on.
1 Mainly used to filter airborne particles above 0.3um, as the end filter of various filtration systems.
2 The filter material is made of high-humidity resistant ultra-fine glass fiber filter paper, separated by hot melt adhesive.
3 This design reduces operating costs. The thermoplastic adhesive without partitions can ensure the same pleat spacing, ensure airflow, achieve high dust holding capacity, and make full use of the filter material of the entire depth of the filter.
4 The filter is sealed with a special sealant on all sides to ensure the sealing of the entire filter.
5 A spray-coated protective net is installed on the inlet and outlet surfaces of the filter to protect the filter paper from damage.
6 The moisture resistance of this filter can reach 99%.
7 Each filter is strictly tested.
8 Filter efficiency level: H13, H14 (EN1822).
1 High efficiency, low resistance, large dust holding capacity;
2 High humidity resistance, can be used for a long time in 99%RH environment.
PRODUCT SPECIFICATION：
| Model NO | Overall dimensions(mm) (WxHxD) |
Rated airflow/ initial resistance (m³/h)/(pa) |
Wind speed (m/s) | Filter area (m²) | Filtration efficiency |
| B57-B01 | 484*484*69 | 610/165 | 0.72 | 6.3 | H13 |
| B57-B02 | 610×610*69 | 1000/175 | 0.72 | 10 | H13 |
| B57-B03 | 570*1170*69 | 1700/170 | 0.72 | 17.6 | H13 |
| B57-B04 | 1170*1170*69 | 3500/165 | 0.72 | 36.6 | H13 |
| B57-B05 | 320*320*96 | 500/230 | 1.36 | 4.4 | H13 |
| B57-B06 | 484*484*96 | 1000/225 | 1.19 | 9.9 | H13 |
Beside the above standard sizes, it also can according the need to customize any size and efficiency F5,F6,F7,F8,F9,H10, H11,H12,H13,H14,U15,U16 and U17
Key points for selecting a high-efficiency filter without partitions:
Application：
It is suitable for working under normal temperature, pressure and high humidity conditions, especially in high humidity environments such as infusion production in the pharmaceutical industry.
