Integrated design with insulation and lifting lugs, strong ventilation, good sealing, easy installation and replacement.
|
Matériel de support : |
Fibre de verre |
|
Matériau du cadre : |
Aluminumfolding frame / Galvanized steel / Aluminum profile. |
|
Matériau du joint : |
EVA/ Néoprène |
|
Cabinet material: |
Steel with powder coated / Aluminum profile |
|
Back cover plate material: |
Galvanized steel / Aluminum |
|
Option aluminium Épaisseur (mm) : |
120/150/220 |
|
Scellant : |
Put two-component polyurethane adhesive. |
|
Température maximale de fonctionnement : |
70 degree centigrade. |
|
Humidité maximale de fonctionnement : |
100% |

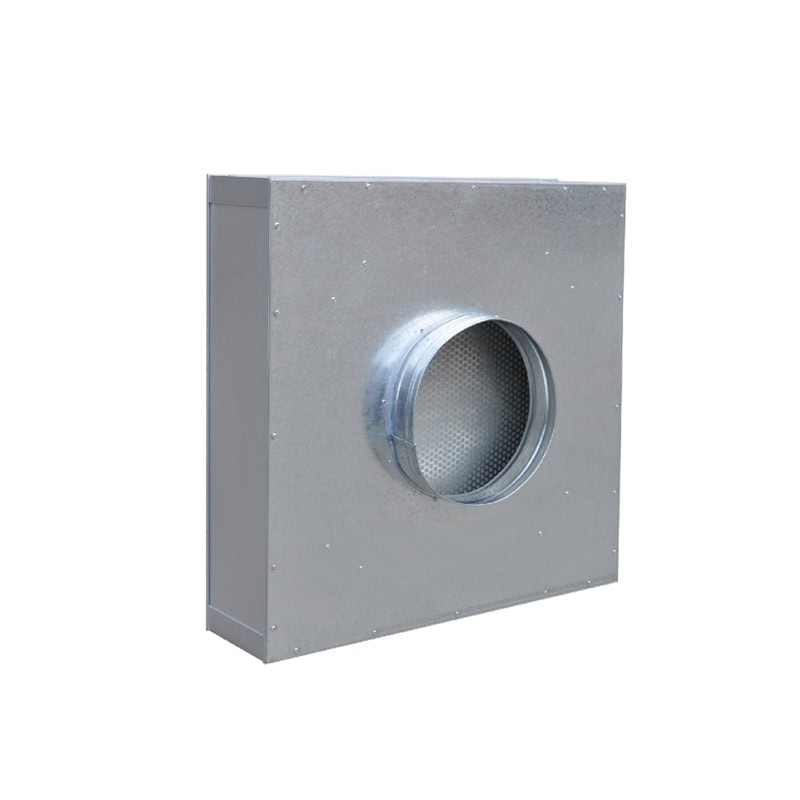

The disposable HEPA filter with hood is also called a disposable high-efficiency air supply unit or a disposable high-efficiency air supply port. It is mainly suitable for various electronic industries, pharmaceutical industries, semiconductor industries, microelectronics industries, etc. with cleanliness levels ranging from 10,000 to 100, and has requirements for air quality. The integrated high-efficiency filter unit can be directly mounted on the T-shaped keel or directly connected to the storage board, which is easy to install. Efficient replacement can be carried out directly indoors.
Its Special fixing plate is used to replace the filter directly from the room, which is quick to install and easy to replace. It is suitable for all types of ceilings, T-BAR type, warehouse plate type, light steel frame type and panel type. The initial resistance is low; compared with the replaceable static pressure box, the first purchase cost is low and the maintenance is convenient.
1. Replaceable structure. The box can be fixed on the ceiling, and the special filter fixing block can be directly replaced from the room without removing the connecting pipe, which is simple, time-saving and labor-saving.
2. Small size and light weight. The box is made of anodized aluminum alloy, and the standard height is only 180mm, which is convenient for transportation and installation.
3. Good ventilation performance, suitable for various types of ceilings, three air inlet sizes are available, suitable for international filter sizes.
4. With a special indoor replacement non-partition high-efficiency filter (thickness 69mm), it has high filtration efficiency and low resistance. Special tool-free filter fixing plate, the filter can be replaced directly from the room, which is fast to install and easy to replace.
5. With air volume control valve available.
Equipped with special filter fixing plate, fast installation, convenient replacement, light weight, easy to carry, and environmentally friendly installation.
Easy to install, efficient and convenient to replace
Complies with EN1822 specifications, CLASS H13/H14
Low pressure loss, low initial operating cost

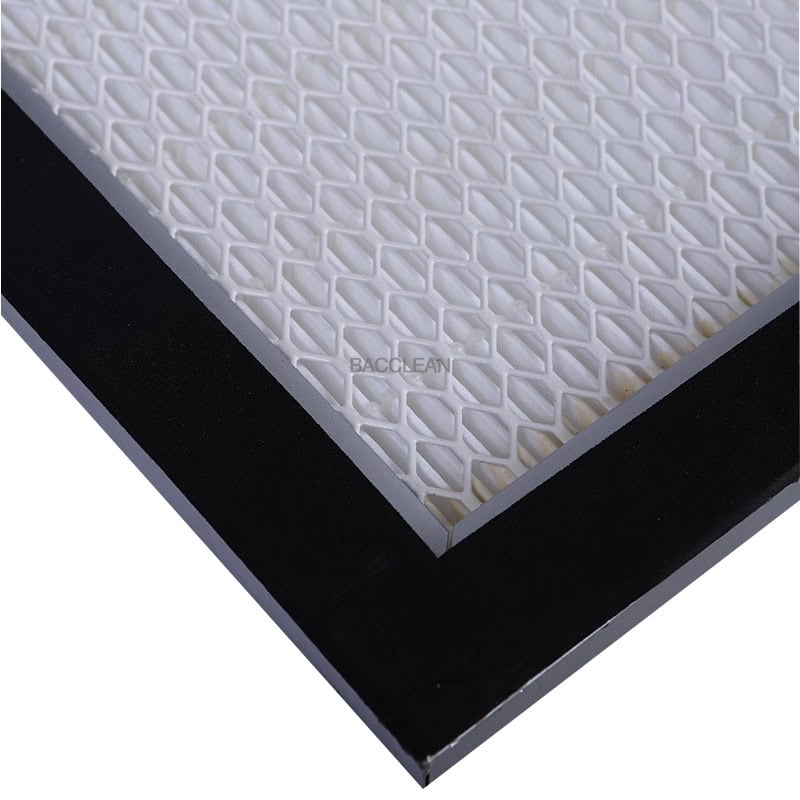

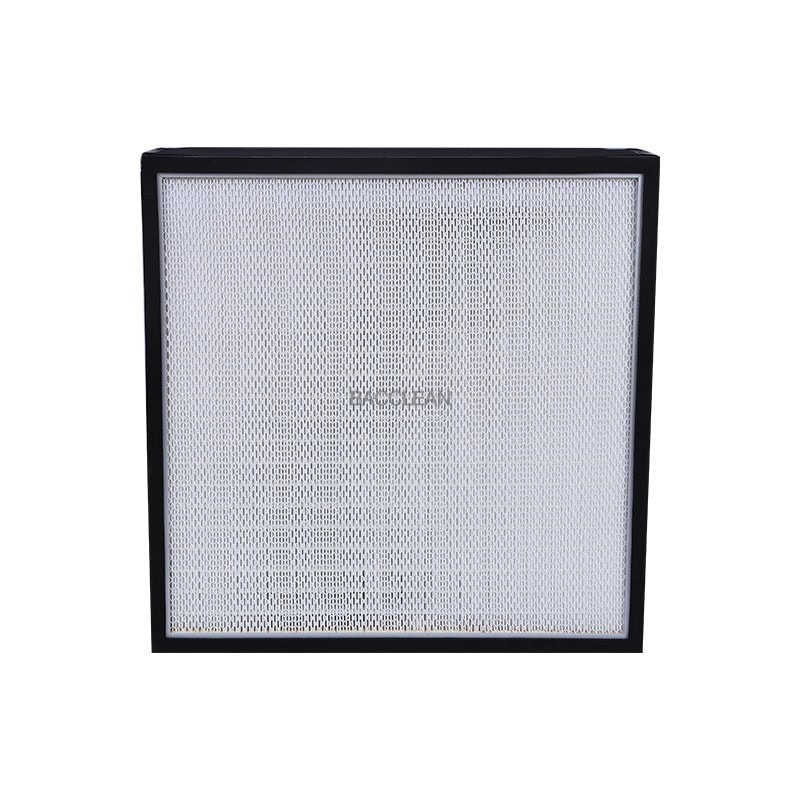

Filter material: glass fiber filter paper, PP material.
Outer frame: anodized aluminum profile, galvanized frame
| Modèle | Dimensions totales (mm)(L*H*P) | Débit d'air nominal résistance initiale (m³//h)(pa) | Vitesse du vent (m/s) | Surface du filtre (㎡) | Différents volumes d'air/résistance (m³//h)(pa) | Résistance finale recommandée(pa) | Efficacité de filtration EN1822 | |
| B59-001 | 610*610*120 | 1000/160 | 0.73 | 10.9 | 600/90 | 1450/235 | 400 | H13 |
| B59-002 | 610*915*120 | 1450/155 | 0.72 | 16.1 | 900/90 | 2200/235 | 400 | H13 |
| B59-003 | 610*1220*120 | 1920/155 | 0.72 | 21.3 | 1200/90 | 2950/235 | 400 | H13 |
| B59-004 | 610*610*150 | 1230/155 | 0.92 | 13.6 | 600/70 | 1450/190 | 400 | H13 |
| B59-005 | 610*915*150 | 1810/155 | 0.90 | 20.1 | 900/70 | 2200/190 | 400 | H13 |
| B59-006 | 610*610*220 | 1500/155 | 1.13 | 16.8 | 600/60 | 1800/190 | 400 | H13 |
| B59-007 | 610*915*220 | 2230/155 | 1.11 | 24.8 | 900/60 | 2700/190 | 400 | H13 |
| B59-008 | 610*1220*220 | 2950/155 | 1.10 | 32.8 | 1200/60 | 3600/190 | 400 | H13 |
En plus des tailles standard ci-dessous, il est possible de personnaliser la taille et l'efficacité (H13, H14) si vous le souhaitez.
It is widely used in hospital operating rooms, laboratories, biopharmaceuticals, hospitals, LED optoelectronics, circuit boards, microelectronics, hard disk manufacturing, food processing and other working environments with high cleanliness requirements or high-level purification equipment terminals with high cleanliness requirements.
