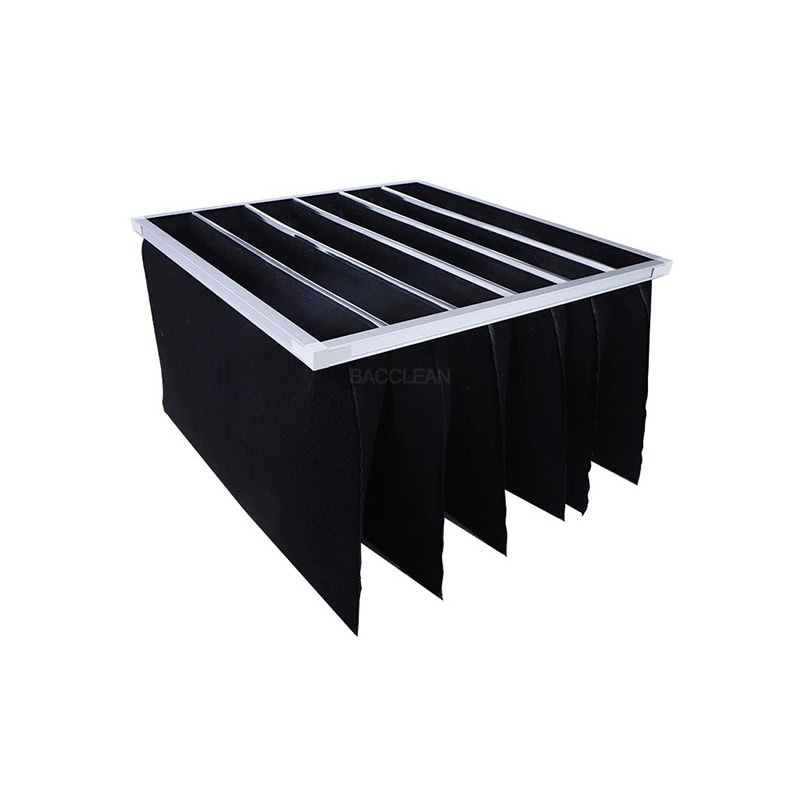

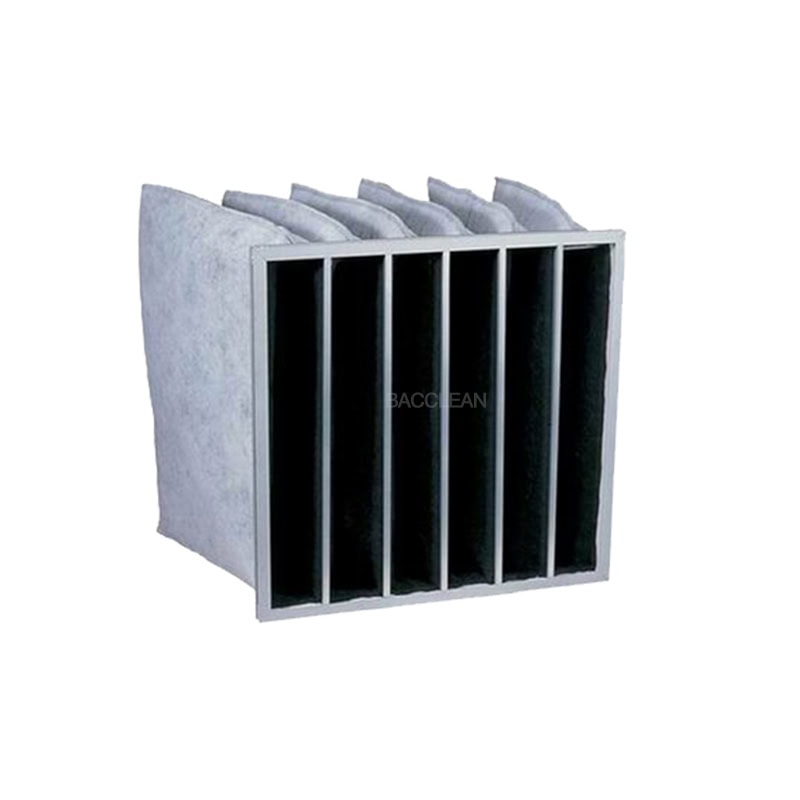

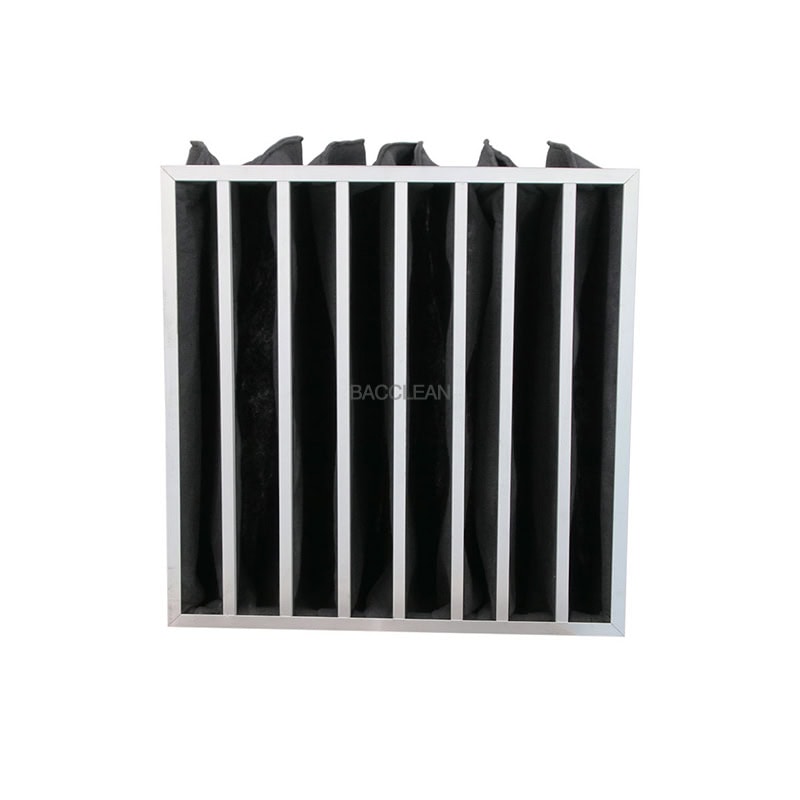

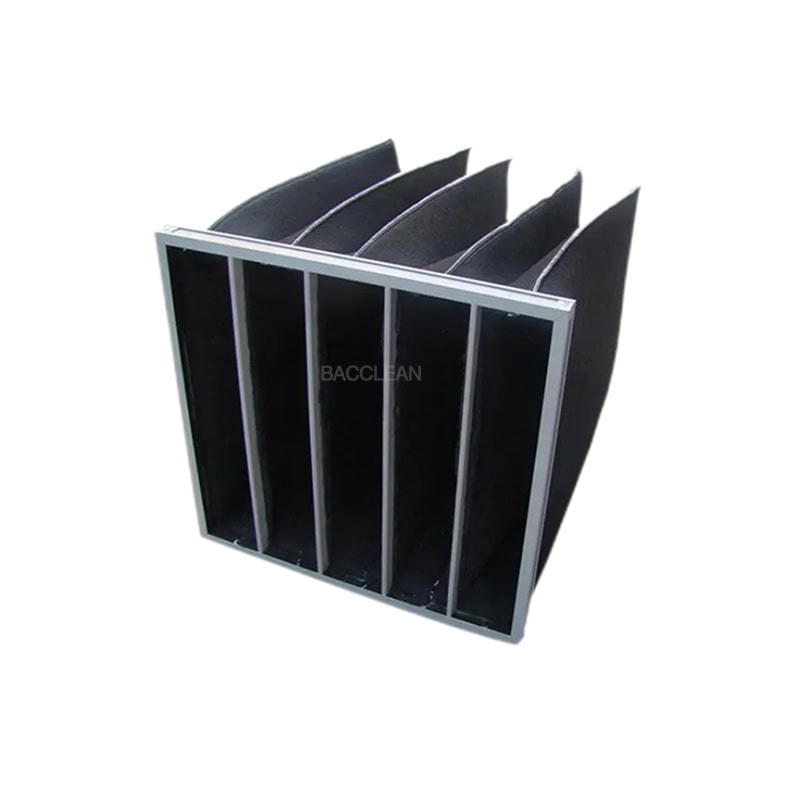

V-cell construction, Economical, long-lasting, Combine the advantages of bag filter and activated carbon to increase the filtration area while effectively removing particulate matter and harmful gases in the air.
|
Matériau du produit |
Performance et graphique |
|
Matériel de support : |
activated carbon |
|
Matériau du cadre : |
Aluminium / acier galvanisé |
|
Option aluminium Épaisseur (mm) : |
21/25 |
It is a high-efficiency air filtration device that can remove gaseous pollutants from the air. It is also called an activated carbon filter or a chemical air filter. The difference from a general air filter is that it uses activated carbon as the main filter material, which can absorb and remove harmful substances such as toxic gases, odors, and corrosive gases in the air. Due to the special function of the flat chemical filter, it can effectively improve indoor air quality, protect people’s health and improve product quality.
1. Economical, long-lasting, solution to many odor problems.
2. V-cells construction for high capacity filter.
3. Deodorization.
4. Strong surface adsorption ability
5. Ideal solution for clean room recirculation and mini environment.
6. Large air flow, low resistance,and long service life.
It is mainly composed of filter material, outer frame and activated carbon. The filter material can be made of activated carbon non-woven fabric, activated carbon particles and other materials, which have the advantages of large adsorption area, strong adsorption performance, high activated carbon content, good ventilation performance, low resistance, long life and low cost. The outer frame is generally made of aluminum frame, stainless steel frame, galvanized frame and other materials, which are corrosion-resistant, high-strength, easy to process and can meet the use requirements of different occasions.
| Model NO. | Actual Size HxWxD (mm) | Air Flow (m/h) | Media AreaFlow (m²) | Velocity (m/s) | Pocket Numbers |
| BAC-AC-001 | 287*592*381 | 1450 | 1.58 | 2.37 | 3 |
| BAC-AC-002 | 592*592*381 | 2850 | 3.18 | 2.26 | 6 |
| BAC-AC-003 | 287*592*381 | 1850 | 2.04 | 3.02 | 4 |
| BAC-AC-004 | 592*592*381 | 3700 | 4.09 | 2.93 | 8 |
| BAC-AC-005 | 287*592*500 | 1850 | 2.08 | 3.02 | 3 |
| BAC-AC-006 | 592*592*500 | 3750 | 4.17 | 2.97 | 6 |
Activated carbon pocket filter is widely used in various air conditioning and ventilation system. It is good at remove away odor and air pollution in the central part of the air conditioning and ventilation system so that the air will become cleaner and cleaner.
