Leak detection by D.O.P scanning, low resistance, high efficiency, light weight, easy installation, convenient and easy for installation and replacement
| Product material | Performance and graph |
| Media | Fibra de vidrio |
| Frame | Aluminum |
| Frame Sealant | Two-component polyurethane glue |
| Separator | EVA hot melt adhesive |
| Optional aluminum | 69 90 |
| Max. Temperature | 70ﾟC |
| Max operating humidity | 100% |
| Groove sealant | Gel seal |

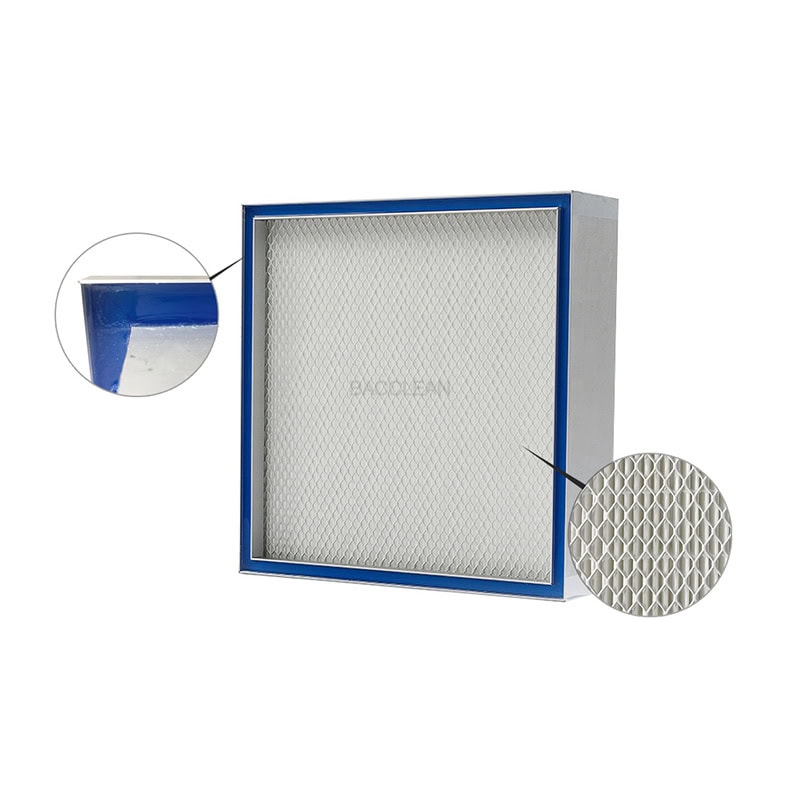

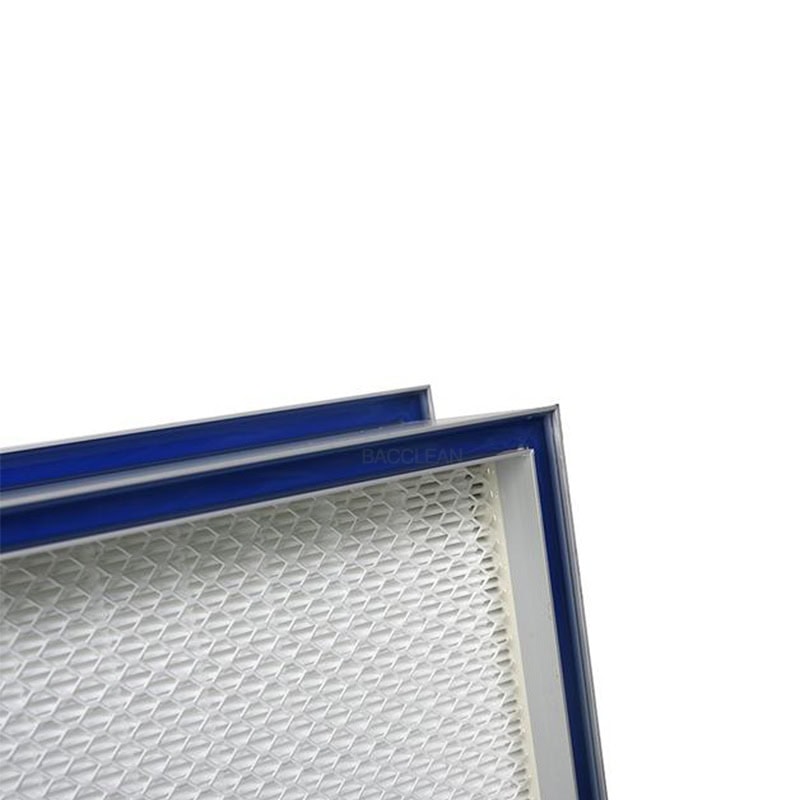

HEPA-GEL is an anti-gravity, self-healing sealant material. And The gel seal HEPA filter adopts flange inner filling jelly glue and reliable sealing. Gel Seal HEPA Air Filter uses micro fiberglass material as filter media, both air inlet side and air outlet side with melded wire protect mesh. It can remove the dust, pollen, mold, bacteria and any airborne particles with a minimum particle penetration size of 100 nanometres (0.1 µm). It is widely used in the pharmaceutical industry, industrial clean room and biological clean room, and other purification equipment.
1) The gel seal HEPA filter has the beautiful appearance, convenient installation, thin thickness, light weight and high filtration efficiency.
2) The gel seal HEPA filter has the characteristics of large filtration area, long service life and low resistance.
3) It adopts flange inner filling jelly glue and reliable sealing, also, it usually used in conjunction with the knife-type frame.
4) It is used with metal screens, which can prevent the media from damage.
5) It has large dust holding capacity.
1. Can be used to trap particles more than 0.3um as the finally filtration in clean room.
2. Large dust holding capacity . 3. Sealant around the media prevent the air filter is without any air leaking.
4. It is used with metal screens, which can prevent the media from damage.
5. Large filtration area, long work life, and low resistance.
6.Gel-type HEPA filter is in nice appearance,thin thickness, light weight and high efficiency, it is easy to install.
| Modelo | Overall dimensions(mm) (WxHxD) |
Rated airflow/ initial resistance (m³/h)/(pa) |
Wind speed (m/s) | Filter area (m²) | Filtration efficiency |
| B69-001 | 636*636*69 | 1000/190 | 0.72 | 10 | H14 |
| B69-002 | 1246*636*69 | 2000/190 | 0.71 | 19.7 | H14 |
| B69-003 | 364*364*90 | 500/230 | 1.11 | 4.2 | H14 |
| B69-004 | 510*510*90 | 1000/205 | 1.11 | 9.6 | H14 |
| B69-005 | 636*636*90 | 1500/190 | 1.10 | 15.2 | H14 |
| B69-006 | 941*636*90 | 2000/190 | 1.09 | 22.6 | H14 |
| B69-007 | 1196*596*90 | 2600/190 | 1.09 | 26.8 | H14 |
| B69-008 | 1246*636*90 | 3000/190 | 1.09 | 29.9 | H14 |
Beside the above standard sizes, it also can according the need to customize any size and efficiency H13 and H14
A circumferential U-shaped cross-section liquid tank formed by the upward bending of the surrounding frames. The ceiling installation frame is composed of a hanger, a grid-shaped installation frame body composed of an inverted U-shaped cross-section tank, a positioning support plate and bolts; the installation frame body has a number of frames surrounded by one side of the inverted U-shaped cross-section tank, the installation frame body is connected to the hanger, and a vertical threaded sleeve is arranged on the inner side, and each frame is respectively inserted into the circumferential liquid tank of each high efficiency air filter; the positioning support plate is arranged at the bottom of two adjacent liquid tanks, and is connected to the installation frame body by screwing the fastening bolts into the vertical threaded sleeve to support the high efficiency air filter.
The tank sealant used in the Gel seal HEPA filter is also called tank sealant paste or “jelly”.
Tank sealant is a non-Newtonian liquid. It is non-volatile, non-oil-climbing, non-toxic and tasteless, and has good stability at room temperature.
Tank sealing is a method that is superior to the mechanical clamping device sealing method currently commonly used in China.
The tank seal filter is easy to install and the seal is very reliable. It is a high-efficiency filter sealing method commonly used internationally.
Tank seal advantages: high sealing and good leak-proof performance.
Tank seal high-efficiency filter application: widely used in clean rooms with high requirements, large-area vertical laminar flow, 100-level laminar flow hoods and HEPA high-efficiency filter installation, etc.
It is widely used in clean rooms with high requirements, large-area vertical laminar flow, 100-level laminar flow hoods and HEPA high efficiency filter installation, the terminal filtration of cean room and the filtration unit in the GMPstandard cleanroom equipment. etc.
Our company has introduced computer-controlled fully automatic advanced production lines and proprietary manufacturing technology, using low-resistance and high-efficiency filter materials, which can be assembled with various frames. This product has reliable sealing, can reduce the labor intensity of installation workers, reduce the mezzanine space of clean workshops, and reduce the volume of static pressure boxes of purification equipment. It is especially suitable for clean equipment and workshops with high coverage of high-efficiency air filters.
