It is good at adsorption of PM2.5 and other inhalable particulate matter; it can kill bacteria, viruses and microorganisms in the air; also it can removal of pollutants such as smog and TVOC.

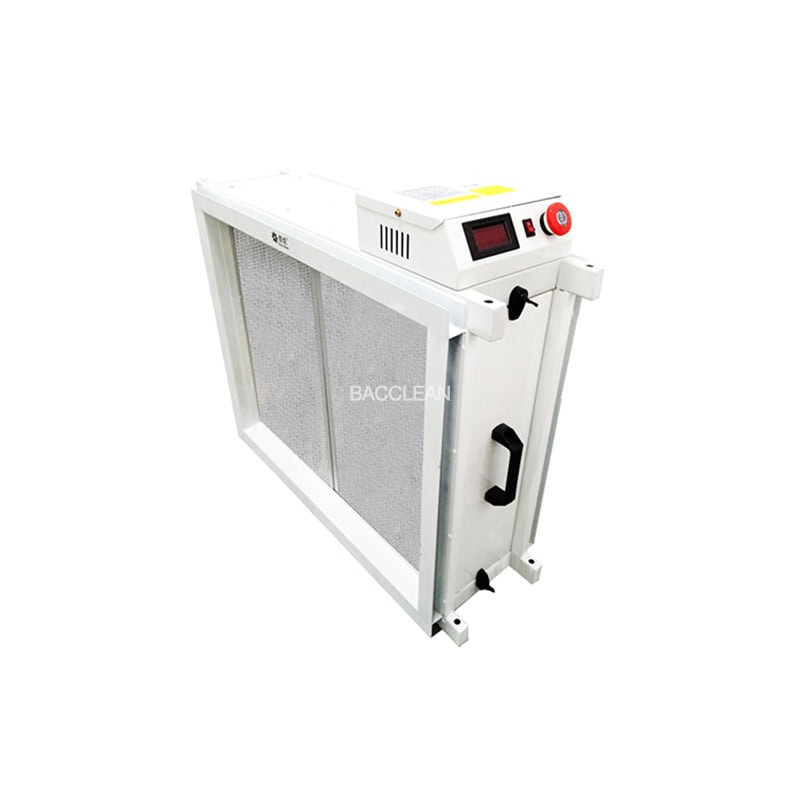

The duct electronic air purifier is composed of a metal filter, a plasma purification section, and a post-functional purification net. It uses a composite purification method to effectively physically kill bacteria, viruses, and microorganisms in the air, and purify PM2.5 and other inhalable particles and smoke. It is an essential air purification device for the central air conditioning duct ventilation system. It is connected to the air conditioning return air (supply air) duct to effectively solve the air pollution problem of the air conditioning duct. Make the air meet the indoor air quality standards (GB/T-18883-2002, GB/T-18801-2015).
Specially designed for air duct installation, with a large amount of dust accumulation.
Disinfect, sterilize, remove dust, remove PM25, decompose volatile organic gases, and remove odors.
It adopts compound purification method and multiple purification methods.
High efficiency: the one-time purification efficiency of PM2.5 is as high as 90% or more.
Linkage operation: when the air conditioner is turned on, the equipment starts to work.
Side drawer modular structure, easy to clean and maintain.
Using plasma purification technology, no consumables for life.
1. Efficiently adsorb PM2.5 and other inhalable particles;
2. Efficiently kill bacteria, viruses and microorganisms in the air;
3. Effectively remove pollutants such as smoke and TVOC；
★Specially designed for duct installation, with large dust accumulation;
★Disinfection, dust removal, PM2.5 decomposition of volatile organic gases, and odor removal; ★Adopts composite purification method and multiple purification methods;
★High efficiency: PM2.5 one-time purification efficiency is as high as 90% or more;
★Linked operation: The equipment starts working when the air conditioning equipment is turned on;
★Side drawer modular structure, convenient for cleaning and maintenance;
★Adopts plasma purification technology, no consumables for life;
| Model NO | BAC-DEAP-03 | BAC-DEAP-02 | BAC-DEAP-03 | BAC-DEAP-04 | BAC-DEAP-05 |
| Cabinet size(mm) | 465x561x255 | 780x561x255 | 1095x561x255 | 1410x561x255 | 1095x1021x255 |
| Flange size(mm) | 315×410 | 630×410 | 945×410 | 1260×410 | 945×870 |
| Air flow(m/h) | 2000 | 4500 | 7000 | 10000 | 18000 |
| Power (w) | 10 | 20 | 30 | 40 | 80 |
| Removal of formaldehyde &TVOC etc | 90% | ||||
| Ozone(mg/m) | 0.004 | ||||
| Sterilization rate | 99.90% | ||||
| Voltage frequency(VHz) | 220/50 | ||||
| Pressure (Pa) | <20 | ||||
| Control way | Wind sensor/linkage operation or wind individual control | ||||
| Working life | 10-15 Year | ||||
| Installation | Hoisting (中8 screw), flange connection | ||||
| location | |||||
| Electronic control part |
Electric control design such as arc protection, temperature and pressure protection, over temperature and overload protection, constant current and constant voltage, grounding protection,short circuit protection, etc. |
||||
is composed of a metal filter, a plasma purification section, and a post-functional purification net. It uses a composite purification method to effectively physically kill bacteria, viruses, and microorganisms in the air, and purify PM2.5 and other inhalable particles and smoke. It is an essential air purification device for the central air conditioning duct ventilation system. It is connected to the air conditioning return (supply) duct to effectively solve the air pollution problem of the air conditioning duct. Make the air meet the indoor air quality standards (GB/T-18883-2002, GB/T-18801-2015).
