Color steel plateIt can be made of a variety of core materials such as rock wool, paper honeycomb, glass magnesium board, aluminum honeycomb, magnesium oxysulfide, silica rock, gypsum, etc., and a variety of panel materials such as color steel plate, color-coated aluminum alloy plate, stainless steel plate, titanium zinc plate, et.

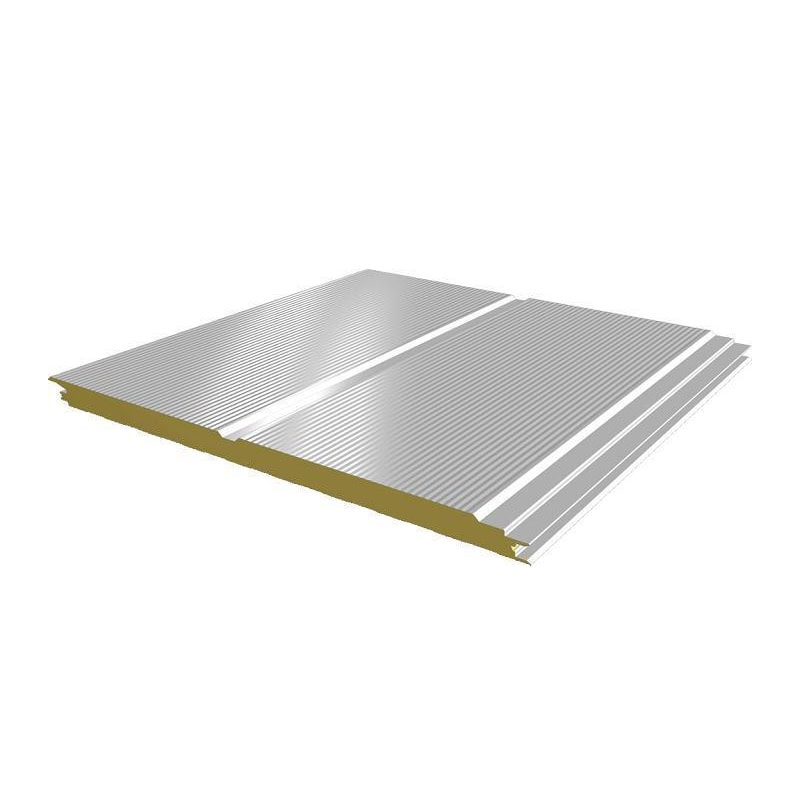

The tongue-and-groove insertion type is often used, which has the advantages of easy installation, time saving, material saving, good flatness and high strength. It is especially suitable for suspended ceilings and partition systems.

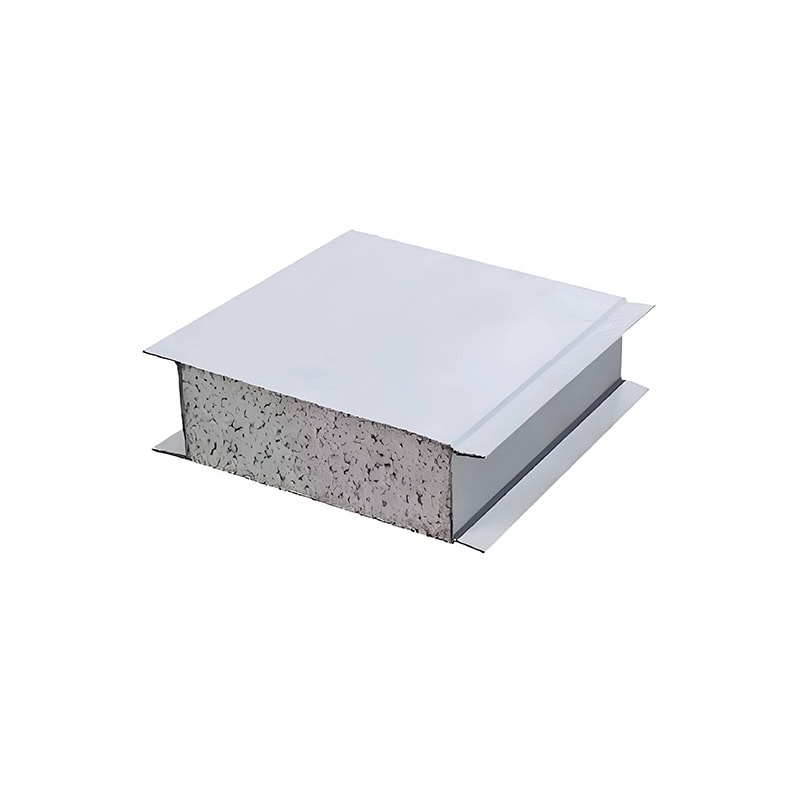

They are composed of two layers of formed metal panels (or other material panels) and a polymer insulation core that is foamed and matured directly between the panels. These finished sandwich panels are easy to install, lightweight and efficient. The filling system also uses a closed cell molecular structure to prevent condensation of water vapor.
The commonly used thermal insulation materials for the color steel composite board are: rock wool, glass fiber wool, polystyrene (EPS), polyurethane, etc., with low thermal conductivity, so that mobile houses, integrated houses, steel structure workshops, etc. have good thermal insulation effects. High-strength color steel plate uses high-strength steel plate as the base material (tensile strength 5600kg/cm) plus the most advanced design and rolling forming. Therefore, the color steel plate mobile house has excellent structural characteristics.
Specifications (mm)
| Width: | Center box panel: 980/1,180, Tongue and groove panel: 950/1,150 |
| Length: | Wall panel 100-9,000, Ceiling panel 100-3,500 |
| Thickness: | 50/75/100/150 |
| Panel thickness: | 0.4-0.8 |
| Panel material: | Color-coated steel plate, color-coated aluminum alloy plate, stainless steel plate, titanium zinc plate |
| Surface coating: | PE (polyester), PVDF (fluorocarbon), HDP (high weather-resistant polyester) |
| Note: | Non-standard specifications can be customized according to customer needs. |
Applications include electronics and computer product manufacturing，medical supplies and pharmaceutical production,aerospace，precision instrument manufacturing，food production, medical operating rooms and other industries. Although some workshops do not require high cleanliness, in view of the flexible disassembly and assembly characteristics of sandwich panels, a large number of sandwich panels are used as partition walls inside the workshop. Such as Rock wool board and Glass magnesium board.
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as wecan.
