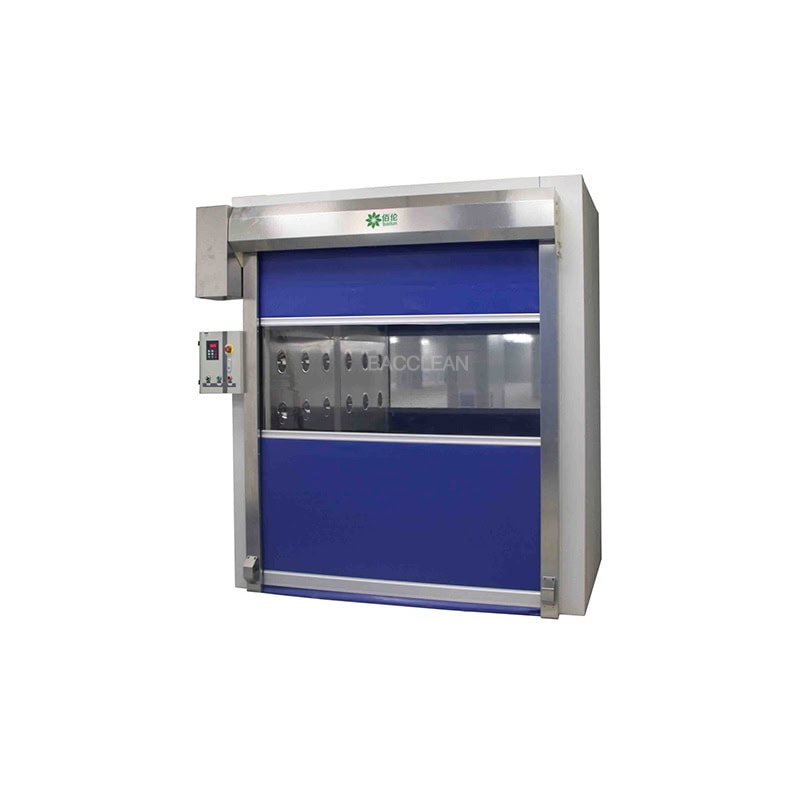

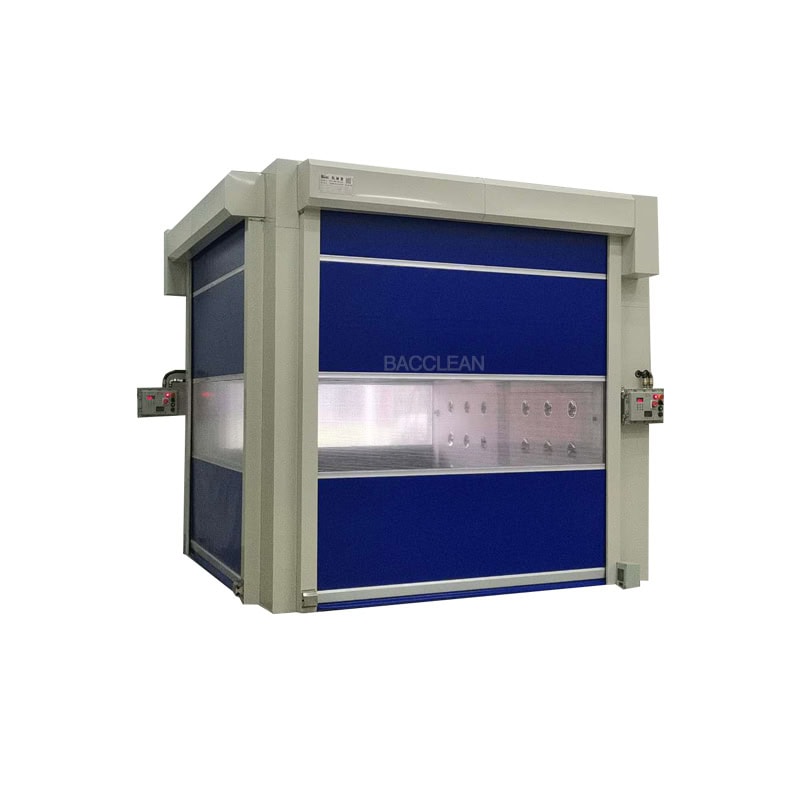

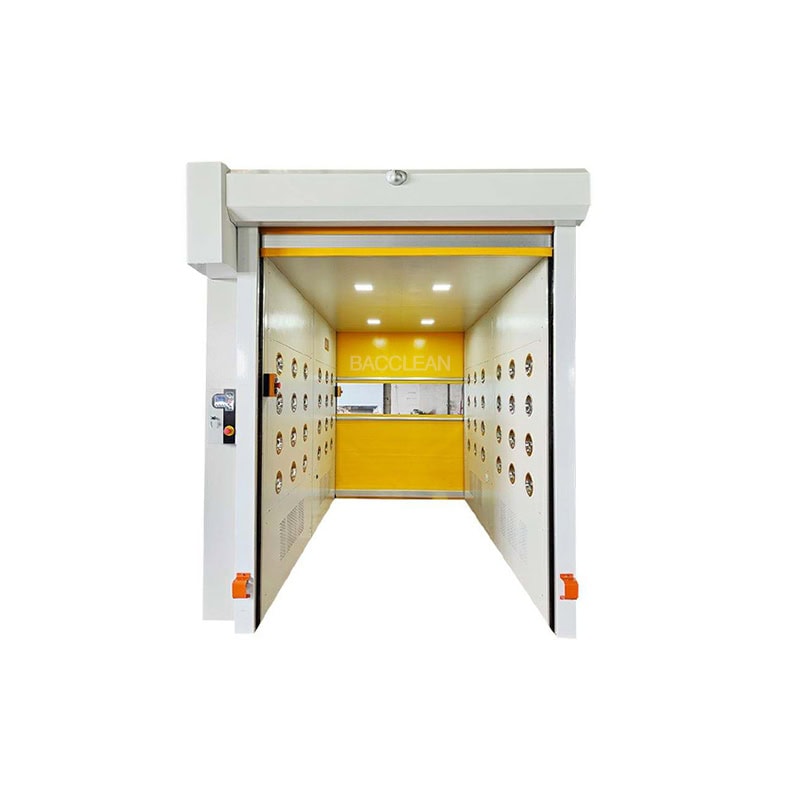

Cargo air shower with rolling door adopts advanced infrared sensor automatic door, which can be automatically opened and closed during the entire dust blowing process
| warranty | 1 Year |
| power(w) | 780 |
| Air shower time | 0-99s |
| HEPA filter | H13 |
| Lock | electronic interlock |
| Nozzles | Stainless steel |
| Door matrial | Stainlesss steel/ steel with powder coated |
| External material | Stainlesss steel/ steel with powder coated |
| Internal material | Stainlesss steel/ steel with powder coated |
| Wind Speed | >22m/s |
| Voltage | 380V/220V |
| Certification | CE ISO9001:2015 |
The cargo air shower room is a kind of local purification equipment with strong versatility. It is installed on the partition wall between the clean room and the non-clean room, and is used for blowing and dust removal when people or objects enter the clean area. After use, it can effectively reduce the dust source entering the clean area, so that the clean area can maintain normal working conditions. The cargo air shower room is used to blow away the dust attached to the surface of people and objects, and at the same time acts as an airlock to prevent unpurified air from entering the clean area. It is an effective equipment for purifying people and materials and preventing outdoor air from invading the clean area. It can be used in conjunction with clean rooms and clean workshops. The air shower room can be equipped with a heater according to user needs. It can be heated in winter and the temperature is adjustable. In addition to having a certain purification effect, the air shower room serves as a boundary for entering the clean area and has a warning function, which is conducive to regulating the activities of clean room personnel in the clean room.
1. The material is made of cold-rolled steel plate paint or stainless steel plate, it is full of stainless steel.
2. It operates by automatic control unit , the double doors can be opened or closed automatically by electronic interlock and photoelectric sensor. The entire blowing is fully automated.
3. With a software touch-type time relay, the time for showering is adjustable between 0-99 seconds on display
4. Equipped with both primary filter and HEPA filter, the efficiency is up to 99.99%.
5. Equipped with large winds and low noise fans, the wind speed of the air outlet is above 25m/s.
The rolling door has strong performance, without dust accumulation, it is much more efficient, stability, waterproof and easy to clean.
• Strong structure and stable performance
• Intelligent microcomputer control panel
• Excellent filtering and dust removal performance
• High-speed spraying
1. Strong structure and quick installation. Cargo air shower room is made of high-quality imported materials, modular design, easy to assemble between partitions, and beautiful appearance.
2. Intelligent microcomputer control panel, easy to operate. The inside of the air shower room is equipped with an intelligent touch-type film control panel, which is convenient for setting the mode and blowing time. The photoelectric sensor control at the bottom provides automatic spraying and circulating air shower.
3. Equipped with primary filter and high-efficiency non-partition filter. After the air in the air shower room is pre-filtered by the primary filter, it is pressed into the static pressure box by the low-noise centrifugal fan, and then filtered by the high-efficiency filter and sprayed out from the nozzle at high speed to remove dust attached to the surface of people and goods, and prevent dust from entering the clean room with the human body and goods, thereby causing pollution.
4. The spray wind speed can be as high as 26 meters per second. The all-stainless steel nozzle can adjust the blowing direction at will, and the blowing time can also be selected within a certain range, effectively achieving the purpose of air shower purification.
| Model | BAC-CAS-A01 | BAC-CAS-A02 | BAC-CAS-A03 | BAC-CAS-A04 | BAC-CAS-A05 | |
| External size(mm) | 2000*2680*2500 | 2000*2680*2500 | 2500*3680*2500 | 4500*2680*2500 | 4500*3680*2500 | |
| Internal size (mm) | 1500*2000*2000 | 2000*2000*2000 | 2000*3000*2000 | 4000*2000*2000 | 40003000*2000 | |
| Number of nozzles(pcs) | 24 | 24 | 36 | 12 | 36 | |
| Noise dB(1m from the device) | ≦63 | |||||
| Motor | Power supply(V/HZ) | 380/50 | ||||
| Power(W) | 550 | 550 | 550 | 550 | 550 | |
|
Air volume (m³/h) |
1200 | 1200 | 1200 | 1200 | 1200 | |
|
Pre-Filter |
Size(mm) |
775*380*21 | ||||
| Quantity (pcs) | 4 | 4 | 6 | 4 | 6 | |
| HEPA Filter | Size(mm) | 630*630*69 | ||||
| Quantity (pcs) | 4 | 4 | 6 | 4 | 6 | |
| Total power(W) | 3740 | 3740 | 4850 | 3740 | 4850 | |
It is widely used in many industries, such as electronics, microelectronics, precision instruments, medical, SMT, food processing, dust free spraying and so on.
