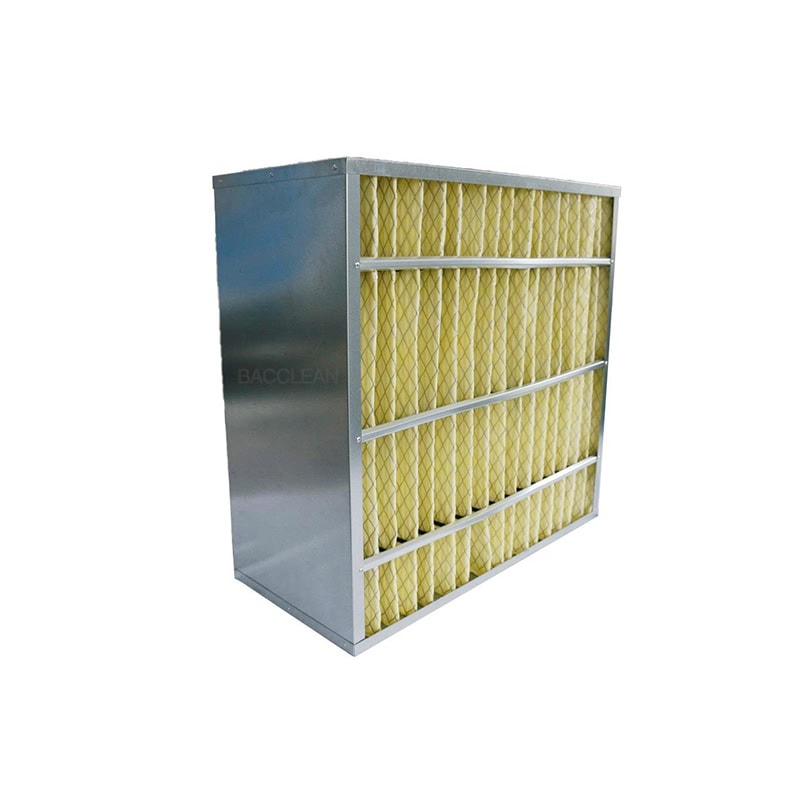

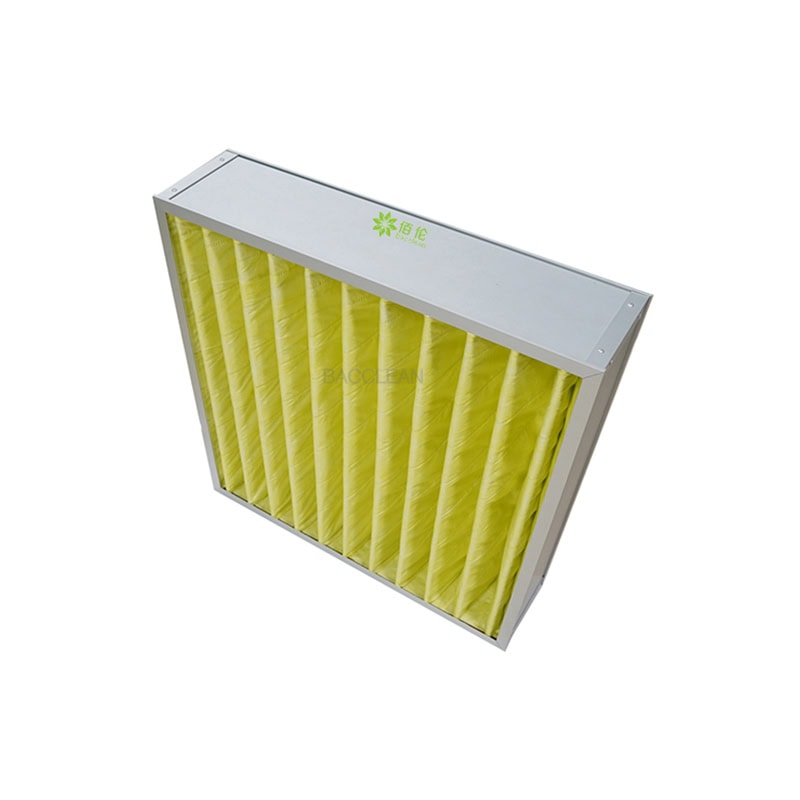

Box type filters, as a final HEPA stage, is designed in box type with strong strength frame, and it has large air volume and dust holding capacity.
|
Media material : |
Synthetic fiber |
|
Frame material : |
Aluminum / Galvanized steel |
|
Efficiency: |
45%~95%@0.5μm |
|
Aluminum optionalthickness(mm) : |
69/90/120/150/220/292 |
|
Max operating temperature : |
80 degree centigrade |
|
Max operating humidity : |
100% |
Box type filters, as a final HEPA stage, is designed in box type with strong strength frame, and it has large air volume and dust holding capacity. It is a practical air filter designed specifically for the high-efficiency filter section in the HVAC system. Due to its advantages such as dust holding capacity and high economical practicality of the box structure, it is an indispensable product for the medium-efficiency filter section. It is a supplement to the bag filter in another structure. In some equipment, it is the accessory selected by the design institute. Because the box filter has the option of replacing the filter material and the filtration area is larger, it has more special advantages than the medium-efficiency bag filter.
1. It can filter micro particles in spray booth air inflow system.
2. Dust removal in Painting equipment, painting system and painting workshop.
3. Secondary filtering in high-quality painting system and air intake system of baking equipment.
4. Medium filter media for producing air filter.
5. It can be customized in pad with frame.
6.Effective filtration area, low resistance. And long service life.
Frame: Aluminum alloy or galvanized steel plate
Filter material: Synthetic fiber V structure
Protective net: Aluminum net or galvanized wire mesh
EN 779 level: F6, F7, F8, F9
Final resistance: (recommended) 400Pa-(maximum) 500Pa Maximum
air volume: 125% of rated air volume
Temperature resistance: 100℃
| Model | Overall dimensions (mm)(W*H*D) |
Rated air flow initial resistance (m³/h)(pa) |
Wind speed (m/s) | Filter area (㎡) | Different air volume/resistance (m³/h)(pa) | Recommended final resistance(pa) | Filtration efficiency En779 | |
| B45-001 | 490*592*292 | 2440/50 | 2.3 | 3.7 | 1920/40 | 2880/60 | 200 | F5 |
| B45-002 | 490*592*292 | 2440/65 | 2.3 | 3.7 | 1920/50 | 2880/80 | 200 | F6 |
| B45-003 | 490*592*292 | 2440/105 | 2.3 | 3.7 | 1920/85 | 2880/125 | 200 | F8 |
| B45-004 | 592*592*292 | 2890/50 | 2.3 | 4.5 | 2310/40 | 3460/60 | 200 | F5 |
| B45-005 | 592*592*292 | 2890/65 | 2.3 | 4.5 | 2310/50 | 3460/80 | 200 | F6 |
| B45-006 | 592*592*292 | 2890/80 | 2.3 | 4.5 | 2310/65 | 3460/95 | 250 | F7 |
| B45-007 | 592*592*292 | 2890/105 | 2.3 | 4.5 | 2310/85 | 3460/125 | 250 | F8 |
| B45-008 | 592*592*292 | 2890/120 | 2.3 | 4.5 | 2310/95 | 3460/145 | 250 | F9 |
Beside the below standard sizes, it can be customized any size and efficiency (G1, G2, G3, G4, F5, F6, F7,F8, F9) if you need.
Machinery,electronics,instrumentation,precision instruments,food industry and the general air conditioning and ventilation system intermediate filter for pre-filtration of the high efficiency filter.
