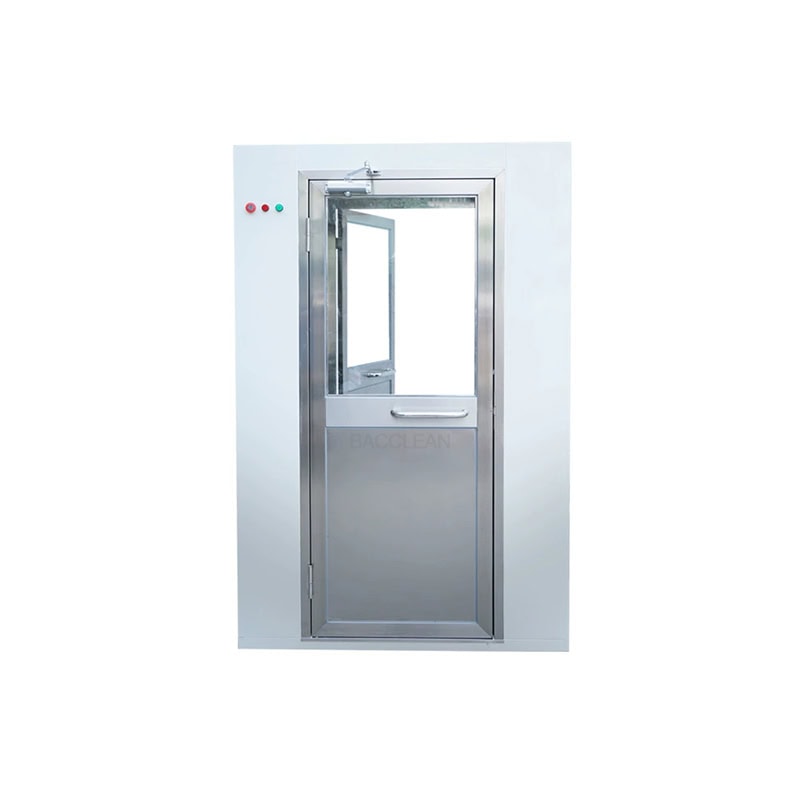

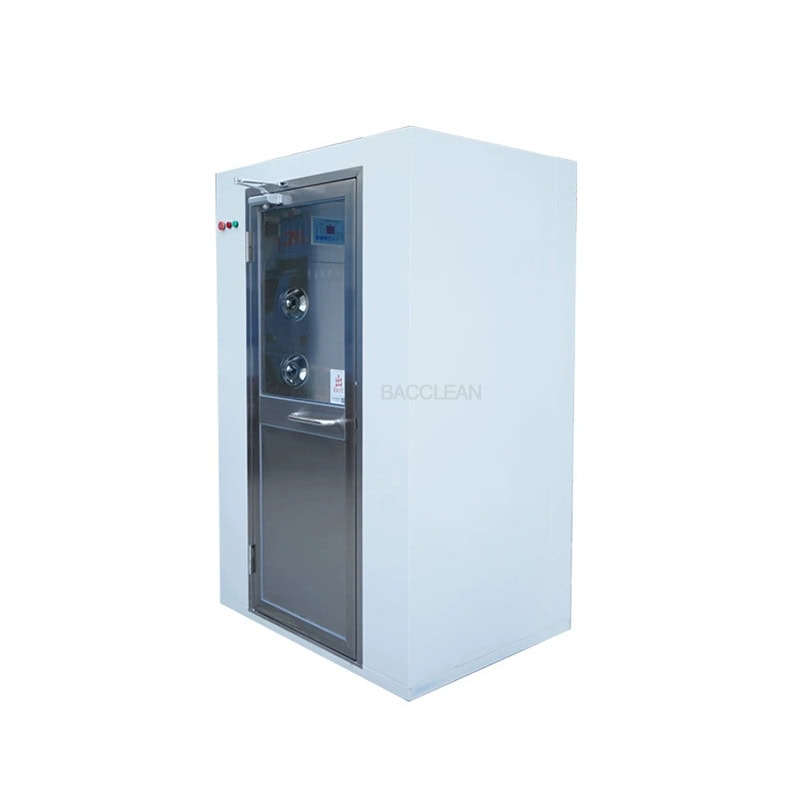

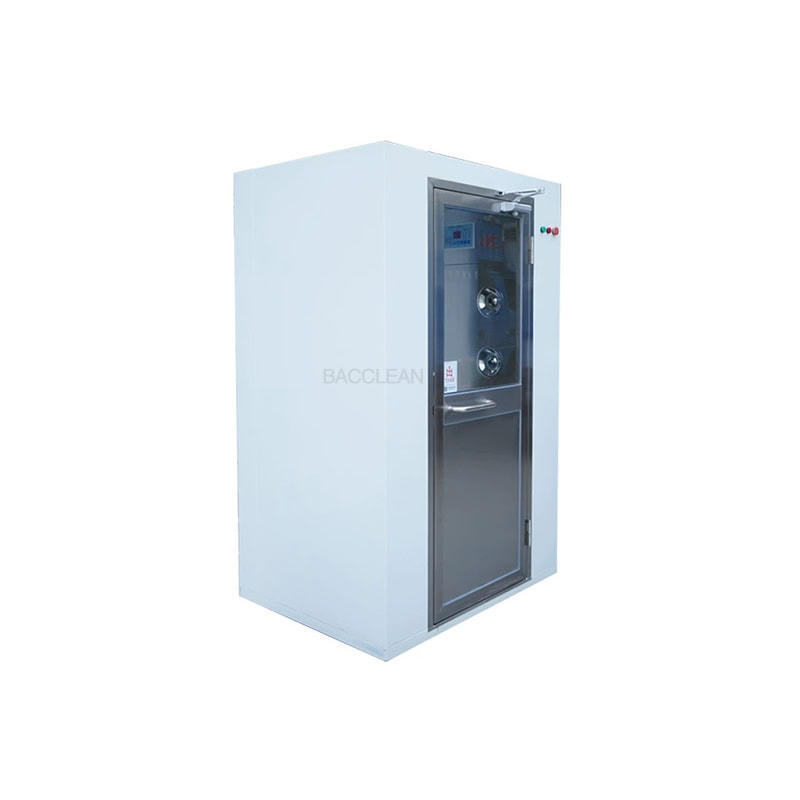

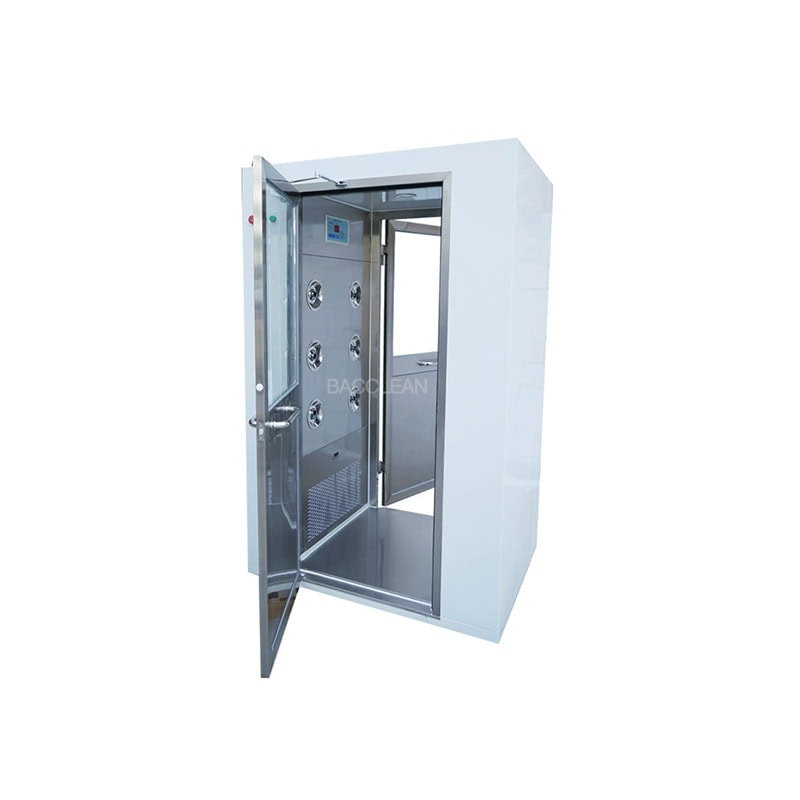

The automatic door air shower room is a local purification device that can sense people approaching and actively control the door opening and closing.
| warranty | 1 Year |
| power(w) | 780 |
| Air shower time | 0-99s |
| HEPA filter | H13 |
| Lock | electronic interlock |
| Nozzles | Stainless steel |
| Door matrial | Stainlesss steel/ steel with powder coated |
| External material | Stainlesss steel/ steel with powder coated |
| Internal material | Stainlesss steel/ steel with powder coated |
| Wind Speed | >22m/s |
| Voltage | 380V/220V |
| Certification | CE ISO9001:2015 |
The air shower room is a kind of local purification equipment with strong versatility. It is installed on the partition wall between the clean room and the non-clean room, and is used for blowing and dust removal when people or objects enter the clean area. After use, it can effectively reduce the dust source entering the clean area, so that the clean area can maintain normal working conditions. The air shower room is used to blow away the dust attached to the surface of people and objects, and at the same time acts as an airlock to prevent unpurified air from entering the clean area. It is an effective equipment for purifying people and materials and preventing outdoor air from invading the clean area. It can be used in conjunction with clean rooms and clean workshops. The air shower room can be equipped with a heater according to user needs. It can be heated in winter and the temperature is adjustable. In addition to having a certain purification effect, the air shower room serves as a boundary for entering the clean area and has a warning function, which is conducive to regulating the activities of clean room personnel in the clean room.
1. The interior control system is fully-automatic infrared induction.
2. It adopts stainless steel handle, thick stainless steel base plate and stainless steel nozzle.
3. Doors can be opened or closed automatically.
4. It adopts two kinds of primary filter and HEPA filter with 99.99% efficiency.
5. It is equipped with the large air volume and low noise fan.
6. It is equipped with a software touch-type time relay.
• Strong structure and stable performance
• Intelligent microcomputer control panel
• Excellent filtering and dust removal performance
• High-speed spraying
| Model | BAC-AAS-B01 | BAC-AAS-B02 | BAC-AAS-B03 | BAC-AAS-B04 | BAC-AAS-B05 | |
| External size (mm) | 1200*1000*2180 | 1200*2000*2180 | 1200*3000*2180 | 1200*1500*2180 | 1300*1000*2180 | |
| Internal size (mm) | 800*930*1910 | 800*1930*1910 | 800*2930*1910 | 800*1430*1910 | 800*930*1910 | |
| Number of nozzles(pcs) | 12 | 24 | 36 | 16 | 12 | |
| Noise dB(1m from the device) | ≦63 | |||||
| Motor | Power supply(V/HZ) | 380/50 | ||||
| Power(W) | 750 | |||||
| Air volume (m³/h) | 1500 | |||||
|
Pre-Filter |
Size(mm) | 775*380*21 | ||||
| Quantity (pcs) | 1 | 2 | 3 | 1 | 1 | |
| HEPA Filter | Size(mm) | 630*630*69 | 630*630*69 | 630*630*69 | 630*630*69 | 630*630*69 |
| Quantity (pcs) | 1 | 2 | 3 | 1 | 1 | |
| Total power(W) | 870 | 1620 | 2370 | 870 | 870 | |
1. Strong structure and quick installation.Air shower room is made of high-quality imported materials, modular design, easy to assemble between partitions, and beautiful appearance.
2. Intelligent microcomputer control panel, easy to operate. The inside of the air shower room is equipped with an intelligent touch-type film control panel, which is convenient for setting the mode and blowing time. The photoelectric sensor control at the bottom provides automatic spraying and circulating air shower.
3. Equipped with primary filter and high-efficiency non-partition filter. After the air in the air shower room is pre-filtered by the primary filter, it is pressed into the static pressure box by the low-noise centrifugal fan, and then filtered by the high-efficiency filter and sprayed out from the nozzle at high speed to remove dust attached to the surface of people and goods, and prevent dust from entering the clean room with the human body and goods, thereby causing pollution.
4. The spray wind speed can be as high as 26 meters per second. The all-stainless steel nozzle can adjust the blowing direction at will, and the blowing time can also be selected within a certain range, effectively achieving the purpose of air shower purification.
They are widely used in many industries, such ad electronic, mircroelectronics, precision instruments, medical and medical, SMT, food processing, dust-free spraying and so on.
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as wecan.
