It has high strength and can withstand large air volume. It is generally used at the front end of high-efficiency filters to filter dust particles of 1-5um. It has the advantages of low resistance and large air volume.
|
Media material : |
Glass fiber/Active carbon granule(ACG) |
|
Frame material : |
Plastic |
|
Gasket material : |
EVA |
|
optionalthickness(mm) : |
292 |
|
Sealant : |
Put two-component polyurethane glue |
|
Max operating temperature : |
70°C |
|
Max operating humidity : |
100% |
|
Separator : |
EVA hot melt adhesive |

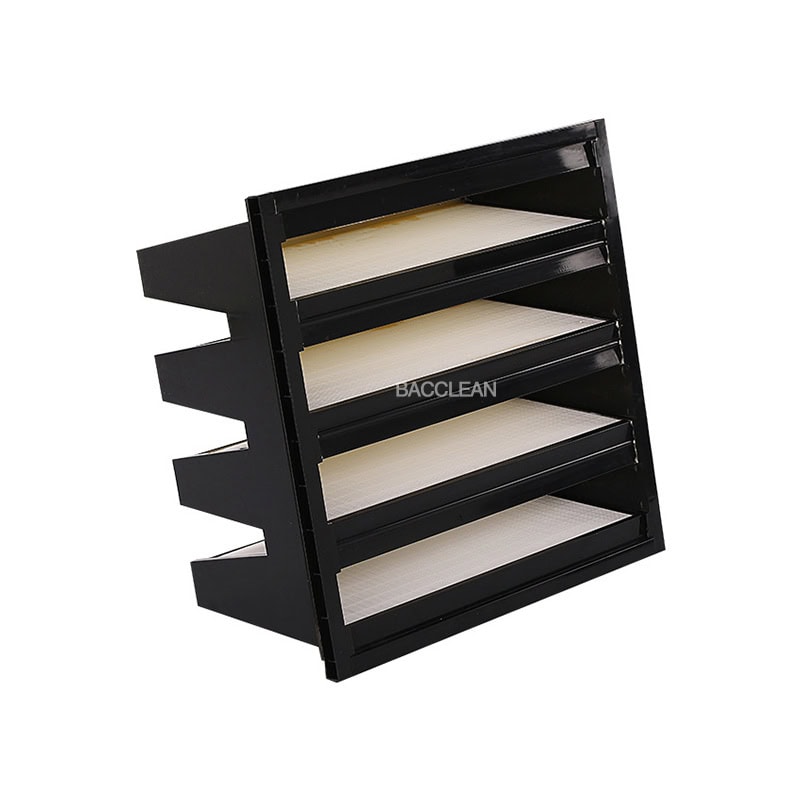

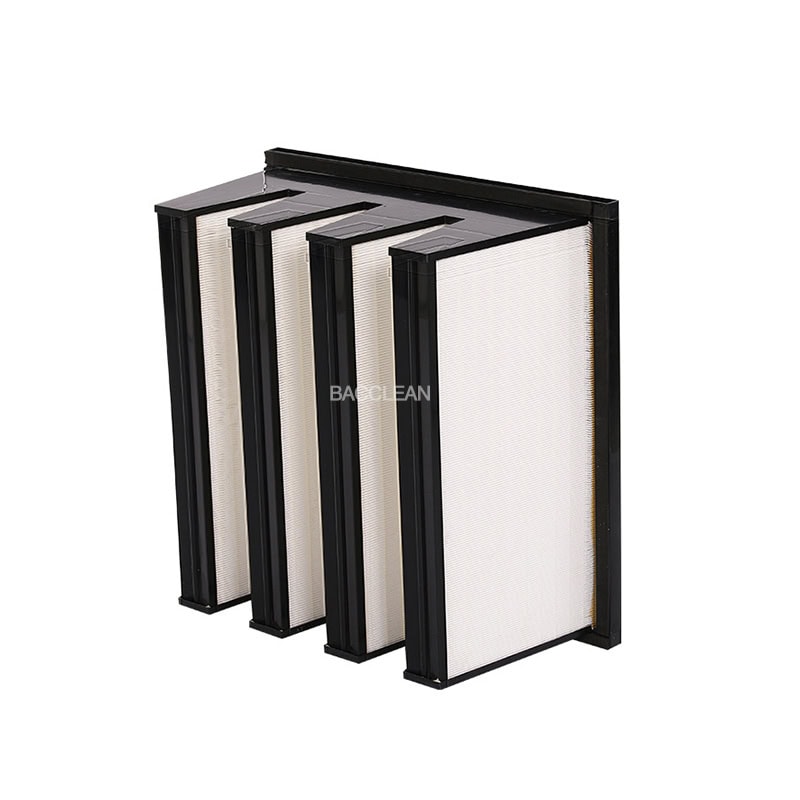

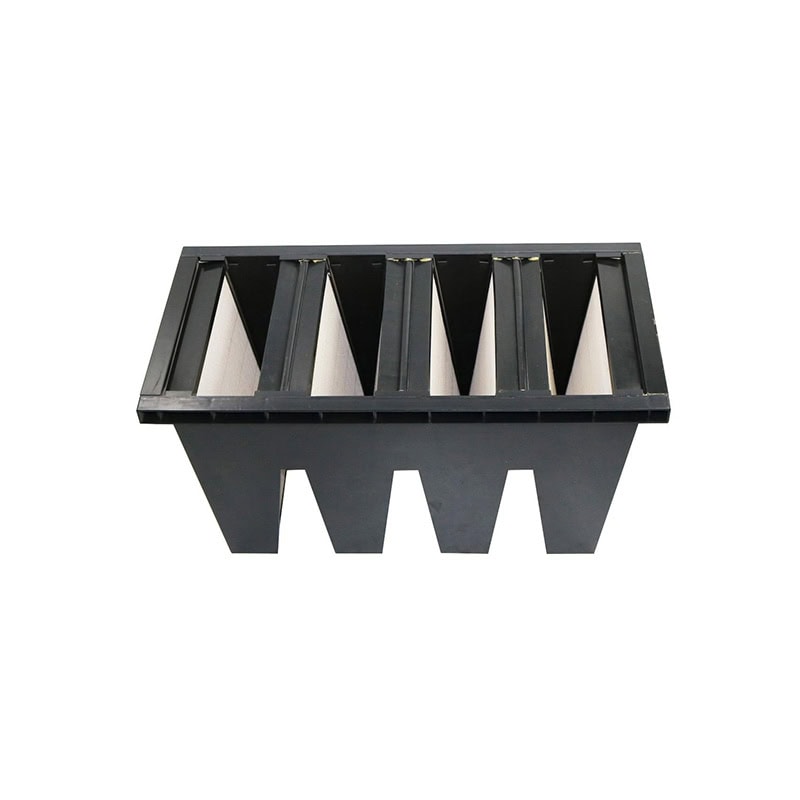

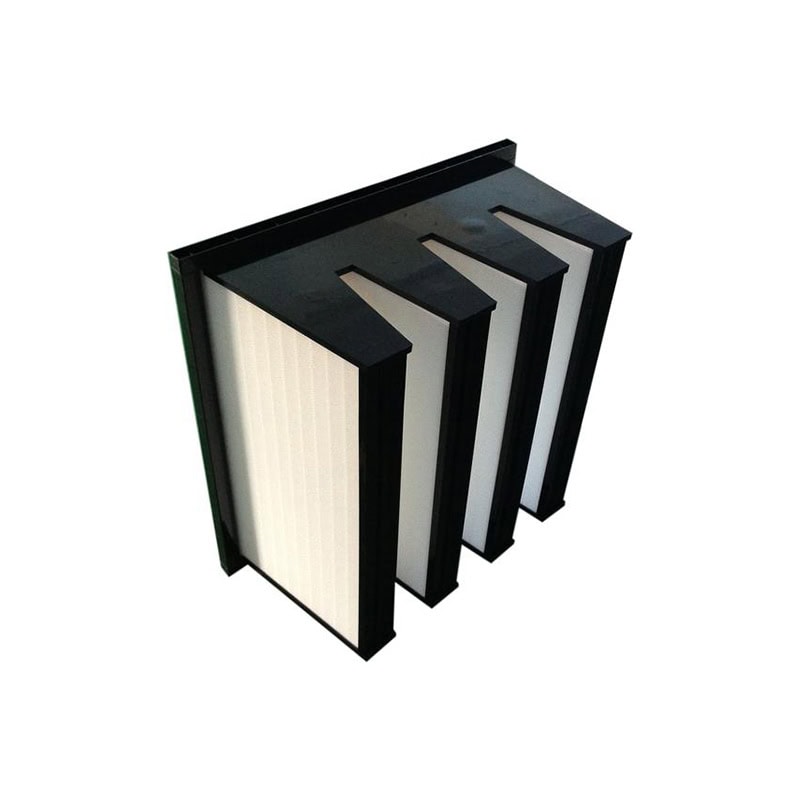

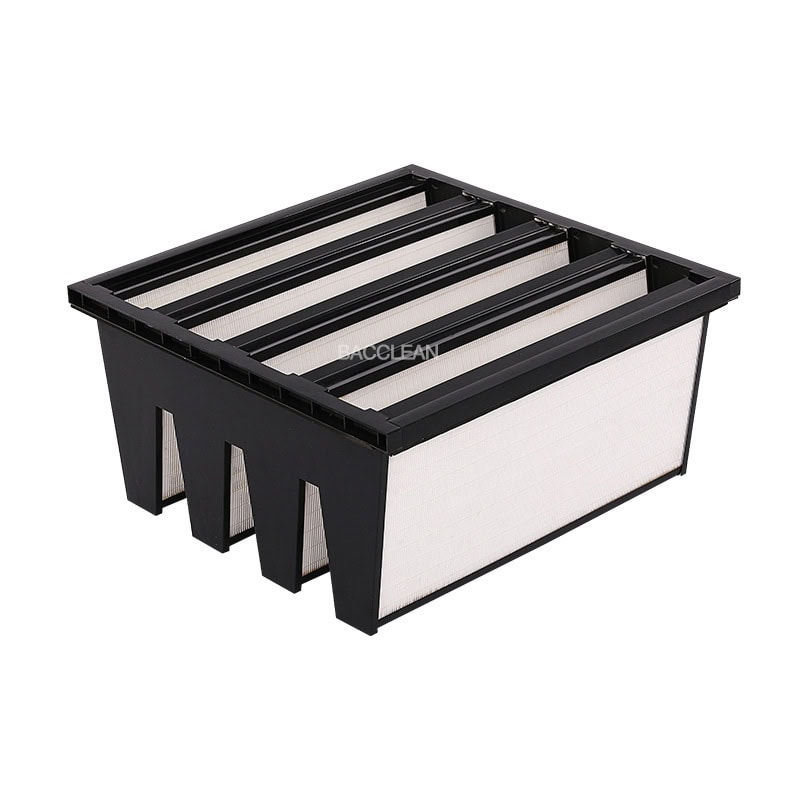

It is also called the W-type box dust screen. It is generally made of ultra-fine moisture-proof ultra-fine glass fiber or PP material, and is suitable for air conditioning systems with constant airflow and variable airflow. The thermoplastic adhesive ensures equidistant pleats, ensuring that the airflow passes with minimal resistance, while also ensuring a larger dust holding capacity, thereby reducing energy consumption and saving operating costs. The combined medium efficiency filter has a compact structure, which greatly reduces the weight of the filter itself and provides convenience for installation. The design of the double-sided metal protective net also greatly reduces the chance of damage during installation and transportation.
1. Large filter area, low resistance, long service life.
2. It is an environmentally friendly multi-V non-partition air filter for ventilation.
3. The flange frame is installed and can be interchanged with the commonly used bag filter.
4. It uses water-resistant ultra-fine glass fiber filter paper and the outer frame is made of polystyrene plastic, which can be completely incinerated.
Type: V-type, W-type, single convex, box type Outer frame: ABS plastic frame, aluminum frame, galvanized frame Filter material: glass fiber filter paper, PP, PTFE Protective net: paint net, aluminum mesh Ω-type sealing pad to ensure the sealing of the product and easy replacement Large filtration area, low resistance, long service life, and reduced cost Unique design and vertical pleats of filter material are the guarantee for long-term use in wet or humid environment Efficiency: F6 (EN779) 60-80% ASHRAE52/76 F7 (EN779) 80-90% ASHRAE52/76 F8 (EN779) 90-95% ASHRAE52/76 F9 (EN779) 95-98% ASHRAE52/76 Recommended final resistance: 600Pa
Easy to install
Complies with EN1822 standard, CLASS F6-F9
High efficiency, low resistance, low pressure loss, high dust holding capacity
Filter material: glass fiber filter paper
Outer frame: galvanized iron frame, ABS plastic, stainless steel
Separator: thermoplastic glue
| الطراز | Overall dimensions (mm)(W*H*D) | Rated air flow initial resistance (m³/h)(pa) | Pack (V) | Filter area (㎡) |
Different air volume/resistance (m³/h)(pa) |
Recommended final resistance(pa) | Filtration efficiency EN1822 | |
| BA-A01 | 287*287*292 | 770/155 | 2 | 4.7 | 440/90 | 660/135 | 350 | F8 |
| BA-A02 | 287*592*292 | 1150/150 | 3 | 7.1 | 910/120 | 1370/180 | 350 | F8 |
| BA-A03 | 592*592*292 | 2490/150 | 3 | 15.4 | 1890/115 | 2820/170 | 350 | F8 |
| BA-A04 | 287*592*292 | 1020/105 | 4 | 9.5 | 910/95 | 1370/140 | 350 | F8 |
| BA-A05 | 490*592*292 | 1810/100 | 4 | 16.8 | 1900/110 | 2650/150 | 350 | F8 |
| BA-A06 | 592*592*292 | 3310/155 | 4 | 20.5 | 2300/110 | 3200/150 | 350 | F8 |
| BA-A07 | 305*610*292 | 2050/155 | 5 | 12.6 | 1500/115 | 1900/145 | 350 | F8 |
| BA-A08 | 610*610*292 | 4280/155 | 5 | 26.4 | 3010/110 | 3800/140 | 350 | F8 |
Beside the above standard sizes, it can be customized any size and efficiency (F5, F6, F7,F8, F9, H10, H11, H12, H13, H14) if you need.
Maximum humidity: ≤100%RH
Maximum operating temperature: 80℃±5
Thickness: 290mm, 292mm, 295mm.
It is generally used in electronics, pharmaceutical industry, hospital operating rooms, semiconductor factories, pharmaceutical factories, air-conditioning units and other purification equipment terminal filtration and other occasions that require high cleanliness but have limited installation space.
