High efficiency, good sealing, low resistance, long working life, and light weight, convenient and easy for installation and replacement .
| Material and Operation Conditions | |
| Media | Glass fiber |
| Frame | Cardboard |
| Gasket | EVA//Neoprene |
| Efficiency | F5-H14 |
| Media material optional | Glass fiber+ activated carbon filter |
| Max. Temperature | 70ﾟC |

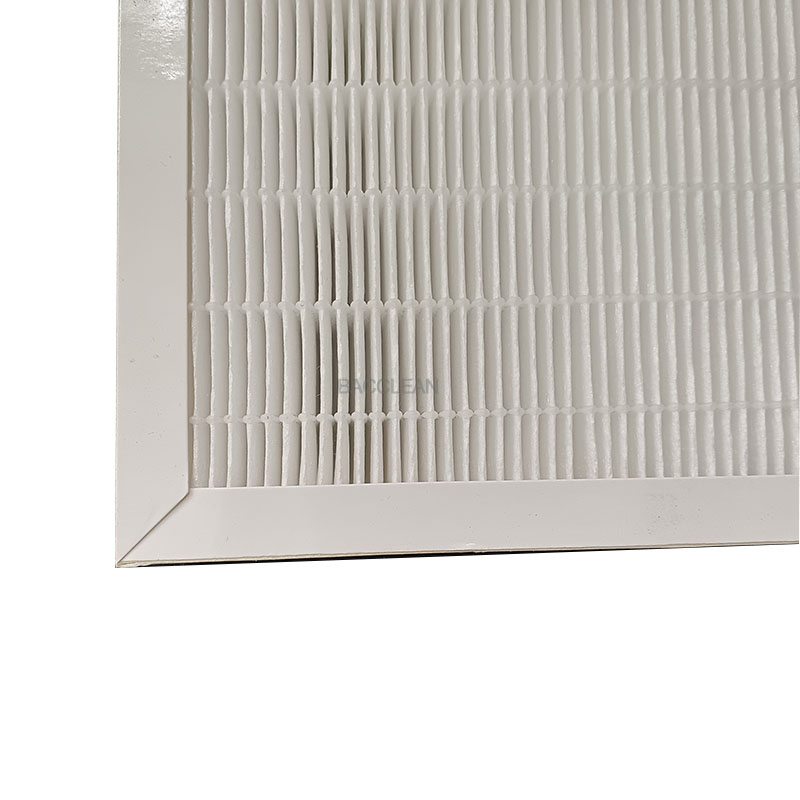

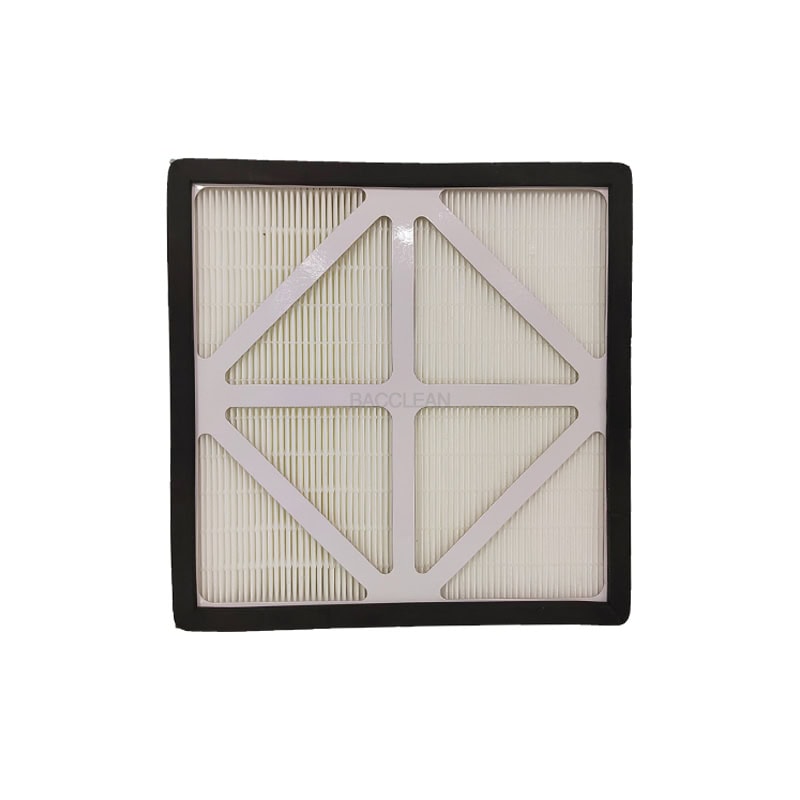

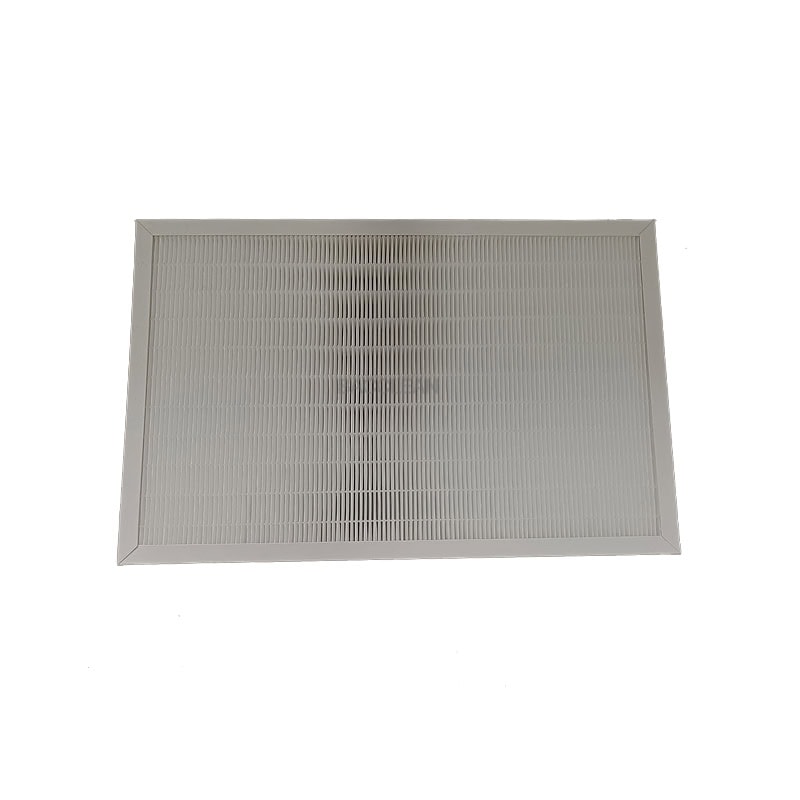

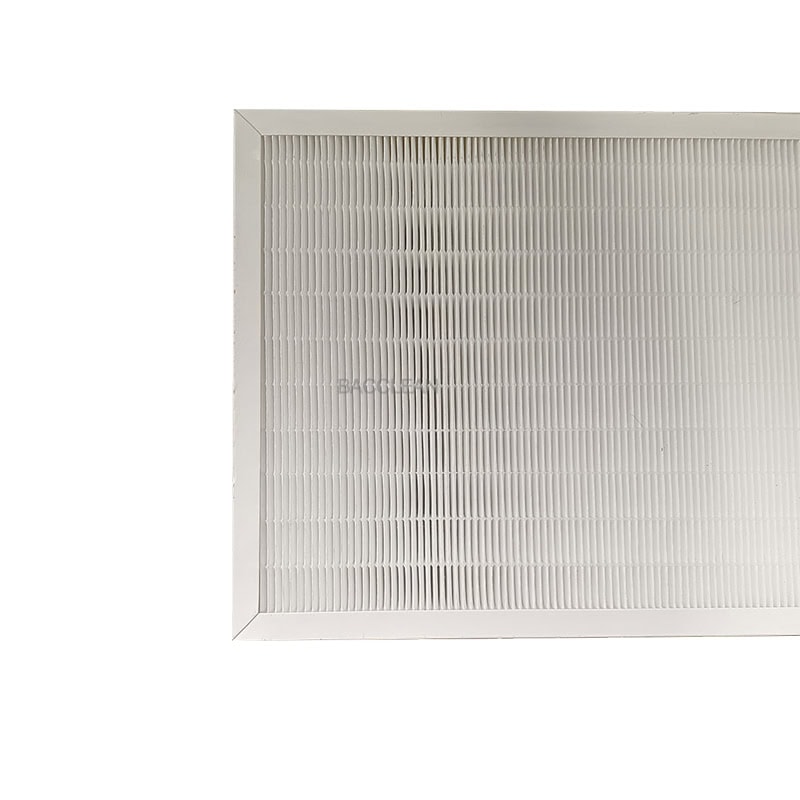

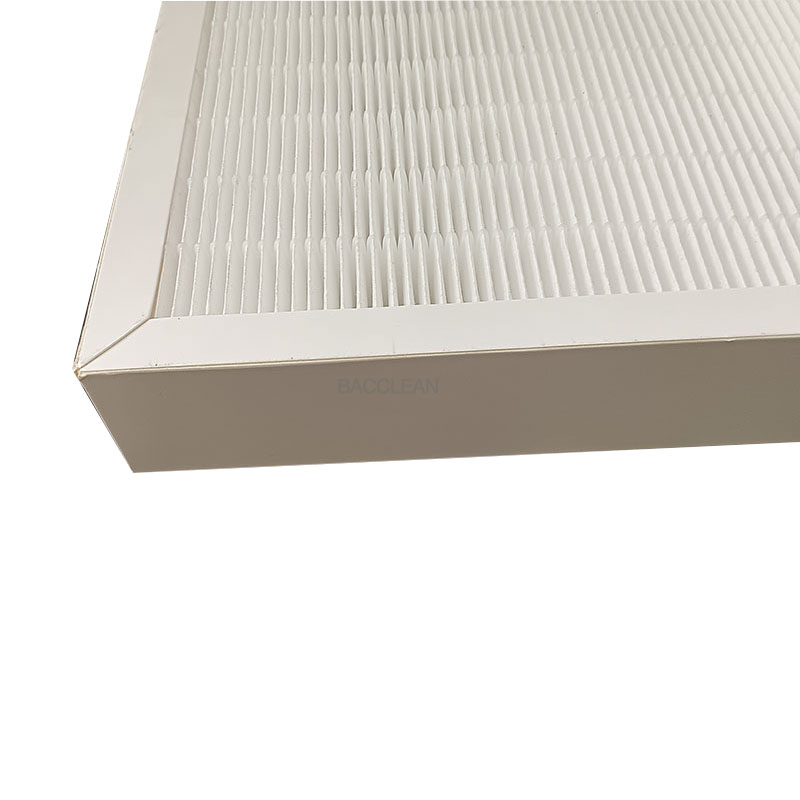

Usually, the media material of the mini-pleat Filter is fiber glass, which separated with hot-melt adhesive. It has good elasticity, no deformation, no falling off, and won’t air leak when it is installed and used. The max operating temperature is up to 70℃. Mini pleat HEPA filter is a kind of HEPA filter, which can remove the finest of particles away. It adopts a special media which plays an important role in capturing both small and large particles with minimum airflow restriction. It also has some advantages such as lighter weight, more compact structure and easier carrying and so on.
Filtration efficiency: 99.97%-99.999% (H13, H14) MPPS
Filter media separation: hot melt adhesive
Laser counting and scanning inspection for each unit before leaving the factory Filter media: glass fiber filter paper MPPS = most penetrable particle size Sealant: polyurethane continuous operating temperature: ≤80C
Sealing pad: polyurethane/closed-cell neoprene strip
Moisture resistance: ≤100% RH
Protective net: steel mesh sprayed, white RAL9016,
MPPS (0.1-0.2um) efficiency of laser scanning and counting for each unit: 85%-99.9999% (EN1822);
|
Model NO |
Overall dimensions(mm) (WxHxD) |
Rated airflow/ initial resistance(m³/h)/(pa) |
Wind speed (m/s) |
Filter area (m²) |
Filtration efficiency |
|
B57-A01 |
484*484*69 |
850/165 |
0.72 |
8.7 |
H13 |
|
B57-A02 |
610*610*69 |
1340/175 |
0.72 |
13.8 |
H13 |
|
B57-A03 |
320*320*90 |
500/225 |
1.36 |
5 |
H13 |
|
B57-A04 |
484*484*90 |
1130/220 |
1.19 |
11.5 |
H13 |
|
B57-A05 |
610*610*90 |
1780/215 |
1.13 |
18.2 |
H13 |
Beside the above standard sizes, it also can according the need to customize any size and efficiency F5,F6,F7,F8,F9,H10, H11,H12,H13 and H14
It is widely used in central air-conditioning and integrated air supply system to protect medium filter, Hepa filter and the system.
