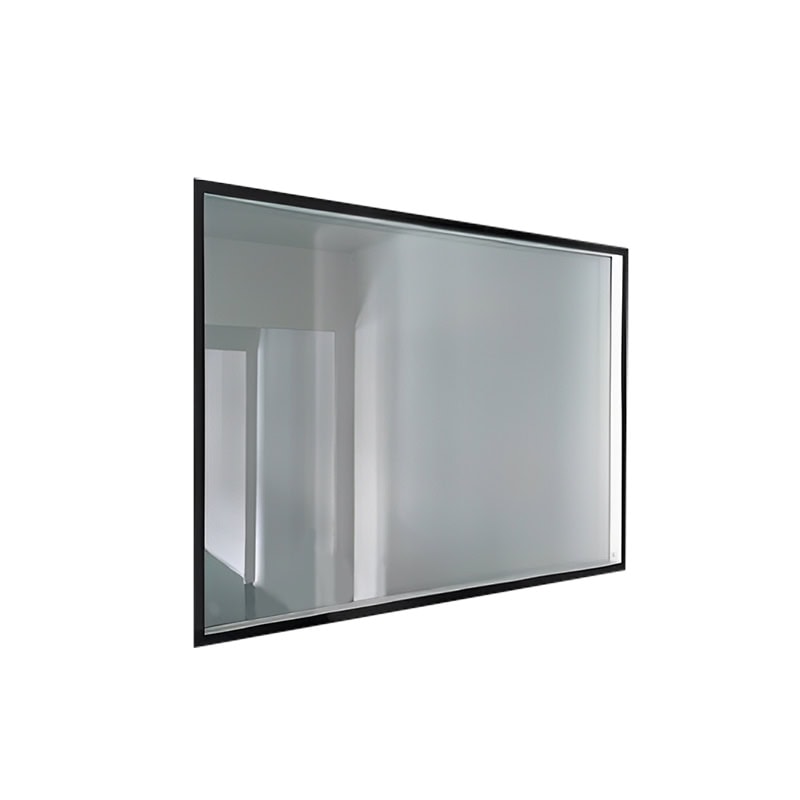

Clean window is mainly made of 5mm double-layer tempered glass, it can be matched with machine-made panels and hand-made panels to create a clean room panel and window plane integration. Its the overall effect is beautiful with good sealing performance, and it has good sound insulation and heat insulation effects. It is a good choice for the new generation of industrial application observation windows in clean spaces.
| Window Thickness | 50mm、75mm、100mm |
| Glass thickness | 5mm/6mm/8mm |
| Window Form | Right angle, outside square, inside round, outside round (inside can be affixed with stainless steel) |
| Glass properties | Toughened glass, fireproof glass |
| Sealing Performance | Sealed on all sides, with built-in desiccant and inert gas in the window. |
Clean window, double-layer hollow 5mm tempered glass, can be matched with machine-made board and hand-made board to create the integration of clean room board and window plane, with beautiful overall effect, good sealing performance, and good sound insulation and heat insulation effect. Clean window can be matched with 50mm hand-made board or machine-made board, breaking the shortcomings of traditional glass window with low precision, no sealing and easy fogging, and is a good choice for the new generation of clean space industrial application observation window. Double-layer clean window is double-layer hollow glass with good sealing performance and thermal insulation performance. According to the shape, it can be divided into rounded edge and square edge purification window; according to the material, it can be divided into: one-time molding frame purification window; aluminum alloy frame purification window; stainless steel frame purification window. Widely used in purification projects, covering medicine, food, cosmetics, and electronic manufacturing industries.
Sound insulation: to meet people’s needs for lighting, viewing, decoration, and environmental protection, general insulating glass can reduce noise by about 30 dB, and inert gas-filled insulating glass can be reduced based on the original 5 dB or so, you can reduce the noise of 80 dB to 45 dB extremely quiet degree.
Good thermal insulation properties: thermal conductivity system K value, a single piece of 5mm glass K value of 5.75kcal/mh ℃, the general insulating glass K value of 1.4-2.9 kcal/mh ℃, for the argon and sulfur fluoride gas-filled insulating glass K value can be reduced to a minimum of 1.19kcal/mh ℃, argon is mainly used to reduce the thermal conductivity of K value, and sulfur fluoride gas is mainly used to Reduce the noise dB value, the two gases can be used alone, can also be mixed and used in a certain proportion. Anti-condensation: In winter, when the temperature difference between indoindoors outdoors is large, single-glass doors and windows will have a condensation phenomenon, while with the use of insulating glass, there is no condensation phenomenon.
The purification double-layer window uses tempered glass with silk screen printing on four sides; the window has built-in desiccant and is filled with inert gas, which has good sealing performance; the window is flush with the wall, flexible to install, and beautiful in appearance; the window thickness can be made according to the wall thickness.
Single-pane cleanroom windows Single-pane cleanroom windows are designed to be installed between cleanrooms and non-cleanrooms with a seamless stainless steel or polypropylene ledge on the opposite side of the glass panel. Dual Pane Cleanroom Windows Dual pane cleanroom windows are designed to be installed between two spaces with flush-mounted, framed, or frameless panes on both sides of the wall.
Shape: rounded edge, square edge purification window;
Material: one-time forming frame purification window; aluminium alloy frame purification window; stainless steel frame purification window；
Cleanroom window are widely used in all levels of hospitals, food factories, clean rooms, cosmetic factories,electronic manufacturing, and other clean spaces.
