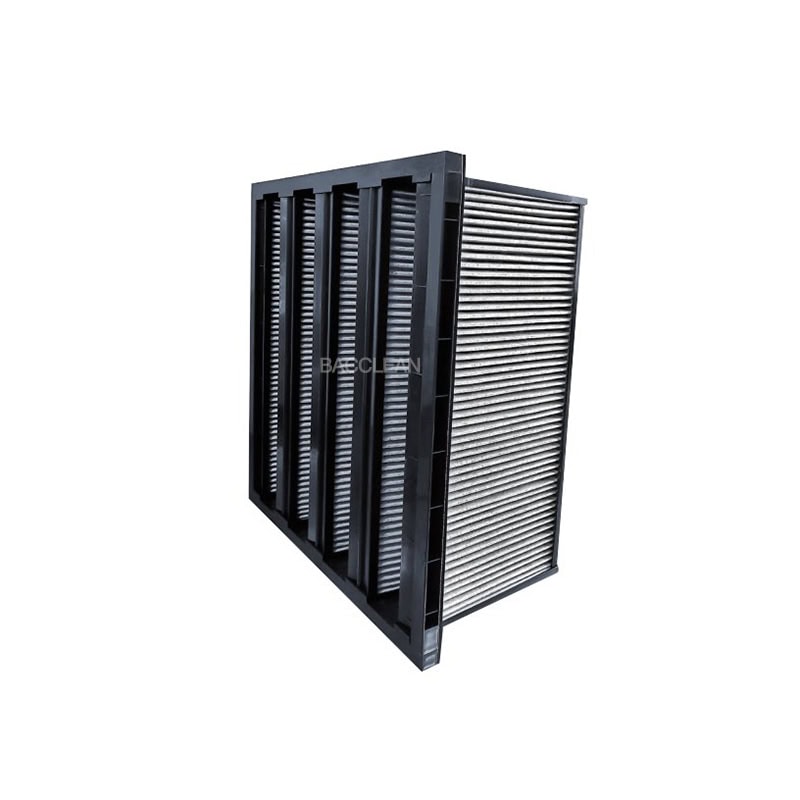

Activated carbon can remove volatile organic compounds, odors, and other gaseous pollutants away from the air because of its special properties. And the V bank Active Carbon filter is much more efficiently when it remove the indoor contaminate and odors at high air flows. It releases millions of small pores in the carbon grain structure by oxygen, and improve the activated carbon’s ability to capture more substances.
|
Product material |
Performance and graph |
|
Frame material : |
ABS plastic frame, galvanized frame, stainless steel frame, etc. |
|
Components : |
consisting of 8-10 activated filters. |
|
Inside： |
25mm thick box contains 4.0 particles of activated carbon, and non-woven fabrics are pasted on both sides. |
|
Product features: |
double-sided spray-coated guardrail support; strong adsorption performance; large filtration area, high carbon content, long service life. |
It is a high-efficiency air filtration device that can remove gaseous pollutants from the air. It is also called an activated carbon filter or a chemical air filter. The difference from a general air filter is that it uses activated carbon as the main filter material, which can absorb and remove harmful substances such as toxic gases, odors, and corrosive gases in the air. Due to the special function of the flat chemical filter, it can effectively improve indoor air quality, protect people’s health and improve product quality.
1. Collection of solvent before recycling or evacuation to outside.
2. Purification of new air before introduction into the air circuit.
3. Economical, long-lasting, solution to many odor problems.
4. V-cells construction for high capacity filter of 292mm depth.
5. Easy to install.
6. Deodorization.
7. Strong surface adsorption ability
8. Ideal solution for clean room recirculation and mini environment.
9. It is made of high quality activated carbon media.
10. Large air flow, low resistance,and long service life.
11. Good effect on odor removal
It is mainly composed of filter material, outer frame and activated carbon. The filter material can be made of activated carbon non-woven fabric, activated carbon particles and other materials, which have the advantages of large adsorption area, strong adsorption performance, high activated carbon content, good ventilation performance, low resistance, long life and low cost. The outer frame is generally made of aluminum frame, stainless steel frame, galvanized frame and other materials, which are corrosion-resistant, high-strength, easy to process and can meet the use requirements of different occasions.
| الطراز |
Overall dimensions(mm) (WxHxD) |
Rated air flow/initial resistance (m’/h)/(pa) |
Pack(V) |
Active carbon net weight ( kg ) |
Odor removal rate (>) |
| BV-B-001 | 287x287x292 | 900/200 | 2V | 7.12 | 95% |
| BV-B-002 | 484x484x292 | 2300/200 | 3V | 18.02 | 95% |
| BV-B-003 | 305x610x292 | 2900/200 | 3V | 22.71 | 95% |
| BV-B-004 | 610x305x292 | 2400/200 | 5V | 18.93 | 95% |
| BV-B-005 | 592x287x292 | 1800/200 | 4V | 14.25 | 95% |
Beside the below standard sizes, it can be customized any size if you need.
| الطراز | Overall dimensions (mm)(W*H*D) | Rated air flow initial resistance (m³/h)(pa) | Pack (V) | Active carbon net weight (㎡) | Different air volume/resistance (m³/h)(pa) | Recommended final resistance(pa) | Odor removal rate (>) | |
| BV-B-001 | 287*287*292 | 900/200 | 2 | 7.12 | 720/160 | 1080/240 | 400 | 95% |
| BV-B-002 | 484*484*292 | 2300/200 | 3 | 18.02 | 1840/160 | 2760/240 | 400 | 95% |
| BV-B-003 | 305*610*292 | 2900/200 | 3 | 22.71 | 2320/160 | 3480/240 | 400 | 95% |
| BV-B-004 | 610*305*292 | 2400/200 | 5 | 18.93 | 1920/160 | 2880/240 | 400 | 95% |
| BV-B-005 | 592*287*292 | 1800/200 | 4 | 14.25 | 1440/160 | 2160/240 | 400 | 95% |
| BV-B-006 | 592*592*292 | 3700/200 | 4 | 29.38 | 2930/160 | 4440/240 | 400 | 95% |
| BV-B-007 | 592*592*292 | 4650/200 | 5 | 36.73 | 3720/160 | 5580/240 | 400 | 95% |
| BV-B-008 | 610*610*292 | 4800/200 | 5 | 37.85 | 3840/160 | 5760/240 | 400 | 95% |
Ideal filtration for high-end healthy commercial air conditioning systems Ventilation and air conditioning systems with limited installation space and no need to filter dust and low-concentration gas pollution at the same time Commercial and civil buildings such as airports, high-end hotels, office buildings Air supply air conditioning systems for museums and libraries.
