These filters are designed to remove a wide range of airborne pollutants, odors, and volatile organic compounds (VOCs), resulting in cleaner and healthier air.
|
Media material : |
activated carbon |
|
Frame material : |
aluminum/ galvanized/cardboard |
|
Aluminum optionalthickness(mm) : |
17/21/25/46/50/69/90/96 |
|
Sealant : |
Laminating glue |
|
Max operating temperature : |
50℃ |
|
Max operating humidity : |
80% |
|
Odor removal rate: |
>70% |

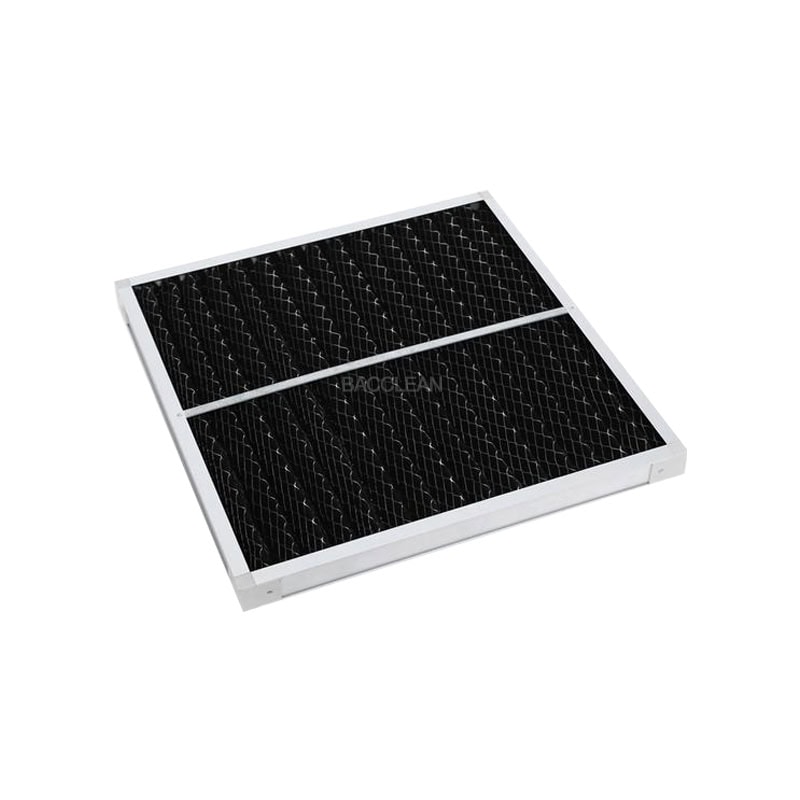

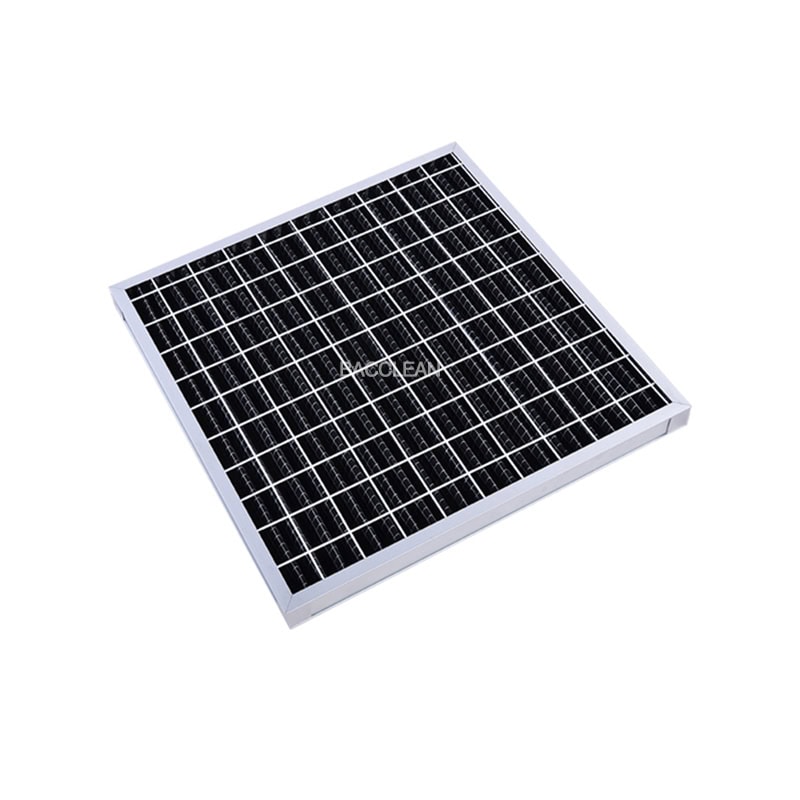

It is a high-efficiency air filtration device that can remove gaseous pollutants from the air. It is also called an activated carbon filter or a chemical air filter. The difference from a general air filter is that it uses activated carbon as the main filter material, which can absorb and remove harmful substances such as toxic gases, odors, and corrosive gases in the air. Due to the special function of the flat chemical filter, it can effectively improve indoor air quality, protect people’s health and improve product quality.
1. Strong surface adsorption ability
2. Ideal solution for clean room recirculation and mini environment.
3. It is made of high quality activated carbon media.
4. Large air flow, low resistance,and long service life.
5. Good effect on odor removal
It is mainly composed of filter material, outer frame and activated carbon. The filter material can be made of activated carbon non-woven fabric, activated carbon particles and other materials, which have the advantages of large adsorption area, strong adsorption performance, high activated carbon content, good ventilation performance, low resistance, long life and low cost. The outer frame is generally made of aluminum frame, stainless steel frame, galvanized frame and other materials, which are corrosion-resistant, high-strength, easy to process and can meet the use requirements of different occasions.
| الطراز |
Overall dimensions (mm) (WxHxD) |
Rated air flow/initial resistance (m/h)/(pa) |
Wind speed( m/s) |
Filter area( m2 ) |
Odor removal Rate |
| B44-001 | 295*295*17 | 180/40 | 0.57 | 0.15 | 70% |
| B44-002 | 592*287*21 | 350/40 | 0.6 | 0.28 | 70% |
| B44-003 | 592*490*21 | 600/40 | 0.57 | 0.48 | 70% |
| B44-004 | 592*592*21 | 700/40 | 0.55 | 0.58 | 70% |
| B44-005 | 592*287*46 | 500/40 | 0.82 | 0.39 | 70% |

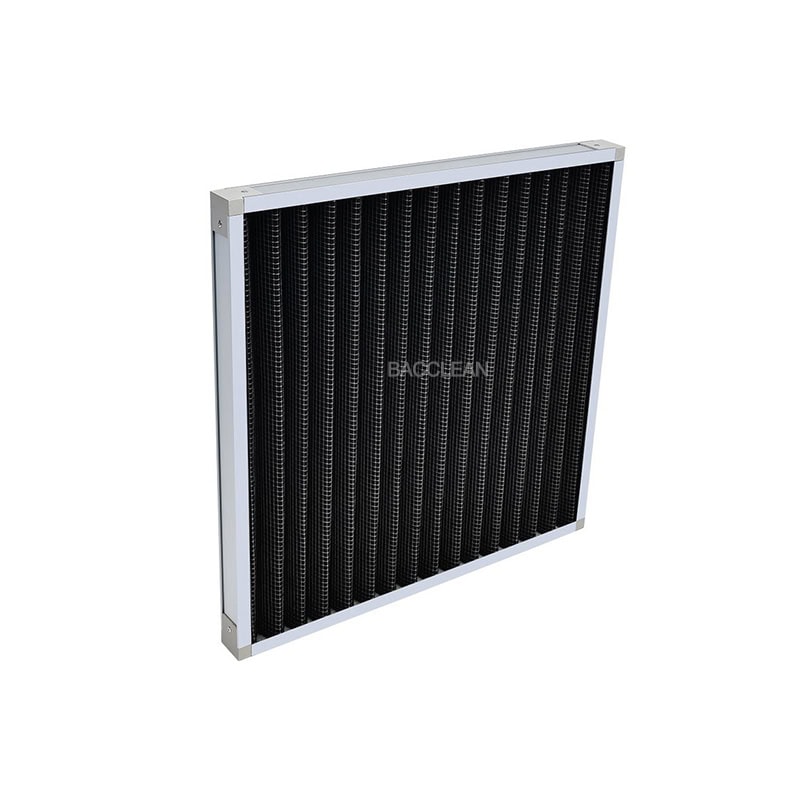

Activated carbon air filters are widely recognized as one of the most effective methods for purifying indoor air. The activated carbon pleated filter is widely used in various air ocnditioning and ventilation systems, it is good at dust removal and deodorization so the in door air quality will be improved greatly.
